XINDA-MB430-8
430 Series Magnetic Stainless-Steel Optical Breadboards, 8 mm
M6 mounting grid, 25 mm pitch and twenty 8 mm size configurations
- Source-labeled 430-series magnetic stainless steel
- M6 threaded mounting holes on a 25 x 25 mm grid
- Twenty source size options explicitly specifying 8 mm thickness
- Mounting thread
- M6
- Hole spacing
- 25 x 25 mm
- Available models
- 24 standard models
Reference price
$39.02 - $5,560.78
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.

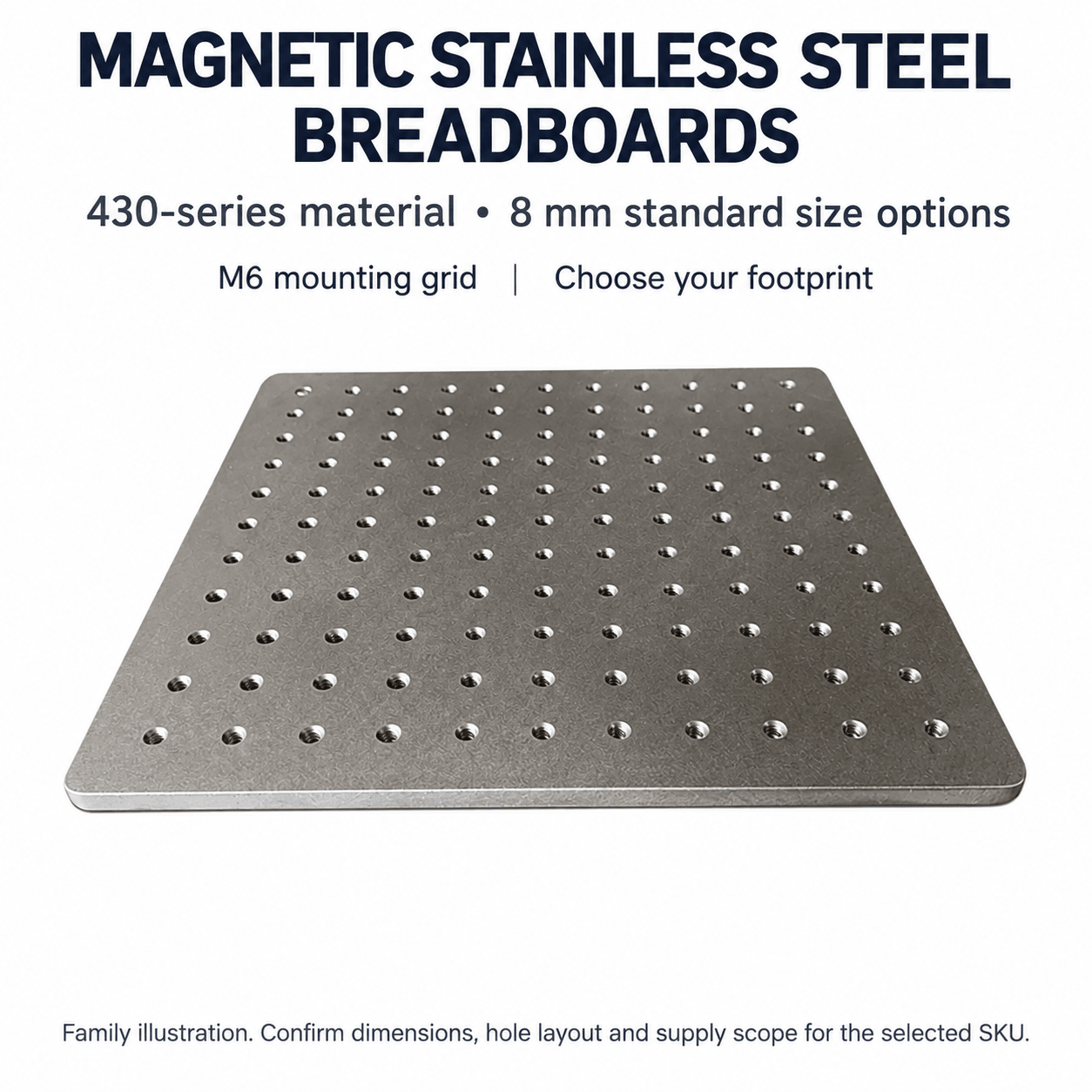

A magnetic stainless steel mounting surface for optical posts, mounts and laboratory fixtures. The source identifies 430-series stainless steel, and the standard size options specify a 8 mm thickness. The original artwork shows M6 tapped holes on a 25 × 25 mm grid with a 25 mm edge margin. Use the selected SKU record and drawing to confirm the footprint and actual hole layout.
Mounting and support
Choose the footprint around your experiment and check support locations, mounting holes and usable thread depth. A pictured magnetic base does not establish holding force, and the material description does not provide numerical magnetic acceptance criteria.
Accessories and supply scope
Handles, leveling feet, rubber pads and custom machining are separate source options. They are not included automatically with a board-size SKU. Keep any accessory pack quantity stated for the selected SKU. Steel plate labels without confirmed thickness or units require a custom drawing review.
Engineering requirements
State the acceptance method if your setup requires controlled flatness, roughness, loading or vibration performance. The collected material contains no configuration-specific test results; appearance and thickness do not establish rated performance.
Requesting a quote
Send the complete SKU, equipment, load distribution, support design, mounting-hole drawing, required accessories and delivery address. Confirm material and dimensional tolerances, usable thread depth, handling, packing and lead time.
Selection checklist
Complete footprint and 8 mm thickness
M6 hole drawing and usable thread depth
Support design and loading
Accessory quantities and supply scope
To be confirmed
Magnetic acceptance values
Flatness and surface roughness
Load rating
Vibration isolation performance
Thread tolerances
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
Typical applications
- Mounting optical adjustment holders and laboratory fixtures
- Arranging posts and sample holders on a bench
- Modular bases for imaging and optical-path prototypes
- RFQs for experimental assemblies requiring a magnetic working surface
Product highlights
- Source-labeled 430-series magnetic stainless steel
- M6 threaded mounting holes on a 25 x 25 mm grid
- Twenty source size options explicitly specifying 8 mm thickness
- Archived source images with separately confirmed accessories
Common specifications
- Mounting thread
- M6
- Hole spacing
- 25 x 25 mm
- Magnetic material
- Yes (source-labeled 430-series stainless steel)
