Main product image1 / 2

XINDA-PF-MB-001

6061 Aluminum Solid Optical Breadboards with an M6 Grid

Black-anodized boards on a 25 mm x 25 mm grid, selected from model-specific drawings

Source-labeled solid 6061 aluminum construction
M6 threaded mounting holes on a 25 mm x 25 mm grid
Black-anodized surface with source-documented 13 mm models

Available models: 25 standard models
Lead time: Confirmed after model and quantity review
Purchase method: RFQ by model

Reference price

$284.31 - $6,418.73

Select a model to view availability.

Select models to request a quote

View 25 models

Not sure which model? Get selection help

Models and availability

25 models. Select one or more models for a combined RFQ.

Request the selected models from the action bar without returning to the top.

Select up to 50 models per request

Model	Length	Width	Thickness	Lead time	Reference price
1000 x 1500 x 13 mm solid aluminum optical breadboard 1000 x 1500 x 13 mm solid aluminum optical breadboard RFQ	1500 mm	1000 mm	13 mm	2–7 days	$6,418.73
900 x 1200 x 13 mm solid aluminum optical breadboard 900 x 1200 x 13 mm solid aluminum optical breadboard RFQ	1200 mm	900 mm	13 mm	2–7 days	$4,610.29
900 x 900 x 13 mm solid aluminum optical breadboard 900 x 900 x 13 mm solid aluminum optical breadboard RFQ	900 mm	900 mm	13 mm	2–7 days	$3,352.63
1200 x 1200 x 13 mm solid aluminum optical breadboard 1200 x 1200 x 13 mm solid aluminum optical breadboard RFQ	1200 mm	1200 mm	13 mm	2–7 days	$6,211.35
800 x 1200 x 13 mm solid aluminum optical breadboard 800 x 1200 x 13 mm solid aluminum optical breadboard RFQ	1200 mm	800 mm	13 mm	2–7 days	$5,096.41
800 x 800 x 13 mm solid aluminum optical breadboard 800 x 800 x 13 mm solid aluminum optical breadboard RFQ	800 mm	800 mm	13 mm	2–7 days	$3,025.96
700 x 700 x 13 mm solid aluminum optical breadboard 700 x 700 x 13 mm solid aluminum optical breadboard RFQ	700 mm	700 mm	13 mm	2–7 days	$2,197.55
600 x 1200 x 13 mm solid aluminum optical breadboard 600 x 1200 x 13 mm solid aluminum optical breadboard RFQ	1200 mm	600 mm	13 mm	2–7 days	$2,937.88
600 x 900 x 13 mm solid aluminum optical breadboard 600 x 900 x 13 mm solid aluminum optical breadboard RFQ	900 mm	600 mm	13 mm	2–7 days	$2,109.47
600 x 600 x 13 mm solid aluminum optical breadboard 600 x 600 x 13 mm solid aluminum optical breadboard RFQ	600 mm	600 mm	13 mm	2–7 days	$1,465.04
500 x 1000 x 13 mm solid aluminum optical breadboard 500 x 1000 x 13 mm solid aluminum optical breadboard RFQ	1000 mm	500 mm	13 mm	2–7 days	$2,141.81
500 x 500 x 13 mm solid aluminum optical breadboard 500 x 500 x 13 mm solid aluminum optical breadboard RFQ	500 mm	500 mm	13 mm	2–7 days	$1,226.44

1000 x 1500 x 13 mm solid aluminum optical breadboard
RFQ
1000 x 1500 x 13 mm solid aluminum optical breadboard
Length
1500 mm
Width
1000 mm
Thickness
13 mm
Lead time
2–7 days
Reference price
$6,418.73
900 x 1200 x 13 mm solid aluminum optical breadboard
RFQ
900 x 1200 x 13 mm solid aluminum optical breadboard
Length
1200 mm
Width
900 mm
Thickness
13 mm
Lead time
2–7 days
Reference price
$4,610.29
900 x 900 x 13 mm solid aluminum optical breadboard
RFQ
900 x 900 x 13 mm solid aluminum optical breadboard
Length
900 mm
Width
900 mm
Thickness
13 mm
Lead time
2–7 days
Reference price
$3,352.63
1200 x 1200 x 13 mm solid aluminum optical breadboard
RFQ
1200 x 1200 x 13 mm solid aluminum optical breadboard
Length
1200 mm
Width
1200 mm
Thickness
13 mm
Lead time
2–7 days
Reference price
$6,211.35
800 x 1200 x 13 mm solid aluminum optical breadboard
RFQ
800 x 1200 x 13 mm solid aluminum optical breadboard
Length
1200 mm
Width
800 mm
Thickness
13 mm
Lead time
2–7 days
Reference price
$5,096.41
800 x 800 x 13 mm solid aluminum optical breadboard
RFQ
800 x 800 x 13 mm solid aluminum optical breadboard
Length
800 mm
Width
800 mm
Thickness
13 mm
Lead time
2–7 days
Reference price
$3,025.96
700 x 700 x 13 mm solid aluminum optical breadboard
RFQ
700 x 700 x 13 mm solid aluminum optical breadboard
Length
700 mm
Width
700 mm
Thickness
13 mm
Lead time
2–7 days
Reference price
$2,197.55
600 x 1200 x 13 mm solid aluminum optical breadboard
RFQ
600 x 1200 x 13 mm solid aluminum optical breadboard
Length
1200 mm
Width
600 mm
Thickness
13 mm
Lead time
2–7 days
Reference price
$2,937.88
600 x 900 x 13 mm solid aluminum optical breadboard
RFQ
600 x 900 x 13 mm solid aluminum optical breadboard
Length
900 mm
Width
600 mm
Thickness
13 mm
Lead time
2–7 days
Reference price
$2,109.47
600 x 600 x 13 mm solid aluminum optical breadboard
RFQ
600 x 600 x 13 mm solid aluminum optical breadboard
Length
600 mm
Width
600 mm
Thickness
13 mm
Lead time
2–7 days
Reference price
$1,465.04
500 x 1000 x 13 mm solid aluminum optical breadboard
RFQ
500 x 1000 x 13 mm solid aluminum optical breadboard
Length
1000 mm
Width
500 mm
Thickness
13 mm
Lead time
2–7 days
Reference price
$2,141.81
500 x 500 x 13 mm solid aluminum optical breadboard
RFQ
500 x 500 x 13 mm solid aluminum optical breadboard
Length
500 mm
Width
500 mm
Thickness
13 mm
Lead time
2–7 days
Reference price
$1,226.44

Showing 12 of 25 models

Product overview and selection guidance

Product-family scope, interfaces, selection limits, and supply notes.

A solid optical mounting board made from source-listed 6061 aluminum with a black-anodized finish. The working surface uses M6 tapped holes on a 25 × 25 mm grid for arranging optical hardware, instruments and laboratory fixtures. Each SKU retains its own footprint and thickness. Weight or flatness quoted for one size must not be applied to the whole range.

Choosing a size and hole layout

Start with the equipment footprint, mounting points and support arrangement, then check the complete board dimensions and thickness. Edge margins, hole counts, counterbores and corner details may vary. Use the drawing for the selected configuration when designing the installation.

Material and finish

The source identifies 6061 aluminum. A magnetic category label or an installation photograph does not establish magnetic holding capability for this board. The black finish also does not establish a coating thickness or optical reflectance specification.

Accessories and installation

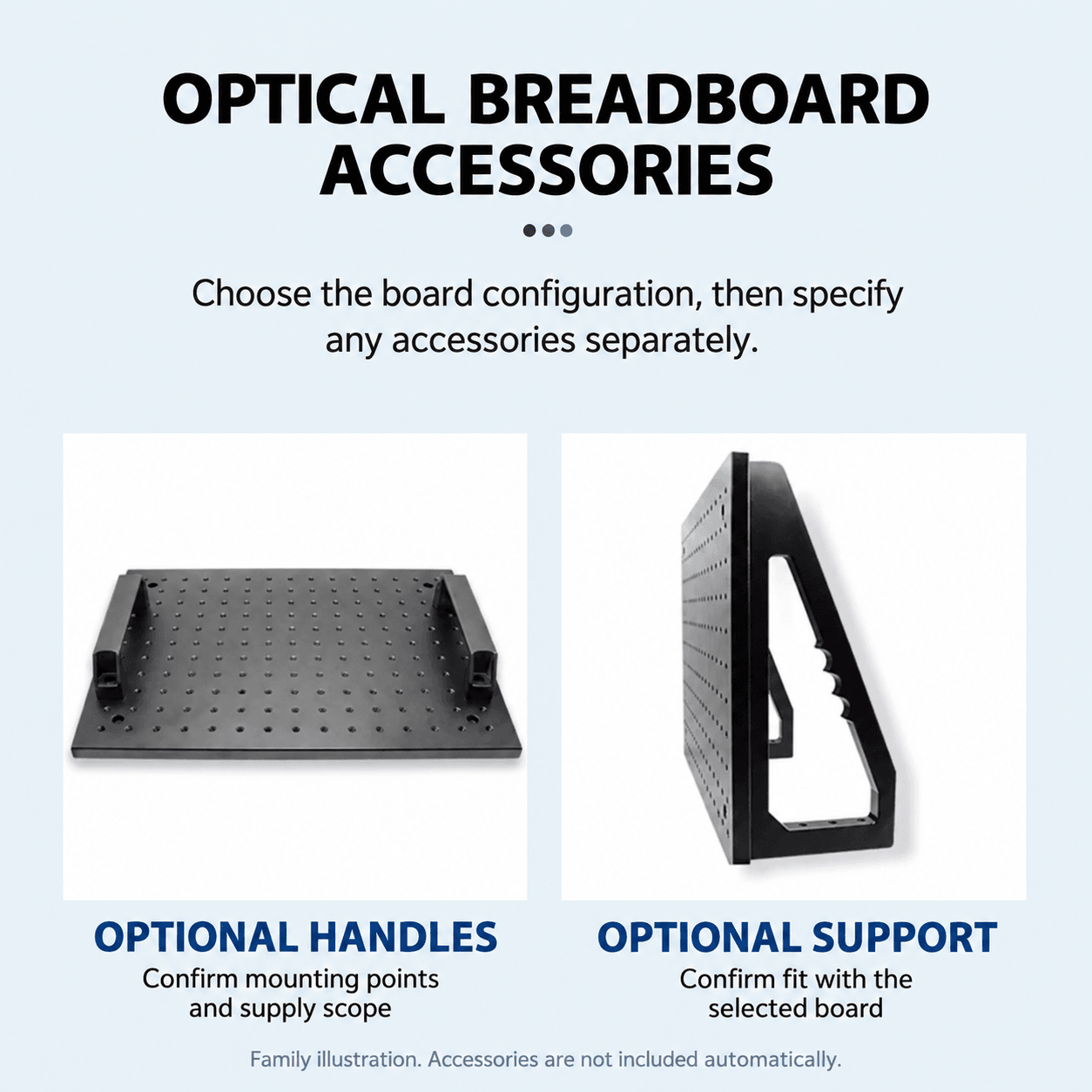

The original artwork shows optional handles and a triangular support. Confirm availability, attachment points and fit with the selected board. These accessories are not included automatically in a board SKU. Ask the supplier to confirm handling, support and loading requirements for large boards.

Quote and acceptance requirements

Provide the footprint, thickness, hole layout, support design, loading and operating environment. If flatness matters, define the datum, inspected area and installed support condition. Values printed on an individual source card apply only to that configuration; do not interpolate them for another SKU.

Selection checklist

Length, width and thickness

Working and attachment hole drawings

Support locations and load distribution

Handles, supports and other accessories

Flatness acceptance method

To be confirmed

General load rating

Flatness and weight for each SKU

Thread depth and tolerances

Anodizing thickness

Vibration performance

Procurement and technical information

Select a model so we can confirm pricing, availability, lead time, and required documents.

Procurement method

Formal RFQ by model

Lead time

Confirmed after model and quantity review

Technical documents

Request drawings and specifications with your RFQ

Typical applications

Modular mounting of optical holders, stages, and laboratory hardware
Portable bases for imaging, inspection, teaching, and prototype beamlines
Horizontal or inclined fixtures using separately confirmed handles or supports
Custom board RFQs defined by envelope, grid, material, and thickness

Product highlights

Source-labeled solid 6061 aluminum construction
M6 threaded mounting holes on a 25 mm x 25 mm grid
Black-anodized surface with source-documented 13 mm models
Twenty-one archived variant cards across multiple tabletop sizes
