Drawing-Based Custom Metal Component Machining
Machining scope evaluated against supplied drawings
- Drawing-based RFQ without fixed factory models
- Source machining examples retained
- Material, tolerances and delivery scope confirmed by quotation
- Available models
- 1 standard models
- Lead time
- Confirmed after model and quantity review
- Purchase method
- RFQ by model
Pricing and availability
Select a specific model and quantity so we can confirm price, lead time, and commercial terms.
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.

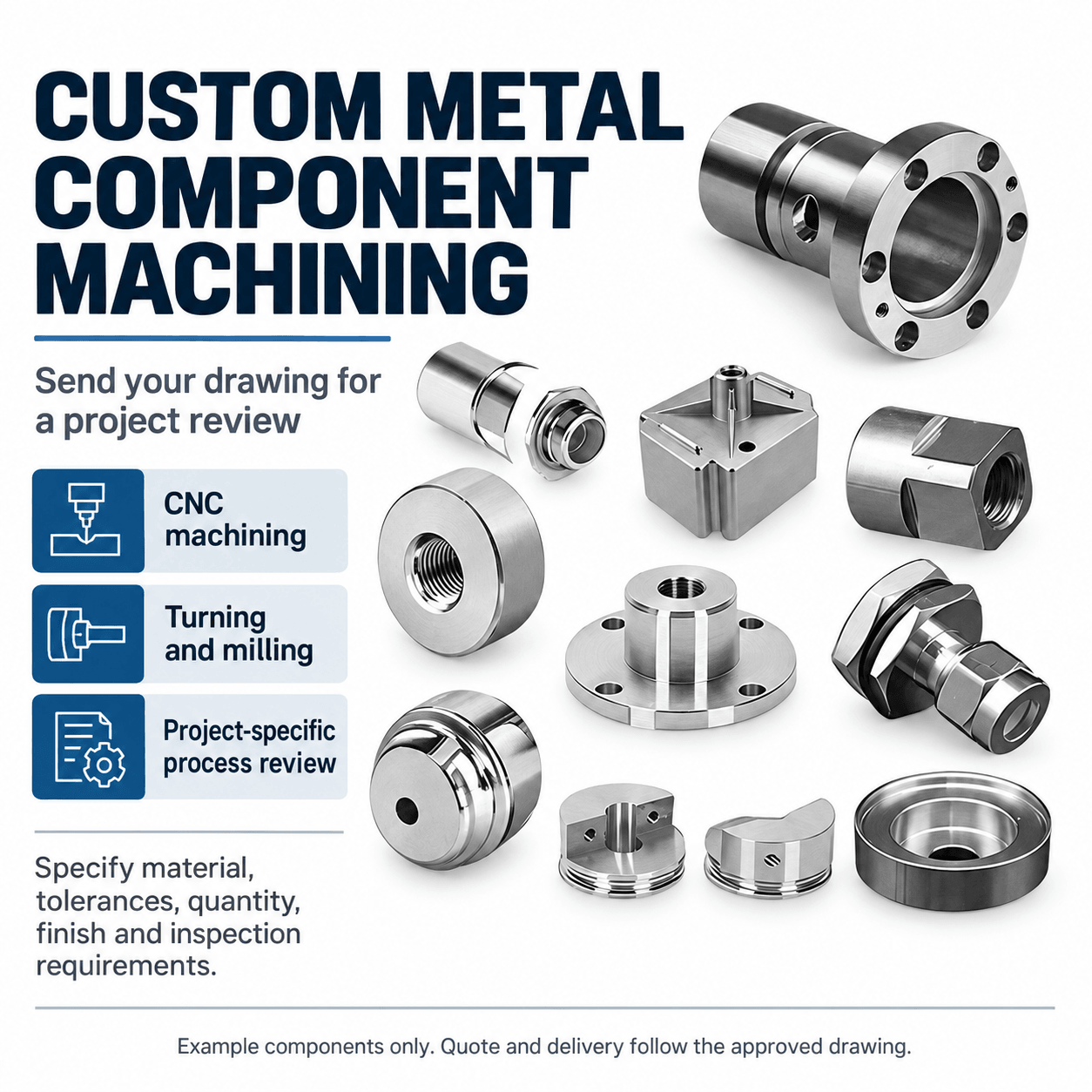

A drawing-based machining service for metal components. The source describes CNC machining, turn-mill work, CNC turning and four- or five-axis machining, illustrated by flanges, sleeves and other example parts. The supplier assesses the process and manufacturability for your project; an example part is not a substitute for the required drawing.
Submitting the job
Provide a 2D or 3D drawing, material and grade, datums, dimensional and geometric tolerances, quantity, finish and inspection requirements. Define critical fits, deburring, cleanliness and assembly requirements on the drawing or purchase specification.
Agreeing the process and scope
Confirm whether material sourcing, tooling, machining, finishing, inspection and packing are included. The example components are not supplied as a set. Agree mating products, transport and installation services separately.
Quote and acceptance
After reviewing the drawing, the supplier confirms the process, quote, lead time and delivery list. Specify any material certificates, dimensional reports or special inspection, including the standard, record contents and acceptance procedure. Precision or certification absent from the source is not an established capability commitment.
Service boundaries
This SKU is a machining-service quote request, not a fixed finished-part model, stocked size or standard price. The approved drawing and acceptance terms define the actual parts. Example imagery is for discussing machining forms only.
Selection checklist
Drawing, datums and complete tolerances
Material and quantity
Finish, inspection and record requirements
Machining and delivery scope
To be confirmed
Project-specific manufacturability
Final accuracy and inspection method
Materials and finishing scope
Price and lead time
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
