XINDA-OM-AS-001
DXPS 303 Stainless Steel Flat-Tip Fine Adjustment Screws
Source-verified M4, M5, and M6 x 0.25 examples for model- and length-specific RFQs
- Flat contact tip for face-driven adjustment mechanisms
- 303 stainless steel identified in XINDA source artwork
- Source-verified M4, M5, and M6 x 0.25 examples
- Available models
- 42 standard models
- Lead time
- Confirmed after model and quantity review
- Purchase method
- RFQ by model
Reference price
$15.61 - $158.32
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.
Flat-tip fine-thread screws for optomechanical adjustment mechanisms. The original artwork identifies 303 stainless steel and shows M4 × 0.25, M5 × 0.25 and M6 × 0.25 examples. Choose the contact tip, mating thread and length together. Keep the complete DXPS model for each SKU; unlisted engineering dimensions are not decoded from the model number.
Contact and mating parts
Define the driven surface, its material and the required contact arrangement. Flat and ball tips are different contact styles and are not interchangeable simply because the threads match. Ask the supplier to confirm tip geometry, mating internal thread, usable engagement and installation space.
Thread and length
Source images show example diameters and length ranges, but a range illustration is not an individual SKU drawing. Put the complete model and confirmed specifications on the purchase document. Confirm any undocumented pitch, thread tolerance or length datum separately.
Adjustment and acceptance
Check the full usable stroke with the intended nut or bushing for binding or play. Nominal thread pitch does not establish system positioning accuracy or repeatability. The source provides no load, torque, backlash or service-life rating; define acceptance requirements for the actual mechanism.
Supply scope

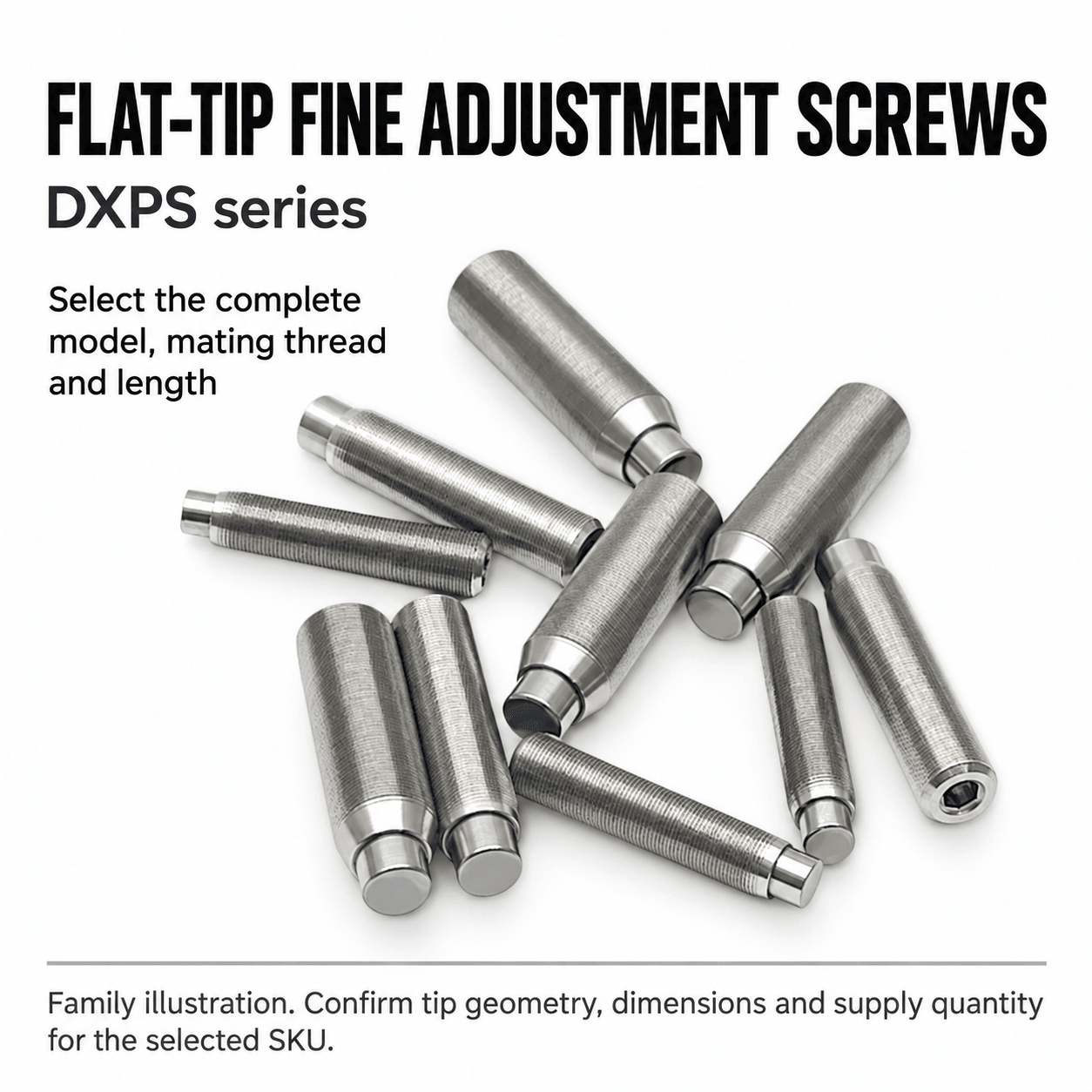

The photograph shows several family examples, not a mixed set supplied with each SKU. State quantity, complete model, drive method, contact requirement, lubrication and cleanliness in the quote request. Mating nuts, bushings and optical mounts are not included automatically.
Selection checklist
Complete DXPS model
Contact tip and driven surface
Thread, length and engagement
Mating thread and drive tool
Quantity and acceptance requirements
To be confirmed
Undocumented length and thread tolerances
Permitted load and torque
Backlash, service life and positioning performance
Material certification and lubrication requirements
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
Typical applications
- Manual actuation and preload in optical mounts
- Fine position setting in stages, fixtures, and laboratory tooling
- OEM optomechanical assemblies requiring a flat contact tip
- Custom adjuster RFQs defined by thread, length, and tip geometry
Product highlights
- Flat contact tip for face-driven adjustment mechanisms
- 303 stainless steel identified in XINDA source artwork
- Source-verified M4, M5, and M6 x 0.25 examples
- Individual DXPS images pair model codes with overall lengths
