Flat Optical Baffle Panels with Joining Options
Nineteen panel sizes and 7 flat or corner joining-strip options
- All 26 standard source configurations retained
- Flat and right-angle joining choices shown in source images
- Original size labels preserved; units confirmed through RFQ
- Available models
- 26 standard models
- Lead time
- Confirmed after model and quantity review
- Purchase method
- RFQ by model
Reference price
$13.94 - $158.88
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.
The source identifies aluminum-alloy baffle panels with flat and right-angle joining-strip options. Photographs show bent mounting flanges, side holes and straight panel joining for the required baffle arrangement. The 26 options give height and length labels without dimensional units. No individual SKU images or engineering drawing are available; confirm dimensions and supplied contents.
Panels and joining strips
Nineteen panel options are distinguished by height and length labels. Flat joining strips are listed at height labels 200, 300 and 400; right-angle strips at 200, 300, 400 and 500. This source has no height-500 flat strip, so one is not added from another range. Strips are separate options, without a stated pack count or screw quantity. The front/back two-piece supply description from another source is not transferred.
Mounting arrangement

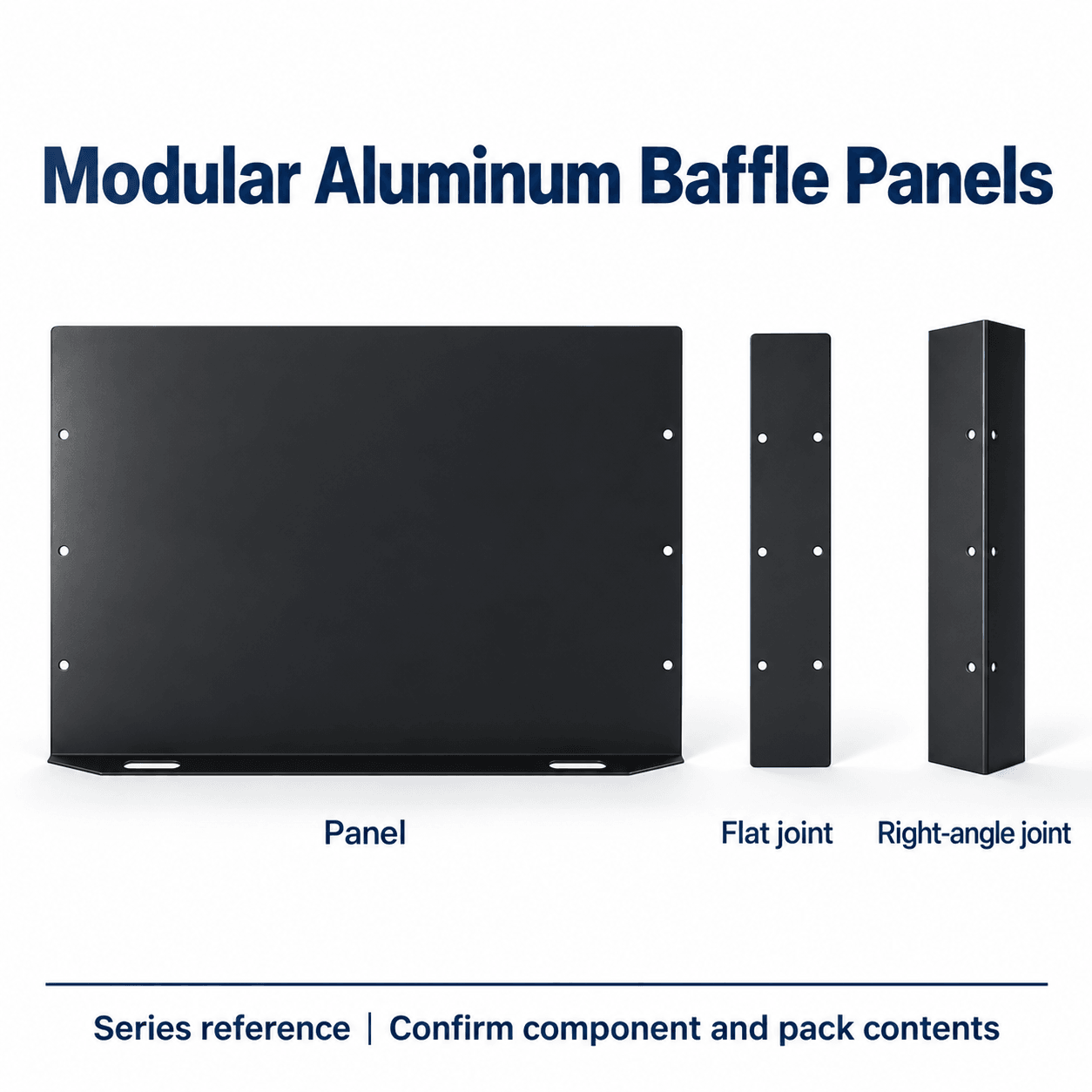

Series photographs show bent bottom flanges, elongated mounting slots and side holes. The main image shows straight joining, while the third image identifies flat and right-angle strips. Hole diameter, spacing, slot width, threads and thickness are unspecified; fit with a particular bench or M6 screws is not established. The pictured breadboard and screws are not automatically supplied with every SKU.
Material and joining arrangement
The main image identifies aluminum-alloy panels and promotes high strength without a grade, thickness, numerical strength, loading or coating specification. Panel wording does not independently establish strip material. Flat and right-angle strip shapes are identified photographically; confirm the actual piece count and joint details.
Operating limits
A black appearance and protective-baffle product name do not establish material grade, coating, optical absorptance or a laser protection rating. Wavelengths, power limits, damage threshold, optical density and protective certification are unspecified. Confirm the structure for the required coverage and actual laser conditions, together with material, accessories, dimensional units and any custom requirements.
Selection checklist
Panel, flat strip or right-angle strip
Source size labels and actual units
Holes, slots, bench and fastener fit
Pack count and accessories
Materials and actual laser conditions
To be confirmed
Dimensional units, thickness, holes, slots and tolerances
Aluminum grade, joining-strip material and finish
Screw count, torque, loading and supply contents
Laser operating range, damage threshold and protective certification
