GCC-1023 Protected Gold Mirrors

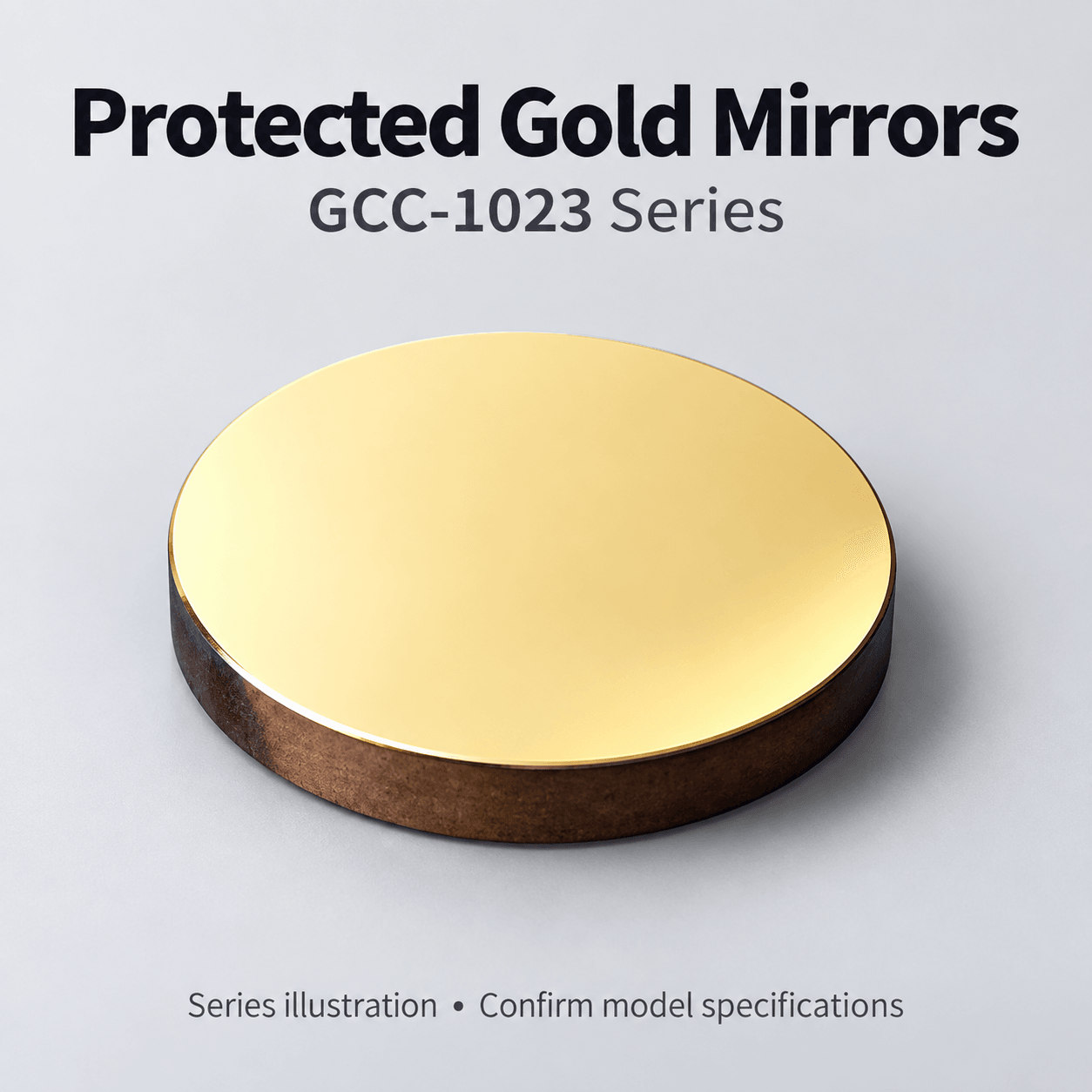

The GCC-1023 series includes three protected gold mirror options: GCC-102304, GCC-102302 and GCC-102301. Their individual source cards show diameter markings of φ40.0, φ25.4 and φ20.0 respectively, without a stated unit. This catalog preserves those markings rather than filling in a presumed dimension. Shared photography shows round gold-faced optics, so the English image is a representative series illustration rather than evidence of pack quantity, substrate or exact size. Selection should begin with the complete model identity and continue with confirmed dimensional, spectral and mounting information. Reflectance, operating band and laser handling limits require model-specific supplier documentation before suitability can be assessed.

Models and diameter markings

The individual SKU cards identify GCC-102304 as φ40.0, GCC-102302 as φ25.4 and GCC-102301 as φ20.0. All three are labeled protected gold mirrors. The diameter symbol is explicit, but its unit is absent; neither millimeters nor clear aperture is assumed. The overall title mentions GCC-102301 while other main images name different options. Model identities are matched to individual cards rather than assigned from the overall title.

Coating and optical data

Protected gold is the coating category stated in the source, not evidence that the entire optic is made of gold. Substrate, protective-layer material, operating band, reflectance, incidence angle and polarization conditions are unspecified. A gold-colored appearance or another product is not used to supply an infrared band, an efficiency guarantee or a laser damage threshold. Obtain model-specific spectral data and measurement conditions.

Photography and mechanical fit

All three options reuse photography showing three circular optics with gold faces and substantial dark brown edges. The displayed count does not establish a three-piece kit, and image proportions do not verify model dimensions. Thickness, surface figure, parallelism, dimensional tolerances, rear construction, clamping interfaces and included holders require confirmation. These circular flat mirrors are not described as off-axis parabolic mirrors.

Selection, custom sizes and delivery

The source offers custom sizes, without establishing additional stocked SKUs or guaranteeing every requested size. Confirm the complete model, diameter unit, mounting requirements and optical test data before deciding on fit. The source lists 2–7 days for dispatch. Check current stock, quantity, accessories, custom-size feasibility, cleaning instructions and actual delivery with the supplier.

Selection checklist

Complete model and card diameter marking

Diameter unit, thickness and mounting drawing

Operating band, reflectance, angle and polarization

Quantity, accessories, custom sizes and delivery

To be confirmed

Diameter unit, clear aperture, thickness and tolerances

Substrate, protective layer and spectral data

Reflectance, incidence angle, polarization and damage threshold

Cleaning method, quantity, accessories and actual delivery
