XINDA-OC-FI-002
GCC-2022 Ø12.7 mm Mounted Narrowband Filters
Eight source-mapped wavelength options at 340, 405, 450, 510, 546, 578, 630, and 690 nm
- Mounted narrowband-filter family
- Every source record carries a mounted 12.7 mm label
- Eight full models mapped to individual wavelength labels
- Available models
- 8 standard models
- Lead time
- Confirmed after model and quantity review
- Purchase method
- RFQ by model
Reference price
$228.56 - $320.55
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.

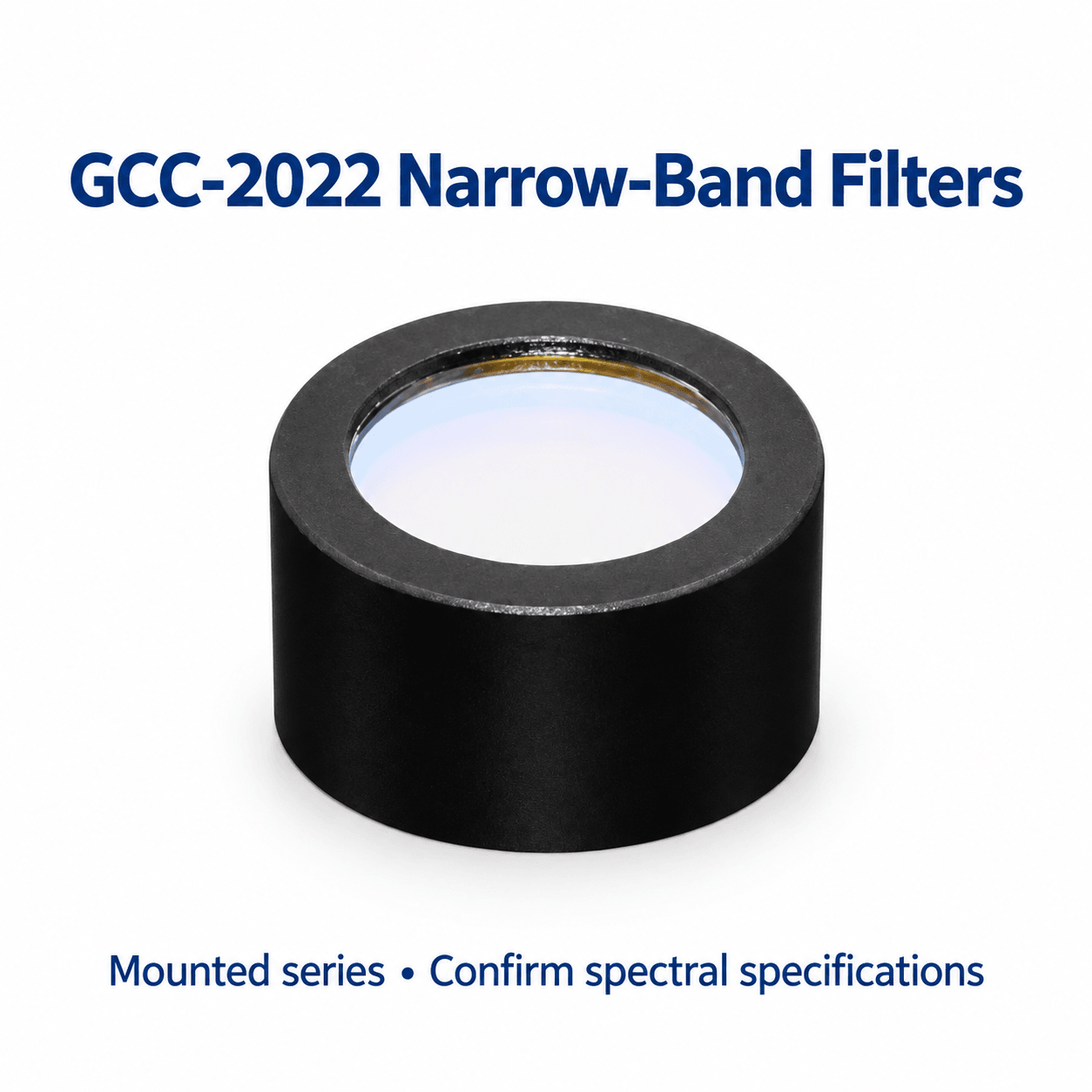

Eight mounted narrow-band filters are listed by complete model and wavelength labels from 340 to 690 nm. Each card explicitly states Φ12.7 mm. Photographs show a deep black cylindrical cell with a recessed optical surface. Bandwidth and full spectral data are not supplied, so the descriptions preserve verifiable labels without turning color or model numbers into performance guarantees.
Models and wavelength labels
GCC-202201/202202/202203/202205/202206/202207/202208/202209 carry source wavelength labels of 340/405/450/510/546/578/630/690 nm respectively. GCC-202204 is not listed as a sales option and is not added. The labels provide no center-wavelength definition or tolerance; no ± value is inferred.
Mounted size and installation
Every card explicitly labels the mounted filter Φ12.7 mm, without defining whether this is the optic diameter, cell diameter or clear aperture. Photographs show a relatively deep black cylindrical cell with an optic seated near the top. Overall height, clear aperture, threads, tolerances and clamping surfaces are unspecified. The Φ12.7 mm label alone does not establish a mounting bore or compatibility with a half-inch holder.
Narrow-band performance and operating conditions
The source identifies narrow-band filters but gives no FWHM, peak transmission, blocking range, optical density, secondary passbands or spectral curves. Incidence angle, polarization, temperature and batch tolerance are unspecified. Reflected color in a photograph does not establish transmitted color or bandwidth. Substrate, coating and laser damage threshold are absent; obtain data for the selected model.
Supply and custom specifications
Custom sizes are promoted without a separate custom SKU; agree dimensional and spectral requirements before requesting a quote. Photographs show one mounted filter and do not establish included holders, tools or pack quantity. Confirm delivery, quantity, cleaning method and installation requirements separately. No formal engineering drawing or test certificate is supplied.
Selection checklist
Complete model and wavelength label
Dimensional datum and mounting for Φ12.7 mm
Bandwidth, transmission and blocking data
Incidence angle, polarization, power and delivery
To be confirmed
Diameter datum, height, tolerance and clear aperture
Wavelength definition, tolerance and FWHM
Transmission, optical density and blocking range
Substrate, coating, damage threshold and quantity
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
Typical applications
- Spectral-line selection and stray-light rejection
- Fluorescence, illumination, and imaging channel isolation
- Detector front ends and laboratory spectroscopy
- Custom center-wavelength, bandwidth, and housing RFQs
Product highlights
- Mounted narrowband-filter family
- Every source record carries a mounted 12.7 mm label
- Eight full models mapped to individual wavelength labels
- Options span ultraviolet through visible red source labels
