XINDA-OC-FI-001
GCC-3001 Mounted Longpass Optical Filters
Thirteen source-verified wavelength options from 280 to 720 nm in a frame labeled 25.4 diameter
- Mounted longpass filter family for spectral edge selection
- Thirteen model-to-wavelength labels reviewed against XINDA artwork
- Source-labeled 25.4 diameter; mechanical definition remains to be confirmed
- Available models
- 13 standard models
- Lead time
- Confirmed after model and quantity review
- Purchase method
- RFQ by model
Reference price
$83.62
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.
Thirteen mounted filters are listed with long-pass option labels spanning 280 to 720 nm. Each card gives Φ25.4 without units or a defined measurement datum. The general heading conflicts with the specific filter-type text and requires supplier confirmation. The descriptions record the model, wavelength label and visible construction without inventing spectral performance.
Models and wavelength labels
GCC-300111/112/113/114/115/116/117/118/119/120/121/122/123 are labeled 280/380/400/420/450/510/550/600/650/670/685/700/720 nm respectively. These are source wavelength labels. No transmission level defining the edge, tolerance or measurement conditions is given.
Filter type and conflicting headings
The main artwork and SKU-card headings say GCC-2040/1 notch filters, while the individual model and specification lines identify GCC-3001 long-pass filters. These descriptions follow the specific option text and retain the conflicting heading for confirmation. They do not establish notch-filter performance or infer a spectrum from photographs.
Size, rim and mounting

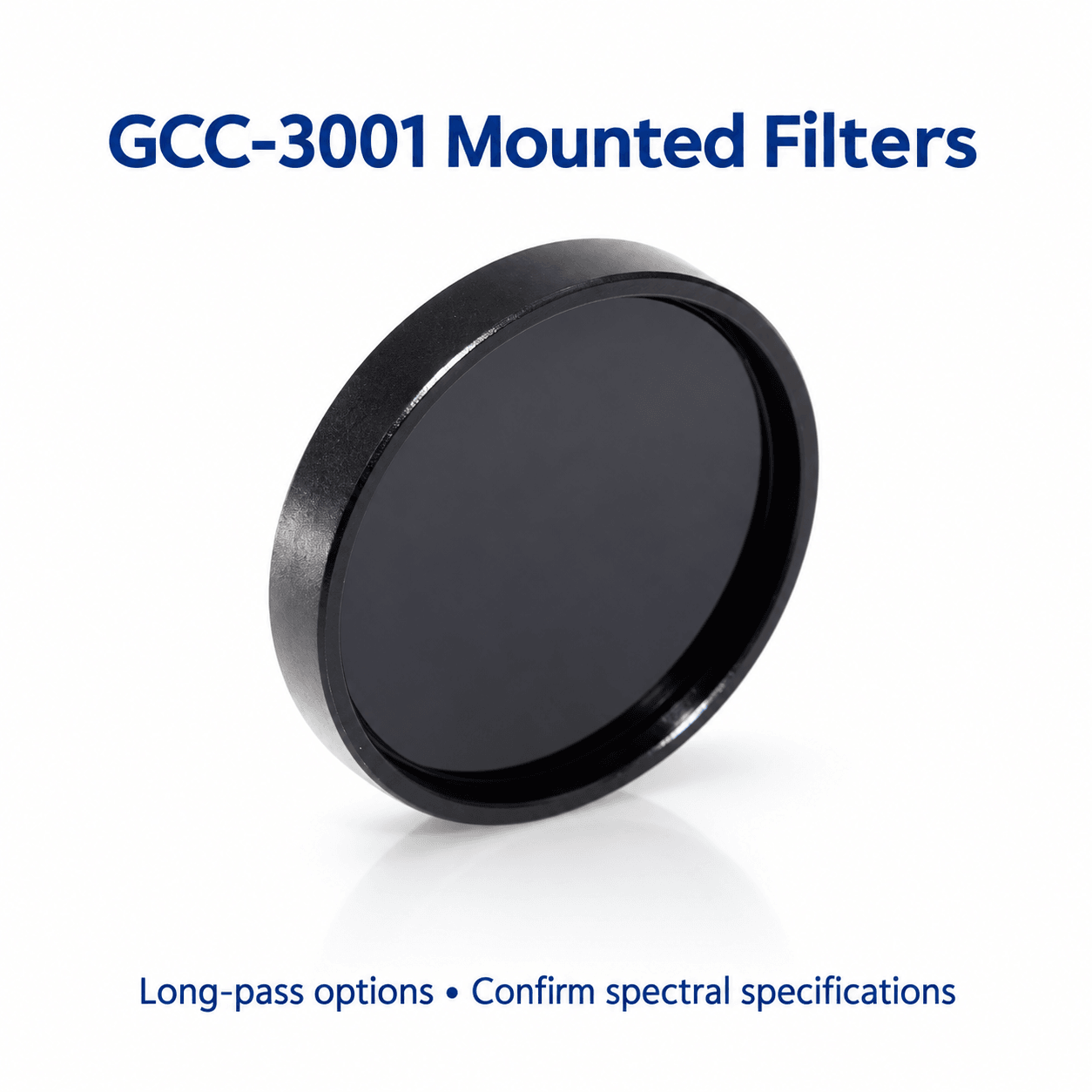

Every card says mounted Φ25.4 without a size unit or a definition of whether this refers to the optic, frame diameter or clear aperture. Photographs show a black circular rim with tinted or dark optical surfaces. Substrate, frame material, thickness, tolerances, mounting thread and clamping requirements are unspecified. The 25.4 label alone does not establish compatibility with a one-inch holder.
Performance and supply details
Transmission curves, blocking range, optical density, edge steepness, incidence angle, temperature limits, laser damage threshold and coating information are absent. Photographic tint does not establish transmitted color or coating construction. Custom-size promotion is not a separate SKU. Confirm delivery, quantity, cleaning requirements and custom specifications separately.
Selection checklist
Complete model and wavelength label
Long-pass/notch heading discrepancy
Units and measurement datum for Φ25.4
Spectral data, incidence conditions and mounting
To be confirmed
Confirmed filter type and edge definition
Size units, thickness and clear aperture
Transmission, optical density and blocking range
Substrate, coating, power and cleaning requirements
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
Typical applications
- Long-wavelength transmission and short-wavelength rejection setups
- Spectral selection in imaging, illumination, and detection systems
- Integration into filter wheels, holders, and custom optomechanics
- Custom wavelength or mechanical-envelope RFQs
Product highlights
- Mounted longpass filter family for spectral edge selection
- Thirteen model-to-wavelength labels reviewed against XINDA artwork
- Source-labeled 25.4 diameter; mechanical definition remains to be confirmed
- Custom-size requests accepted for engineering review
