HYAX and HYAN Black-Panel Optical Experiment Enclosures

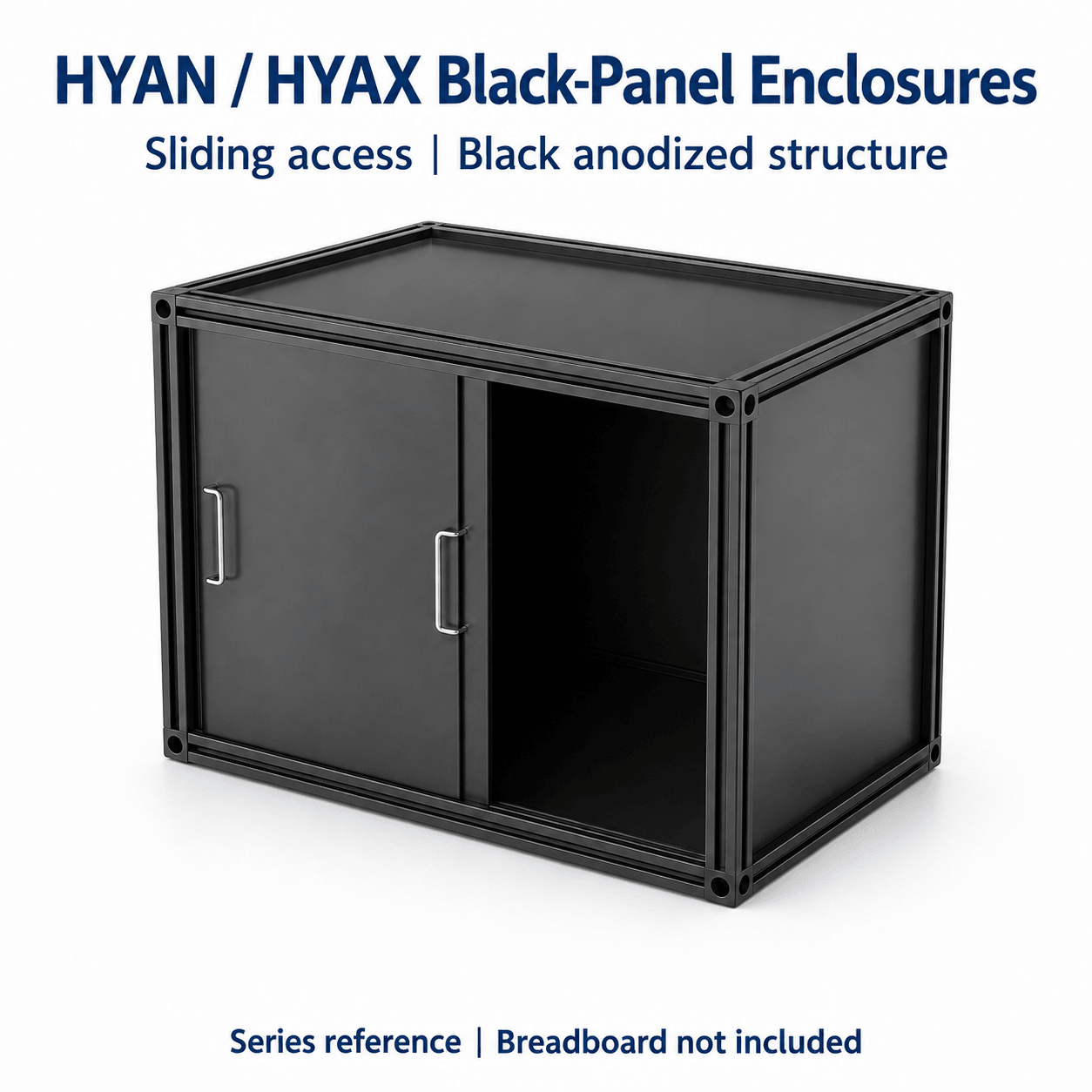

This source offers six HYAN/HYAX standard enclosures and a custom option. Photographs show a black aluminum-alloy frame, enclosed top and sliding doors with handles. A separate raw option only states that the breadboard is excluded; it is supply information, not a breadboard product SKU. No individual specification images or formal engineering drawing are available.

Size labels and dimension datum

HYAN400-400 is labeled 400 × 400 × 350; HYAX450-600 is 450 × 600 × 450; HYAX550-550 is 550 × 550 × 450; HYAX600-600 is 600 × 600 × 450; HYAX550-850 is 550 × 850 × 450; and HYAX600-900 is 600 × 900 × 450, in original length/width/height order. Units and external/internal datum are omitted. Material differences, door travel and other dimensions are not inferred from model names.

Material and finish

The detail image specifies aluminum alloy and a black anodized finish, without alloy grade, panel thickness, profile section, anodized-layer thickness or service-life values. Black-panel photographs are not a model-specific panel material list; acrylic wording from a different transparent range is not transferred. Durability promotions are not load or lifetime guarantees.

Sliding doors and mounting

Photographs show sliding doors, handles and a top frame, without maximum opening, track dimensions, locking, sealing or mounting-hole data. The bottom breadboard is explicitly excluded; display stands and other hardware are not automatically included. Agree dimensions, panels, frame, doors, ventilation and cable entries before quoting a custom option.

Performance limits and supply

The source promotes high-voltage insulation, high precision and heavy loading, without withstand voltage, accuracy, load ratings or tests. The anomalous “360°C” light-blocking wording is not treated as a temperature rating or proof of zero transmission. Laser wavelengths, power limits, optical density, damage threshold, flammability and protective certification are unspecified. The enclosure is not described as a positioning stage, high-temperature device or certified laser safety enclosure.

Selection checklist

Complete model and source size labels

Units, external/internal datum and usable space

Door opening and equipment access

Separate breadboard and mounting interfaces

Material, accessories and actual experiment conditions

To be confirmed

Dimensional units, datum and tolerances

Panel thickness, profile section and alloy grade

Door travel, opening, locking and mounting hardware

Electrical insulation tests and laser performance certification

Ventilation, cable entries and supplied accessories
