HYAX and HYAN Transparent Optical Experiment Enclosures

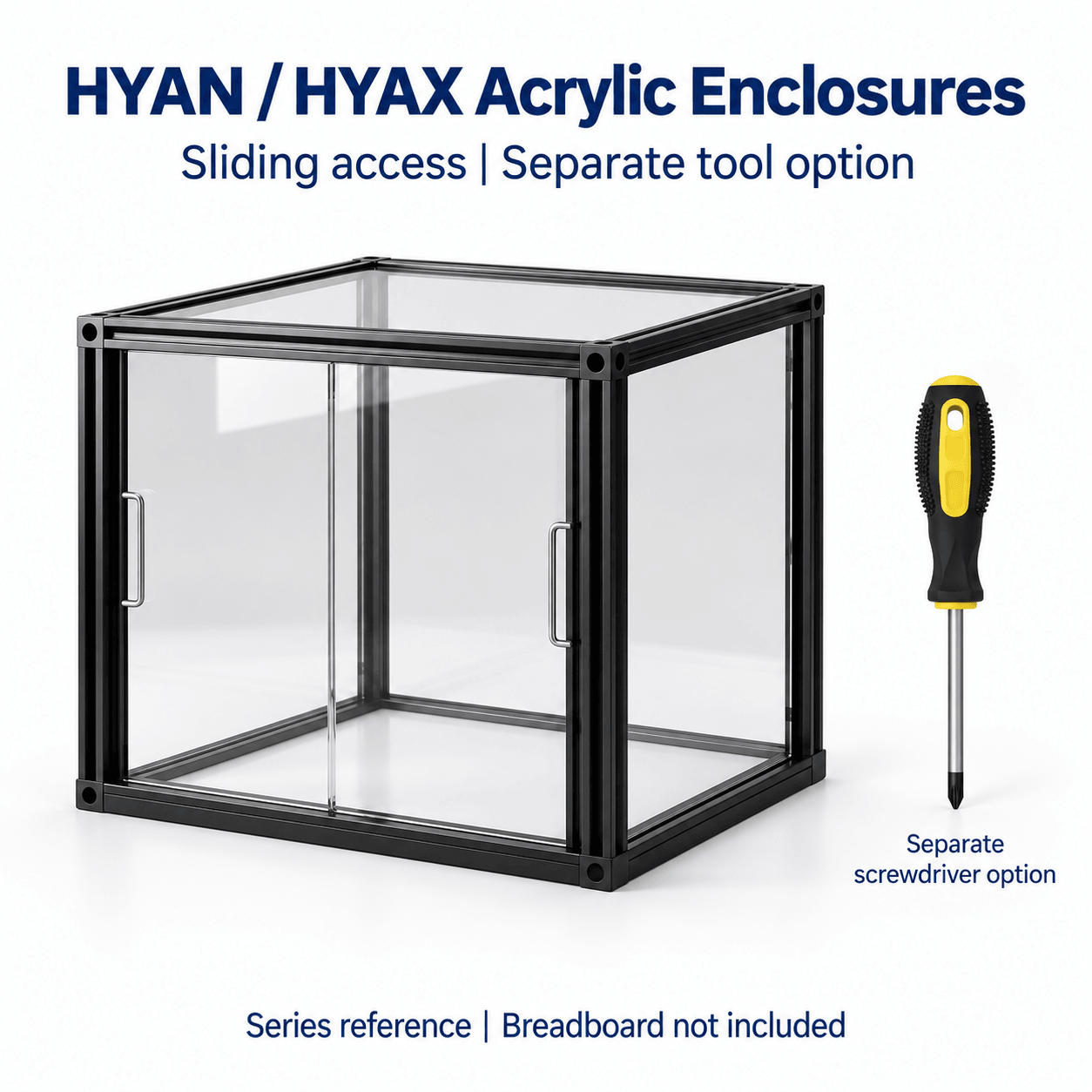

Choose from four HYAN/HYAX transparent enclosures, a separate cross-head screwdriver and a custom configuration. Detail images identify transparent acrylic panels, an aluminum-alloy frame and black anodizing; photographs show sliding front doors with handles. Two raw options provide breadboard information only: the breadboard is excluded and may be requested separately. Neither is a breadboard product SKU. No enclosure-specific specification images or formal engineering drawing are available.

Models and source size labels

HYAN400-400 is labeled 400 × 400 × 350; HYAX450-600 is 450 × 600 × 450; HYAX600-600 is 600 × 600 × 450; and HYAX600-900 is 600 × 900 × 450, in original length/width/height order. Labels omit units and an external/internal datum; usable space and tolerances need confirmation. The source does not explain differences between HYAN and HYAX, so functions and performance are not inferred from the names.

Material and structure

Detail images specify transparent acrylic, aluminum alloy and black anodizing, without acrylic thickness, alloy grade, profile section or anodized-layer thickness. Sandblasting is not stated in this source. Sliding-door photographs do not establish travel, maximum opening, locking, sealing or roof-panel contents; confirm these by model.

Mounting and customization

The bottom breadboard is excluded; agree a separate model and quote if required. Confirm enclosure attachment, equipment access, cable clearance and mounting hardware. The separate screwdriver card shows a cross-head tip, 6 mm shaft diameter, 100 mm shaft length, 210 mm overall length and 87 g weight, without a PH size or torque rating. The tool is not automatically included with an enclosure. For custom work, agree dimensions, panels, doors, mounting interfaces and the supply list.

Performance limits

High-voltage insulation, high precision, heavy loading and precise positioning are promotional claims without withstand voltage, load ratings, positioning accuracy or supporting tests. This enclosure is not described as a positioning stage or verified load-bearing mechanism. Spectral transmission, laser wavelengths, power limits, optical density, damage threshold, flammability and protective certification are unspecified; transparent acrylic does not establish certified laser protection.

Selection checklist

Complete HYAN/HYAX model and source size labels

Units, external/internal datum and equipment clearance

Acrylic thickness, door opening and mounting

Separate breadboard and accessory list

Custom drawing and actual experiment conditions

To be confirmed

Dimensional units, datum, tolerances and internal clearance

Profile section, alloy grade, panel thickness and finish scope

Door travel, opening, locking, sealing and roof-panel contents

Mounting hardware, cable access and supplied accessories

Loading, accuracy, corrosion and laser performance data
