L30T-T 30 mm Cage Right-Angle Adjustment Mounts

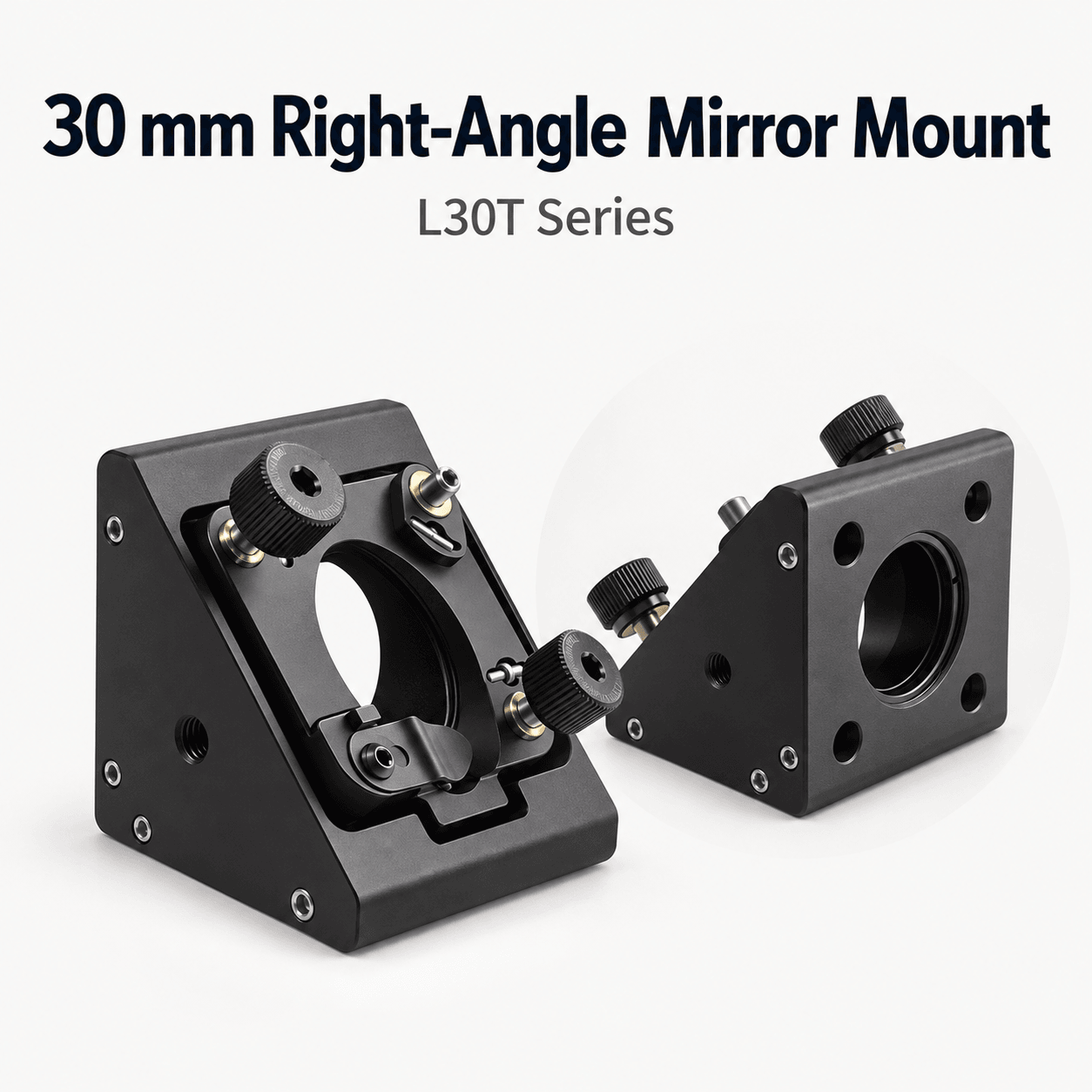

The compact L30T family is illustrated for a 45-degree optical path turn. Dedicated model images show a 1-inch elliptical optic opening, two adjustment knobs and variant-specific side/rear post holes; family artwork also labels an SM1 threaded port. A retaining arm secures the optic as the two adjustment points change mirror angle. Metric and imperial hole combinations differ across the five models, so select from the exact SKU diagram. Inclusion of optics, posts and mating parts is unconfirmed. English artwork illustrates the mount only.

One-inch optic interface

Every dedicated image labels a 1-inch elliptical opening; family art also labels an SM1 threaded port. Check edge shape, optic thickness and actual thread engagement against the mating mirror or tube.

Two-knob adjustment

Two hand knobs adjust the front plate and a retaining arm holds the optic. Angular range, movement per turn, backlash, load and thermal stability are not provided.

Post-mount options

Z6M-T labels side M6/rear M4/rear 6 mm; Z6-T side 1/4-20/rear 8-32/rear 6 mm; ZM-T side M6/rear M4/rear 4-40; Z-T side 1/4-20/rear 8-32/rear 4-40; ZM-TA side M6/rear M4/rear M3. These are separate hole locations in their respective model diagrams.

What is supplied

A family photo shows multiple mounts and rods assembled into a right-angle system. It does not establish that any extra mounts, posts or optics ship with a single SKU.

Selection checklist

Check ellipse size, thickness and SM1 fit

Choose metric or imperial post interface

Check side versus rear mounting direction

Request adjustment data and packing list

To be confirmed

Optic thickness and exact SM1 mating details

Angular travel, precision, backlash and load

Inclusion of mirror, posts, tube and fasteners

Hole depth and pack quantity
