L30T-X 360° Rotation Mounts for 30 mm Cage Systems

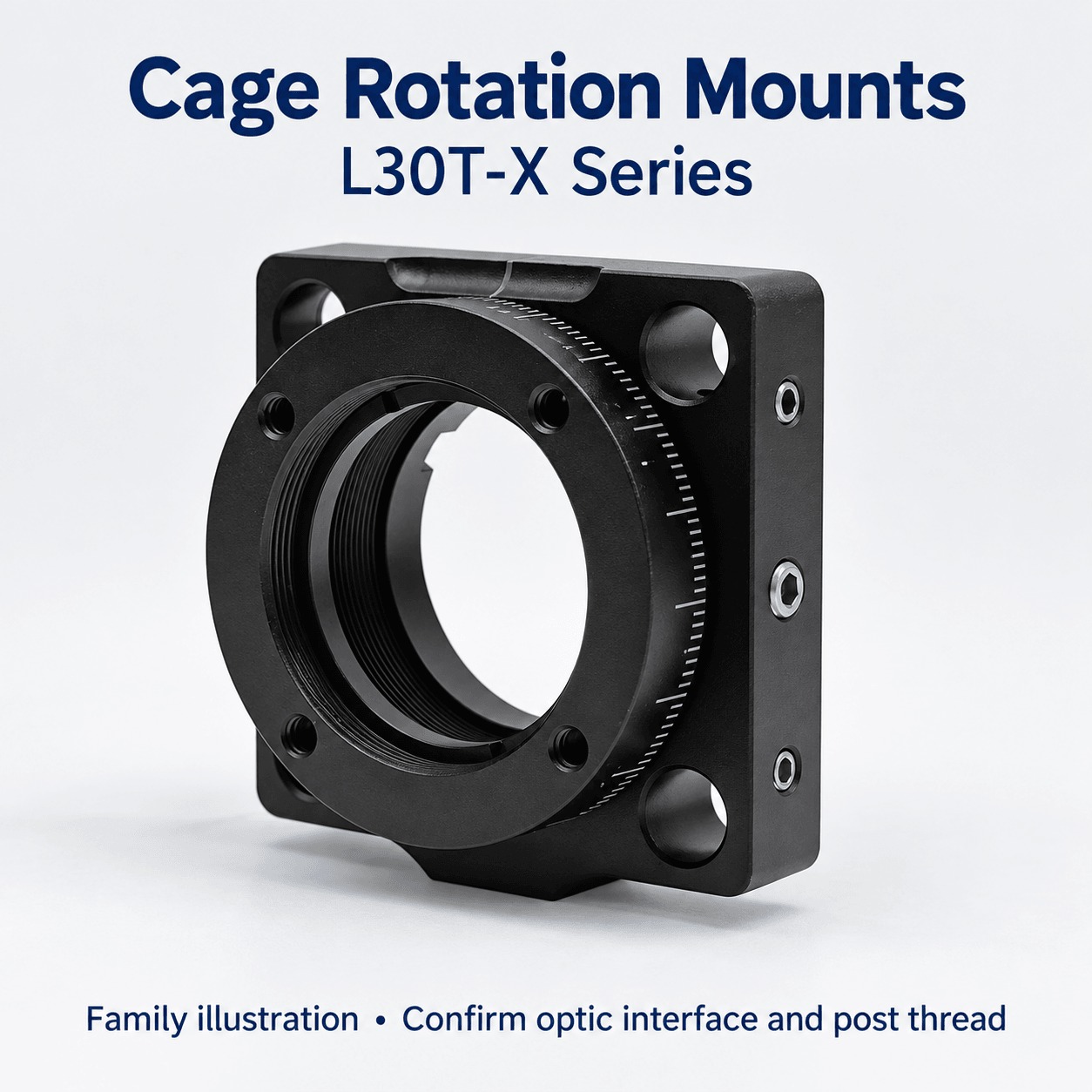

The source lists L30T-X as a 360° rotation mount for a 30 mm cage system. All four online models have dedicated interface photographs. The family offers two central-interface categories: a Ø25.4 mm optic opening or an SM1 threaded opening. Each category is available with either an 8-32 or an M4 post-mounting hole. The documentation records central interface and bottom mounting thread separately, avoiding a dual-thread interpretation of the family’s M4/8-32 notation. The SM1 thread specification is also kept distinct from clear aperture. Photographed angular graduations supply no accuracy, resolution or repeatability data. Cage-rod and post installations are examples rather than statements of included accessories. English artwork shows the threaded-interface family appearance; verify interface, rod holes, optic thickness, locking requirements and supplied quantity for the selected model.

Rotation mount for a 30 mm cage system

The source identifies a 30 mm cage system and 360° rotation mount. Photographs show a square body with four corner rod holes, a graduated rotating cell and an open center. The 360° value is a stated function; scale appearance does not establish resolution, calibrated angular accuracy or repeatability. Confirm rod-hole diameter, spacing tolerances and the exact locking arrangement from an engineering drawing.

Optic opening versus threaded opening

Dedicated images for L30T-X1.0 and L30T-X1.0M label Ø25.4 mm (1 inch). L30T-XSM1 and L30T-XSM1M instead specify an SM1 (1.035 inch–40) threaded opening. These are separate interface selections. An SM1 thread is not assigned to the Ø25.4 mm models, and the SM1 thread diameter is not presented as effective clear aperture. Optic thickness, actual bore, retention accessories and fit tolerances are unspecified.

Model-specific post-mounting thread

L30T-X1.0 and L30T-XSM1 label an 8-32 post-mounting hole, while L30T-X1.0M and L30T-XSM1M label M4. A general image’s M4/8-32 notation represents alternatives across the family, not two threads in one mounting hole. This choice does not change the central interface category. A post, base and other mounting hardware are not assumed to be supplied.

Assembly examples and supply checks

The photograph of rods passing through mounts and connecting a cube is a system example, as is the post-supported installation photograph. Neither establishes included rods, cube connector, optic, post or post-holder assembly. Check cage frame, central interface, axial space, rotation clearance and mounting thread. Confirm material grade, finish, load capacity, locking force, angular accuracy, accessory quantities and actual delivery separately.

Selection checklist

Choose the central interface: Ø25.4 mm or SM1 thread

Choose the post-mounting hole: 8-32 or M4

Check cage-rod holes, rotation clearance, optic thickness and retention hardware

Confirm accuracy, load, material, accessories and delivery

To be confirmed

Rod-hole diameter, spacing tolerances, overall dimensions and model drawings

Actual clear aperture, maximum optic thickness and retention accessories

Scale divisions, accuracy, repeatability, locking force and load

Material/finish, cage-rod/post/accessory quantities and actual delivery
