L60T Cage Right-Angle Mounts for Elliptical Optics

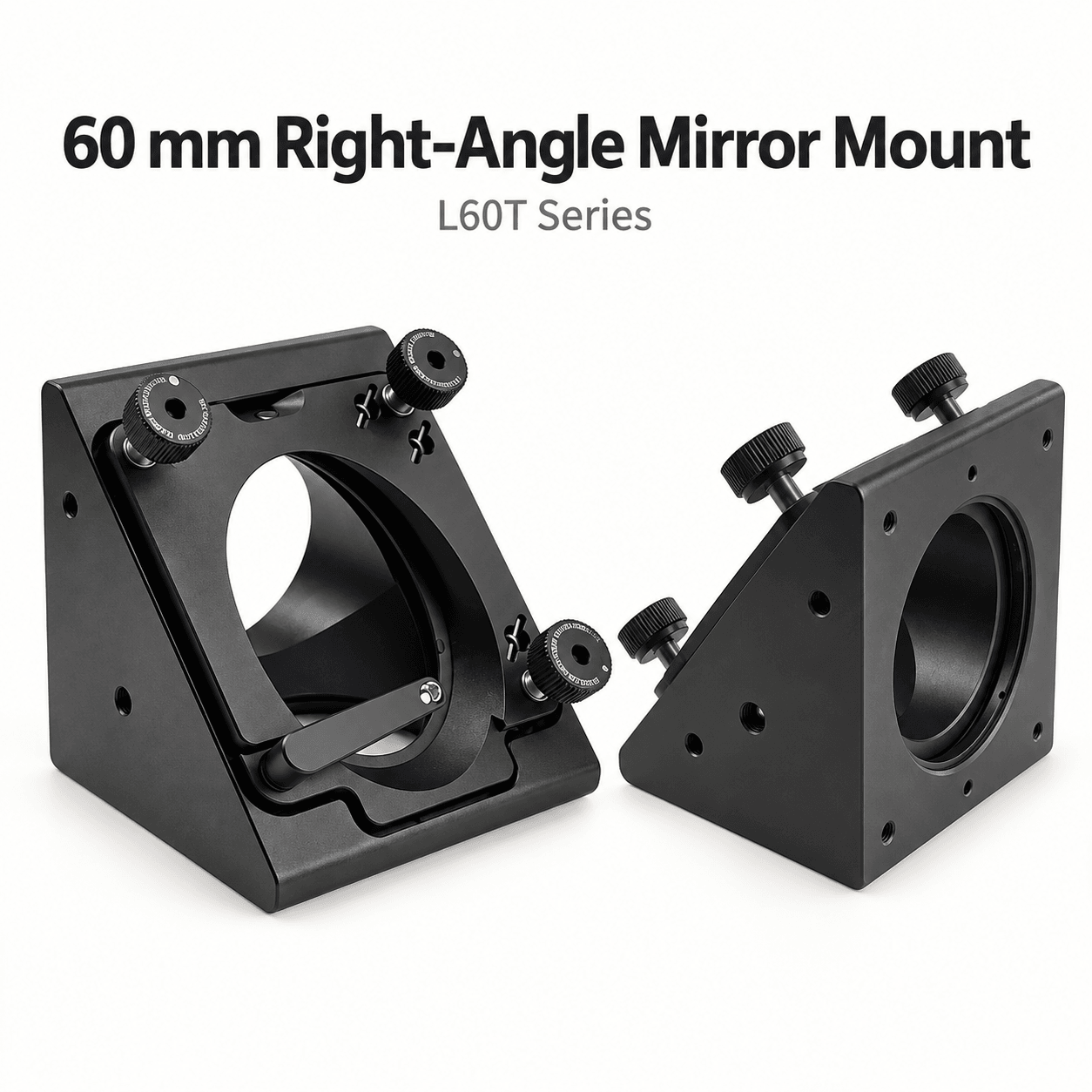

This second source listing offers the same five L60T right-angle mount variants and the dedicated images show the same model-level hole combinations. Its cover explicitly places the mount in a 45-degree optical path turn with an approximately 2-inch elliptical mirror. The front retaining arm, soft-tip screw and three adjustment knobs are pictured. Confirm post-hole configuration from each dedicated image; mirror and post inclusion remain unknown. English artwork is shared with the other listing of the same physical L60T family.

Optic retention

The supplier describes a 2-inch (50.8 mm) elliptical optic. The front opening and retaining arm are visible. Accepted thickness, contact force and proof of the soft-tip material are not supplied.

Three-knob adjustment

Three hand knobs act on the moving plate to adjust pitch and yaw according to the source description. Angular travel, motion per turn, backlash, drift and load are not specified.

Mounting-hole options

The dedicated images label Z6M-T as M6/M4/6 mm; Z6-T as 8-32/1/4-20/6 mm; ZM-TA as M6/M4/M3; ZM-T as M6/M4/4-40; and Z-T as 8-32/1/4-20/4-40. These refer to different holes identified in each model image, not interchangeable thread sizes for one hole.

Before ordering

Check post system, installation direction and optic size. Confirm whether posts, mirror and mounting screws are included and obtain adjustment data for critical alignment.

Selection checklist

Check elliptical mirror thickness and clearance

Match metric or imperial post holes

Check retaining-arm contact with optic coating

Request travel, stability data and packing list

To be confirmed

Accepted optic thickness, holding force and material

Angular travel, resolution, backlash and stability

Inclusion of mirror, post and fasteners

Exact pack quantity by variant
