XINDA-OM-AS-019
M6 x 0.25 x 15 Ball-Contact Fine-Thread Adjuster Assembly
Source-marked thread assembly for drawing-based RFQ
- Original source selections retained
- Source photographs and artwork available
- Supply details confirmed through RFQ
- Available models
- 1 standard models
- Lead time
- Confirmed after model and quantity review
- Purchase method
- RFQ by model
Reference price
$13.94
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.

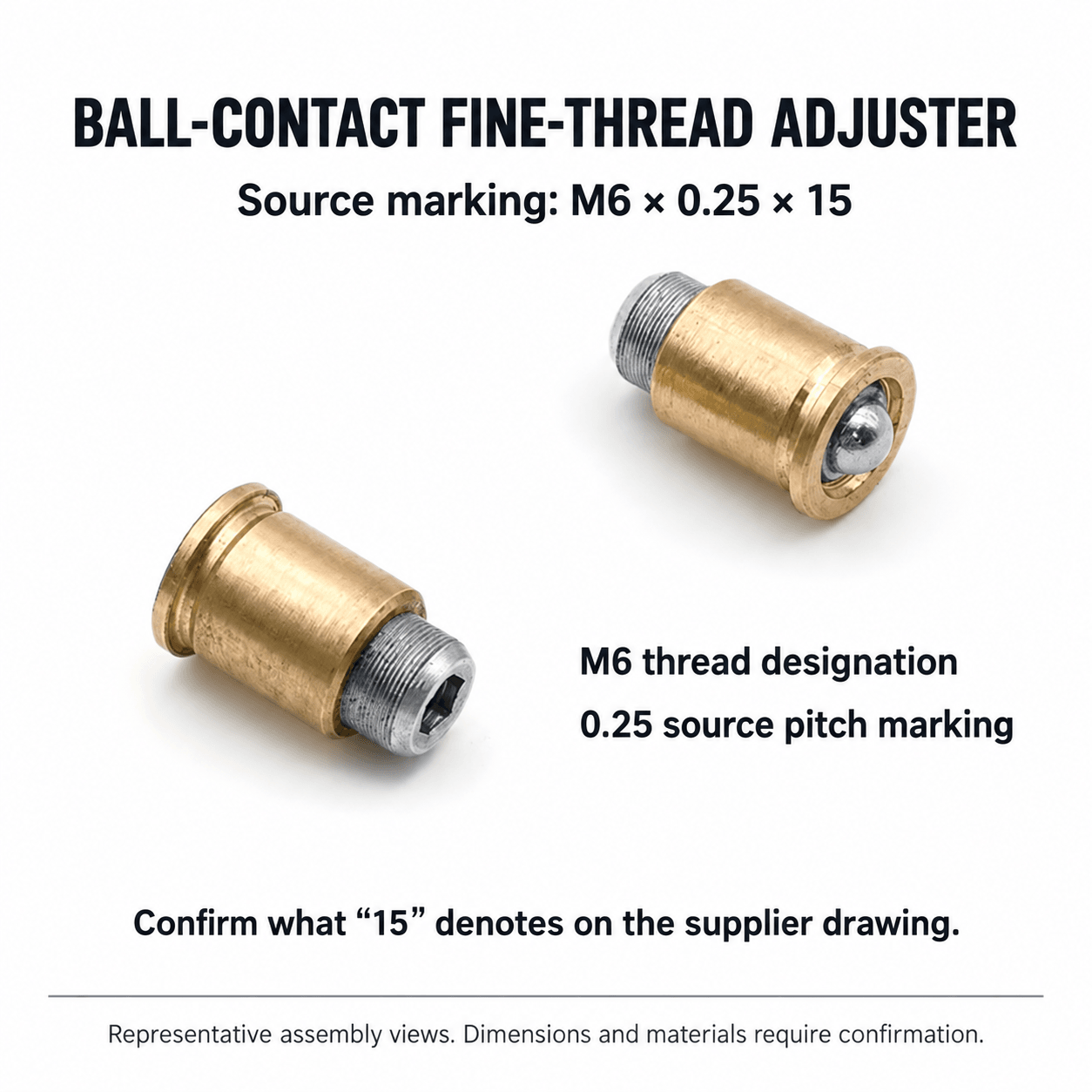

The source offers this ball-contact fine-thread adjuster under the marking M6 × 0.25 × 15. Two photographs show a brass-colored flanged sleeve, a silver ball-contact end and an exposed silver threaded tail. This SKU identifies the original supply option; the photographs do not establish separate orderable screw and sleeve models.
Reading the specification
The M6 thread designation and source pitch marking of 0.25 can be retained. The source does not define which feature, measurement reference or unit the value 15 describes. It is not a confirmed overall length or travel specification.
Checking fit
Check the installation bore, flange seat, ball-contact surface and mating mechanism. Brass and silver coloring do not identify alloy or steel grades. Confirm thread handedness, fit class, ball diameter, usable engagement and adjustment travel on the supplier drawing.
Supply scope and use
The two views illustrate the assembly; they do not establish a pack quantity of two. Specify the required quantity, assembled condition, lubrication and cleanliness in the quote request. Mating optical mounts and installation services are not included automatically.
Acceptance requirements
Provide the SKU, quantity, installation location, contact arrangement and operating environment. If backlash, repeatability, loading or adjustment resolution matters, specify the target and acceptance method. The collected source does not publish those values.
Selection checklist
Complete source marking
Definition and datum for the value 15
Contact and installation geometry
Mating thread, travel and supply quantity
To be confirmed
Meaning and units of 15
Material grades
Ball diameter and adjustment travel
Thread handedness and fit
Backlash, load and repeatability
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
Typical applications
- Optical-mount fine-adjustment assemblies
- Ball-contact mechanical adjustment
- Drawing-based precision component RFQs
Product highlights
- Original source selections retained
- Source photographs and artwork available
- Supply details confirmed through RFQ
