Machine Vision Experiment Supports and Camera Clamps

Ten online options cover a wide-jaw stand, multi-function test-base configurations, an auxiliary lighting clamp, a magnetic articulated arm, separate camera clamps, a Z100 adjustment platform and a line-scan test platform. Three additional basic/portable listings are duplicates mapped to canonical SKUs elsewhere. Some stand images explicitly exclude cameras and lights; separate clamps and platforms do not automatically include a complete base-and-post stand.

Configurations and dimensions

AL600-SP110 states 0–110 mm clamping; GXPT600-ZX110 states 0–110 mm clamping and 0–100 mm vertical adjustment. Separate SP110/ZX110 cards give corresponding clamp/adjustment annotations. The magnetic arm states 0–50 mm clamping and 300 mm height adjustment. Z100 states 0–100 mm travel, M4 screw holes and 25 × 25 mm centers. The line-scan card gives maximum module travel 400 mm. These values are not universal dimensions for every SKU.

Structure and mounting

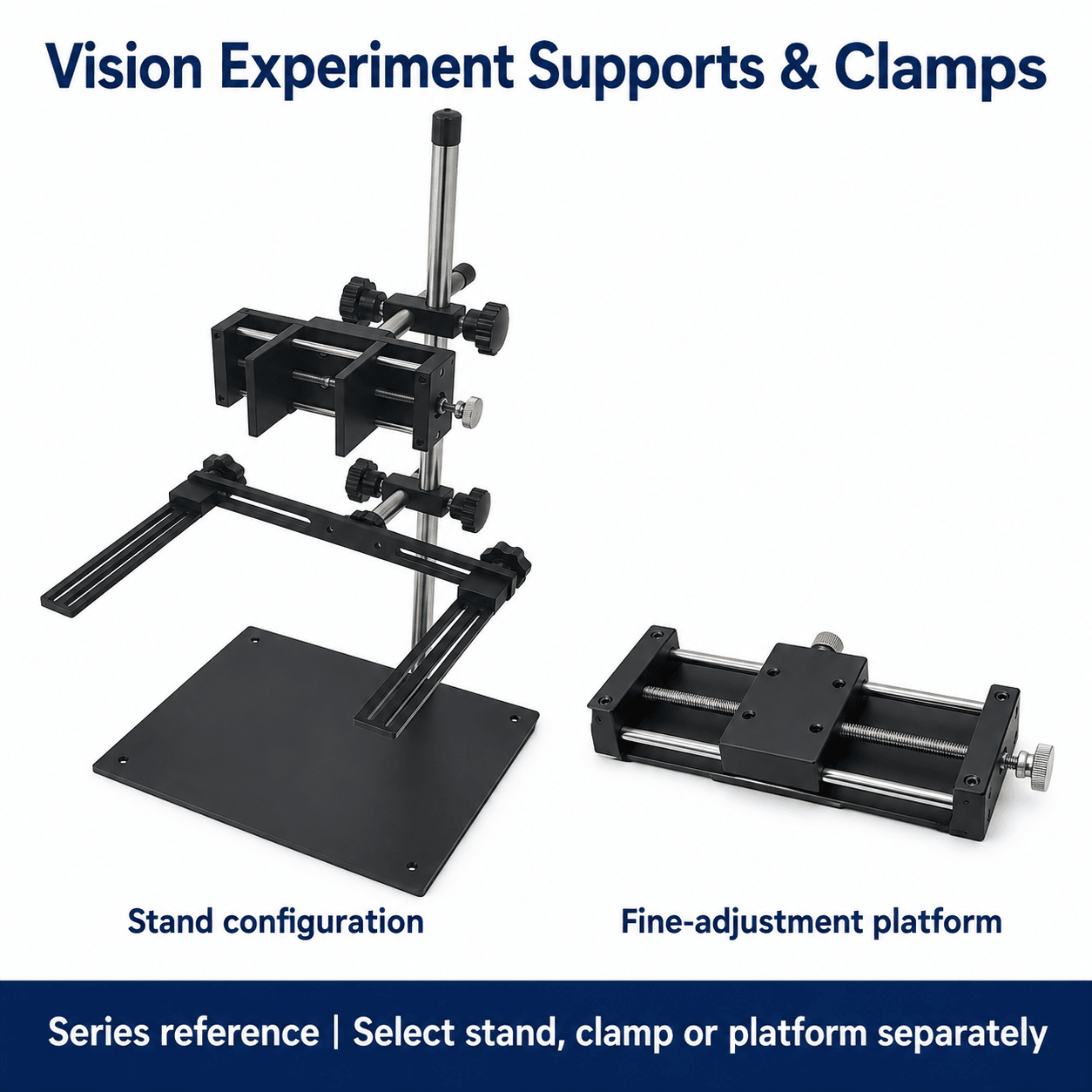

Images show screw-driven wide jaws, roller-style camera clamps, articulated arms, slotted lighting arms, perforated test bases and guide-rod adjustment platforms. GXPT600 shows auxiliary supports on both sides; confirm quantity and supply contents. The magnetic base is intended for ferrous surfaces, without holding-force data. Rotation, locking and positioning claims lack torque, angular accuracy or repeatability values.

Materials and accuracy wording

General main images describe aerospace aluminum, solid smooth rods and height range 0–600 mm, without alloy grade or a component-level material list. That height range is not transferred to separate clamps or platforms. Z100 advertises fine-adjustment accuracy 0.1 mm without definition, test data or clarification of resolution, so it is not presented as verified positioning accuracy. The line-scan image promotes servo control without interface, speed or accuracy values.

Supply and selection

Confirm whether the option is a separate clamp, complete stand or platform, together with clamping range, mounting layout, hole pattern and equipment weight. The line-scan photograph shows a cabinet, display, buttons and vertical mechanism but does not guarantee each accessory or camera is supplied; agree the configuration and quote against a drawing. The auxiliary lighting clamp has no dimensions, so the 0–50 mm rating of another arm is not transferred. Load capacity, stability and safety ratings are unspecified.

Selection checklist

Complete stand, clamp or platform option

SKU-specific clamping/travel annotations

Holes, base and equipment interface

Material and untested accuracy claims

Controls, camera, lighting and accessory list

To be confirmed

Material grades, finishes and load capacity

Separate clamp dimensions and auxiliary jaw opening

Z100 accuracy definition, tests and tolerances

Line-scan controls, speed, accuracy and supply configuration
