XINDA-OM-AP-006

MCS Vertical Optical Breadboard Supports

Select by verified source model; confirm dimensions and interfaces

  • Source-verified factory model selections
  • Original model drawings retained
  • Model-specific mounting and configuration
Available models
5 standard models
Lead time
Confirmed after model and quantity review
Purchase method
RFQ by model

Reference price

$75.26 - $752.59

Select a model to view availability.

View 5 models
Not sure which model? Get selection help

Product overview and selection guidance

Product-family scope, interfaces, selection limits, and supply notes.

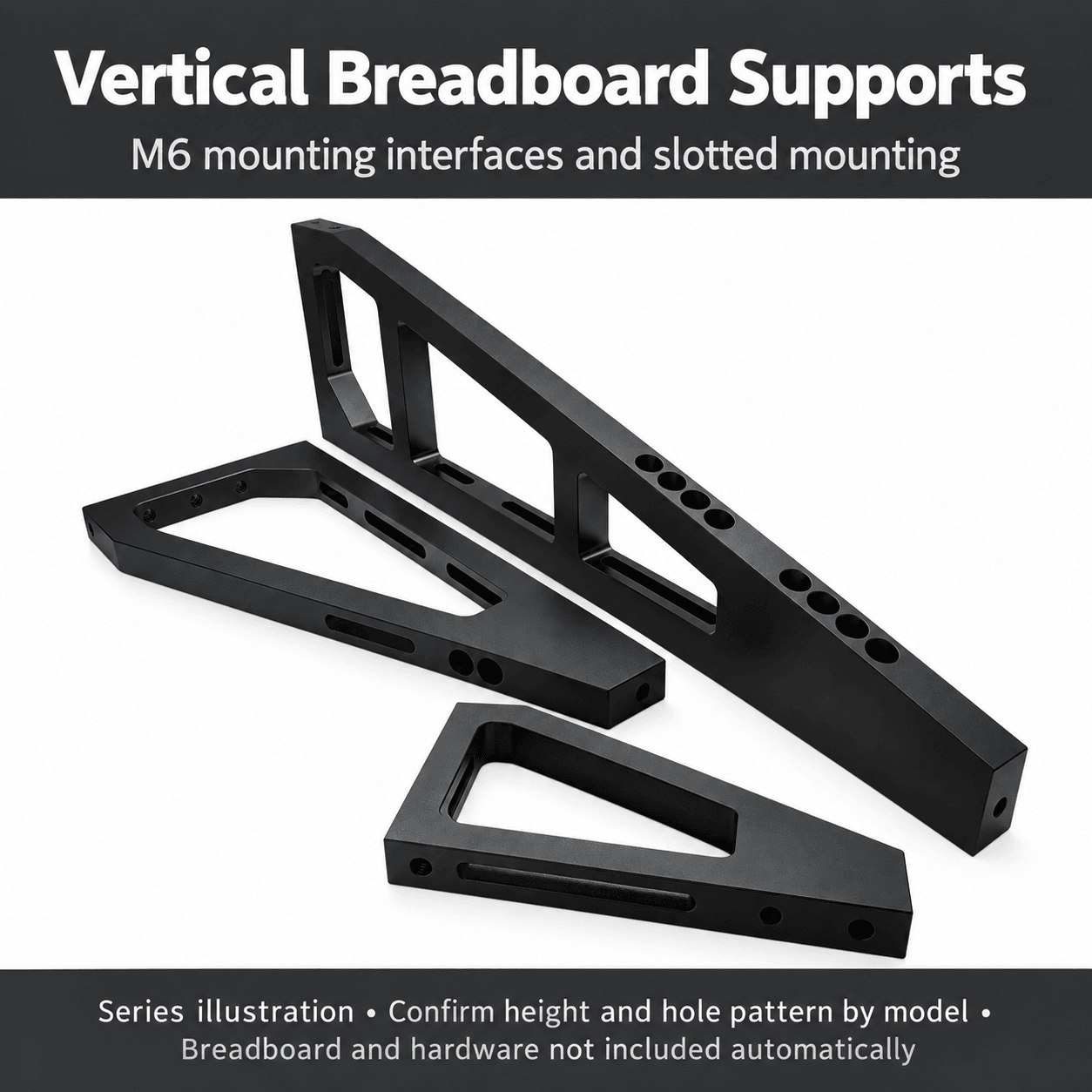

MCS supports use a triangular frame with relief openings to connect an optical breadboard to another mounting surface in a vertical arrangement. Each of the five complete models has a source SKU image labeling two outside-edge dimensions. The source describes M6 mounting threads and elongated mounting slots. Installed height depends on orientation; a model suffix is not a universal height specification.

Model dimensions

The labeled outside-edge dimensions are 150/75 mm for MCS-150, 300/127 mm for MCS-300, 450/127 mm for MCS-450, 600/152 mm for MCS-600 and 900/228 mm for MCS-900. These values are transcribed from the respective images rather than decoded from model numbers. Thickness, hole spacing and slot lengths are not provided.

Vertical mounting interfaces

The source installation example shows two breadboards arranged at 90°, but no angular tolerance is stated. Check both mounting faces, M6 thread depth, screw length, slot clearance and the number of supports required. A claim of fitting any breadboard does not verify every hole pattern or load configuration.

Structure and load requirements

The triangular web and relief openings are visible in the photographs. Alloy grade, finish, flatness, perpendicularity and allowable load lack numerical verification. Evaluate breadboard mass, center of gravity, equipment positions, support spacing and dynamic loading for the selected assembly.

Supplied items

Provide the complete model, quantity, breadboard dimensions and hole drawing, loading and mounting orientation. The two breadboards and screws in the installation example are not included automatically. Several supports shown together do not establish a multi-piece pack. Confirm custom interfaces and machining requirements separately.

Selection checklist

Complete model and support quantity

Orientation and outside-edge dimensions

Breadboard holes, threads and screw engagement

Mass, center of gravity and support spacing

Drawings, hardware and acceptance requirements

To be confirmed

Thickness, hole spacing and slot dimensions

Angular and dimensional tolerances

Alloy grade and finish

Allowable load and required support configuration
