Modular Black Flat Baffle Panels and Joining Strips

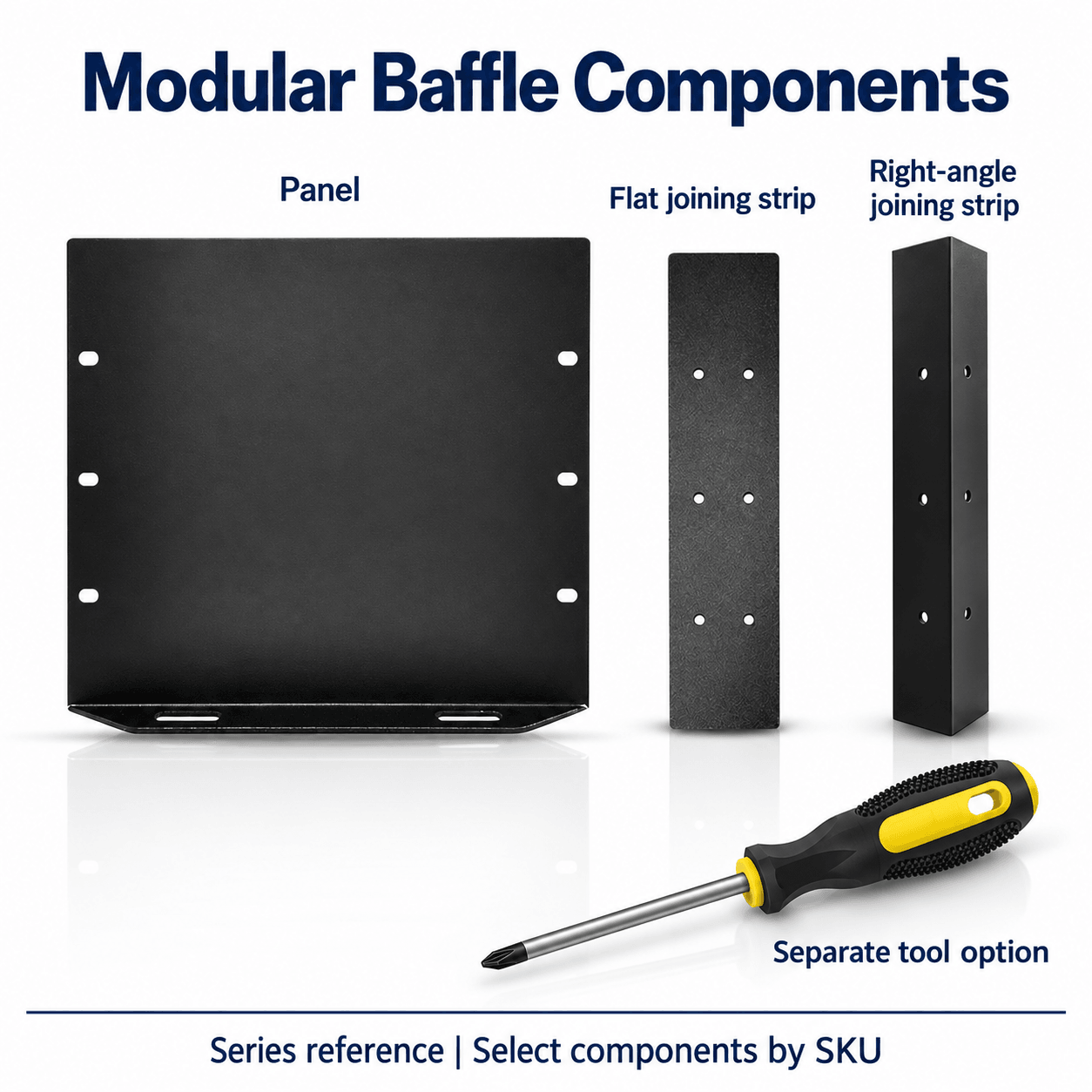

This range includes black flat baffle panels, flat joining strips, right-angle joining strips and a separately listed cross-head screwdriver. The photographs show bent mounting flanges, side joining holes and panels joined at a right angle. Select components for the required baffle arrangement. Panel and strip size numbers in the source options have no stated unit; they are retained as source size labels pending confirmation.

Panels and joining strips

Nineteen panel options are distinguished by height and length labels. Height labels include 100, 200, 300, 400 and 500; select the length from the exact option. Flat and right-angle joining strips are each offered in four height labels: 200, 300, 400 and 500. Strips are separate sales options. A panel is not described as a kit containing all joining hardware; confirm the number of panels or strips in each pack.

Mounting arrangement

The pictured panels have bent lower flanges, elongated mounting slots and side joining holes. Flat strips join adjacent panels, while right-angle strips connect corners. An application image shows two panels forming a right angle on a perforated bench. No drawing specifies hole diameter, spacing, slot width, threads or panel thickness. Compatibility with a particular bench grid or M6 screws is not established. The example bench and mounting screws are not automatically supplied.

Separate screwdriver option

The only individual SKU image shows the screwdriver: a black-and-yellow handle and cross-head tip, labeled 6 × 100 mm, with a 100 mm shaft length, 6 mm shaft diameter, 210 mm overall length and 87 g weight. The source does not identify a PH tip size, shaft material or electrical insulation certification. This is a separate tool option, not a panel or joining-strip kit, and is not automatically included with other SKUs.

Operating limits

A black appearance and protective-baffle product name do not establish material grade, coating, optical absorptance or a laser protection rating. Wavelengths, power limits, damage threshold, optical density and protective certification are unspecified. Confirm the structure for the required coverage and actual laser conditions, together with material, accessories, dimensional units and any custom requirements.

Selection checklist

Panel, flat strip, right-angle strip or tool

Source height/length labels and actual units

Hole and slot fit with bench and fasteners

Joining-strip quantities and pack contents

Actual laser conditions and material requirements

To be confirmed

Panel/strip dimensional units, thickness and tolerances

Mounting holes, slots, spacing, threads and torque

Material, coating and optical properties

Laser operating range and protective certification

Pack count, supplied screws and screwdriver tip size
