OPLS Sliding-Door Optical Experiment Enclosures

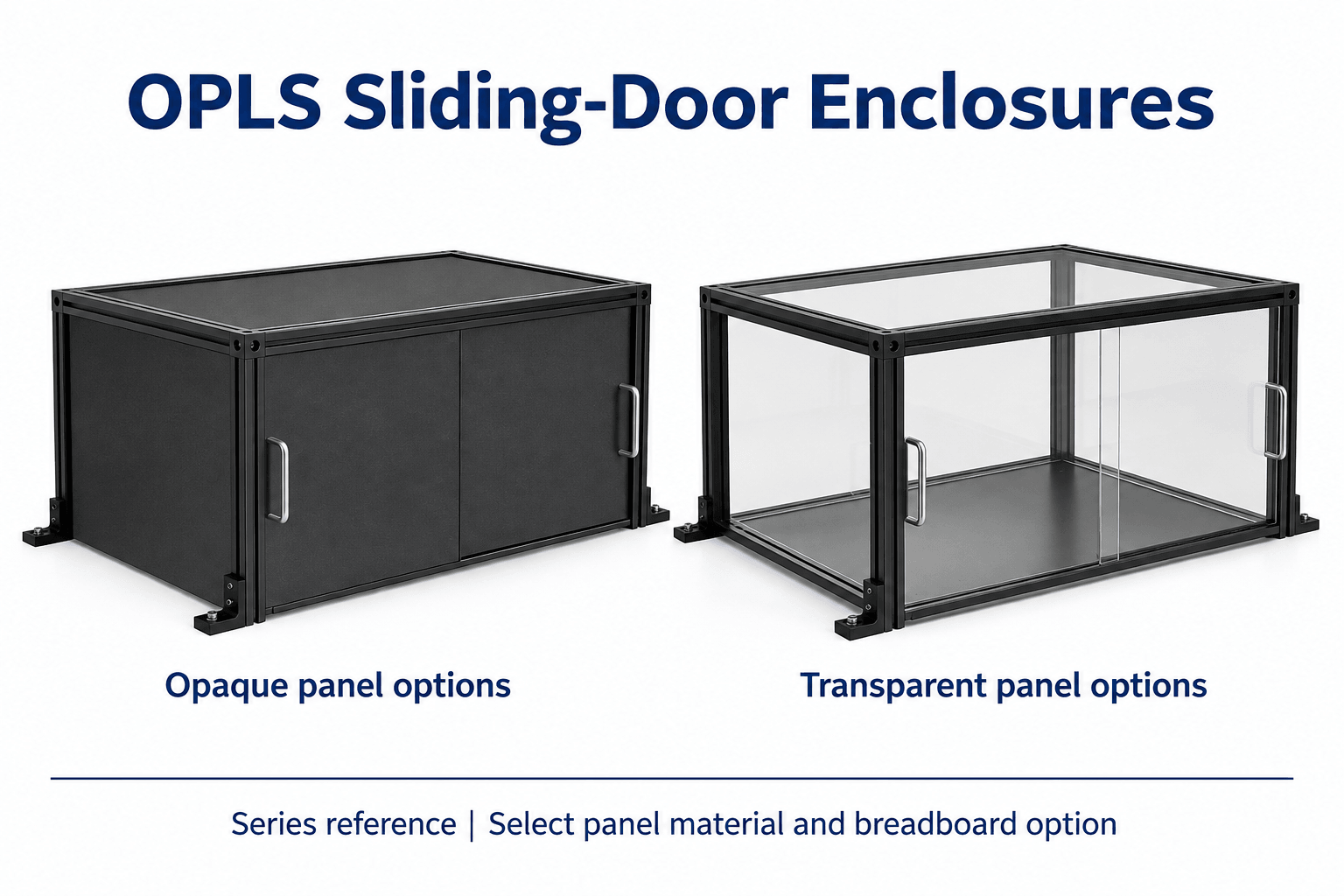

The OPLS range offers black hardboard, resin-glass and black aluminum panel options, each with or without a breadboard, for six SKUs. Photographs and text show overlapping sliding doors, metal front handles and 25 mm-wide rails. Breadboard inclusion is determined by the selected SKU; exclusions from the HYAN/HYAX range do not apply automatically.

Sizes and source evidence

Both OPLS-Z25 cards and the breadboard-included OPLS-S25 and OPLS-L25 cards specify internal length 525 mm, width 375 mm and height 300 mm. Main-image text gives width 373 mm, so usable clearance needs confirmation. The Z25 breadboard-included card separately lists a 450 × 600 mm breadboard; that size is not automatically transferred to S25 or L25. S25C and L25 without a breadboard have no individual specification image; their dimensions are not treated as independently verified from the included-board cards.

Materials and configuration

Z25 uses black hardboard panels. S25C/S25 use transparent panels described by the source as resin glass; a specific PMMA formulation or mineral glass is not established. L25 uses black aluminum panels. General text mentions anodized aluminum without alloy grade, thickness, coating thickness or a component-level treatment list. Trailing hyphens are not decoded independently; breadboard inclusion follows the sales label.

Access, mounting and accessories

The source describes overlapping doors with two metal handles sliding in upper rail channels, with rails bolted to the breadboard below. Hard-plastic side-panel handles appear in general text, not as a confirmed feature in every photograph. Confirm mounting holes, rail fit, doorway and hardware. Cables, red connectors and connection components shown in S25/L25 images lack a SKU-specific supply list and are not automatically included. The contact-sales image is a customization notice, not a separate product.

Operating conditions

The source promotes a protected space for instruments sensitive to light and acoustic vibration, without acoustic attenuation, vibration isolation, sealing or light-leak test data. Laser wavelengths, power limits, optical density, damage threshold, flammability and protective certification are unspecified. Transparent panels are not established as laser protective glass; black hardboard is not established as certified flame-retardant material.

Selection checklist

Panel material and full sales option

Breadboard inclusion and size

373/375 mm internal-width discrepancy

Rails, doorway and mounting hardware

Cable interfaces and actual operating conditions

To be confirmed

Final internal width, external dimensions and tolerances

S25C/L25 no-breadboard configuration dimensions

Material grades, thickness and finish scope

S25/L25 breadboard dimensions and hole pattern

Interfaces, cables, screws and performance certification
