XINDA-PF-FU-001
Optical Table Instrument Surround Frames
Eleven complete frame sizes with source-listed optical-table compatibility
- Eleven complete outside dimensions explicitly stated in millimeters
- Optical-table size compatibility retained for each source selection
- Uprights, horizontal rails, corner connectors and lower braces
- Available models
- 15 standard models
- Lead time
- Confirmed after model and quantity review
- Purchase method
- RFQ by model
Reference price
$8.92 - $13,401.62
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.

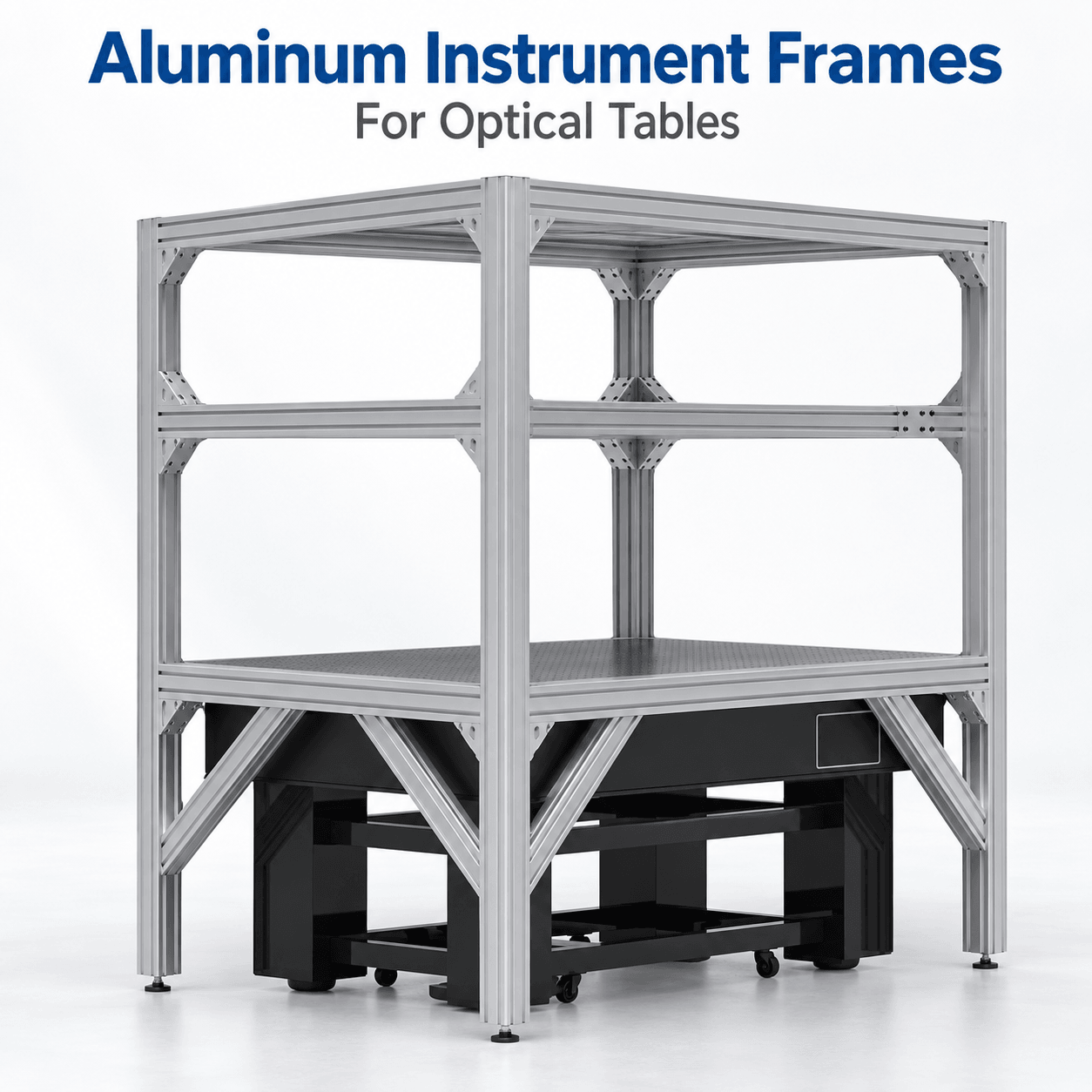

The listing offers open instrument frames around or above optical tables. Source photos show silver extrusions, crossmembers, corner braces and a dark table beneath as installation context. Eleven frame choices list outer length × width × height and a compatible table size; three further selections are rail-darkroom add-ons and one is a separately offered screwdriver. The cover calls the product an aluminum instrument frame while also claiming stainless material, so the component material cannot be established from the images. There are no model-specific drawings, load limits, foot-hole layouts or photos of the darkroom add-on. Obtain an engineering drawing and supply list before ordering. English artwork illustrates the frame family only.
Eleven stated frame sizes
Options run from 1000 × 700 × 2000 mm through 3140 × 1640 × 2000 mm and claim compatibility with optical tables from 0.9 × 0.6 m through 3.0 × 1.5 m. These are source selection labels, not independently measured dimensions. No exact-model mounting drawings are supplied.
Open-frame design
The family images show upright posts, horizontal members, diagonal corner braces and installation around a dark table. Whether that table, a support base or any equipment is included is unknown. Extrusion profile, fastener details, material grade and rated load are absent.
Rail-darkroom add-ons
Three separate sale options refer to nominal table-length bands of 1–1.5, 1.8–2.4 and 2.4 m upward. No source image or structural specification of the enclosure exists. Agree light-blocking requirement, rail, panels/curtain, footprint and mounting by drawing.
Other accessory and material conflict
A screwdriver is another independent option without its own photo or dimensions. The “aluminum” name and “stainless steel” cover claim conflict; confirm which parts use each material and what finish is supplied.
Selection checklist
Match table dimensions, frame envelope and site clearance
Request feet, extrusion and load drawings
Clarify aluminum versus stainless component materials
Quote darkroom and screwdriver options separately
To be confirmed
Material grades, extrusion section and load
Foot-hole layout, fasteners and table inclusion
Darkroom appearance, light blocking and scope
Screwdriver type and pack quantity
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
Typical applications
- Instrument structures around an optical table
- Planning overhead and side clearance at a laboratory bench
- Frame selection for optical-path and imaging experiments
- RFQs for table-sized darkroom rail and curtain arrangements
Product highlights
- Eleven complete outside dimensions explicitly stated in millimeters
- Optical-table size compatibility retained for each source selection
- Uprights, horizontal rails, corner connectors and lower braces
- Material, curtain and installation scope confirmed through RFQ
