XINDA-PF-OT-001
Steel-Core Optical Tables and Isolation-Support Options
Original table-size and standalone support choices
- 54 source configurations retained
- Original photographs retained for configuration review
- Supply scope and acceptance requirements confirmed by RFQ
- Available models
- 55 standard models
- Lead time
- Confirmed after model and quantity review
- Purchase method
- RFQ by model
Reference price
$413.64 - $61,639.64
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.

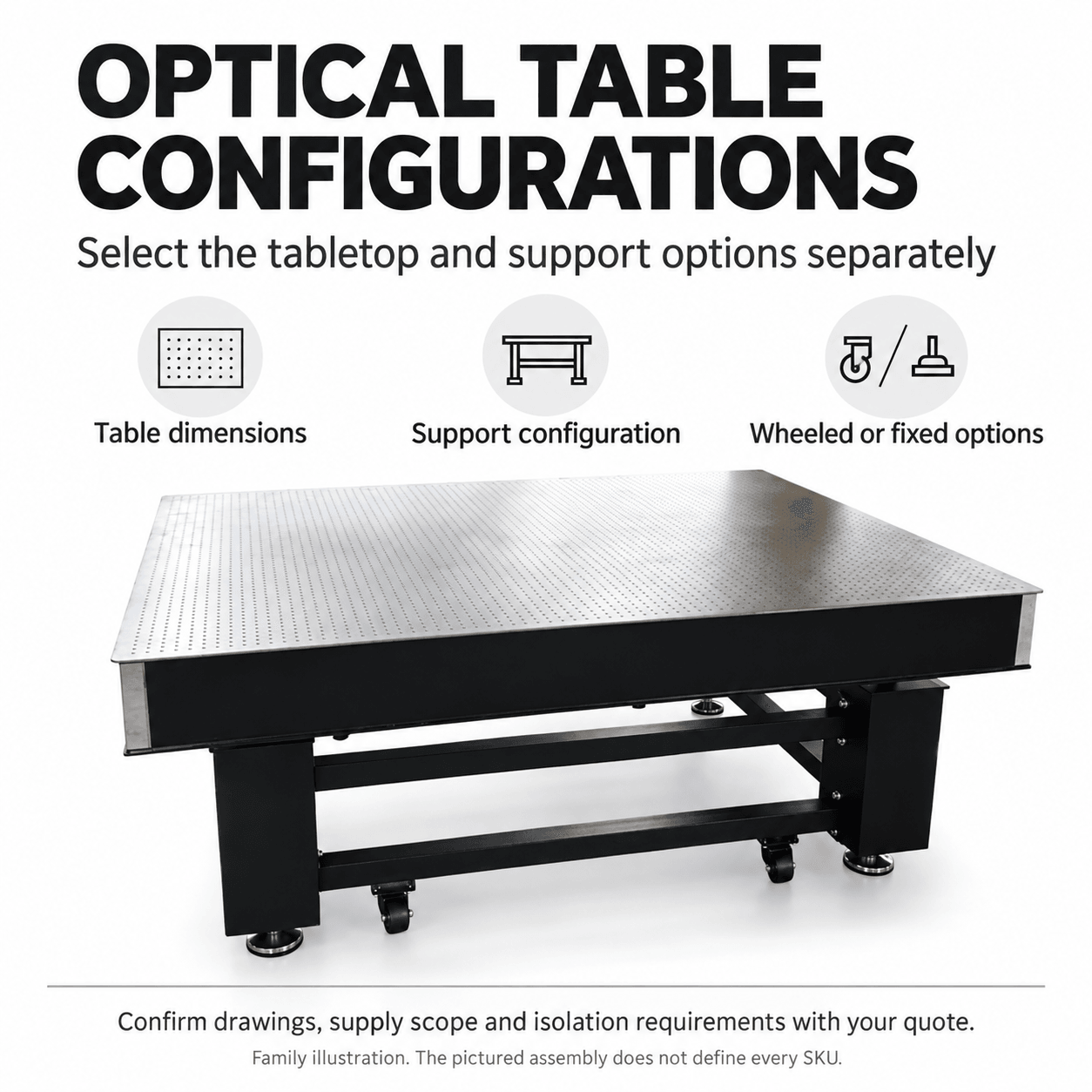

Configure an optical experiment work surface from the table and support options listed in the source. The photographs show a perforated metal top with steel-core sandwich construction. Tabletop sizes and support types marked 80, 120 and 200 are listed separately, including wheeled and non-wheeled options where stated. Confirm the tabletop, support and any custom dimensions as individual quote items.
Reading the size options
Keep the original order of the source dimensions and any parenthesized values. Retain mm only where the source states it. For unqualified labels, confirm the units, the meaning of each dimension and whether a parenthesized value is an alternative size or configuration. Support type numbers are not confirmed dimensions. Do not fill gaps from a photograph or a similar SKU.
Construction and isolation options
The artwork describes steel-core sandwich construction and damping or air-supported isolation options. Confirm face and core materials, hole pattern, tabletop thickness, support type, air-supply requirements and accessories for the selected combination. Material markings in family artwork also need to be checked on the purchase drawing; they are not a material guarantee for every SKU.
What is included
A standalone support option is not a complete table assembly. A photograph with casters does not mean every size includes wheels. Specify the tabletop, supports, casters, leveling hardware, mounting accessories and installation services on the supply list. Custom sizes require a separate drawing and quote review.
Quote and acceptance requirements
Provide the source size label or SKU, equipment weight and load distribution, installation space, mobility needs, available air supply and isolation targets. Agree test and acceptance methods for isolation curves, natural frequency, flatness or load rating. The collected material does not provide measured values for each configuration.
Selection checklist
Source dimensions and confirmed units
Tabletop and support combination
Casters and leveling hardware
Loading and installation space
Air supply and isolation acceptance requirements
To be confirmed
Meaning of dimensions without units
Choice represented by parenthesized values
Configuration-specific materials and hole patterns
Load rating
Isolation curves and natural frequency
Flatness acceptance values
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
Typical applications
- Optical experiment platform planning
- Laboratory instrument mounting layouts
- Drawing-based platform and support RFQs
Product highlights
- 54 source configurations retained
- Original photographs retained for configuration review
- Supply scope and acceptance requirements confirmed by RFQ
