XINDA-PF-FU-002
Storage Racks for Optical Tables
Source optical-table pairing options
- 6 source configurations retained
- Original photographs retained for appearance reference
- Packing list and load requirements confirmed by RFQ
- Available models
- 7 standard models
- Lead time
- Confirmed after model and quantity review
- Purchase method
- RFQ by model
Reference price
$6,044.11 - $8,845.96
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.

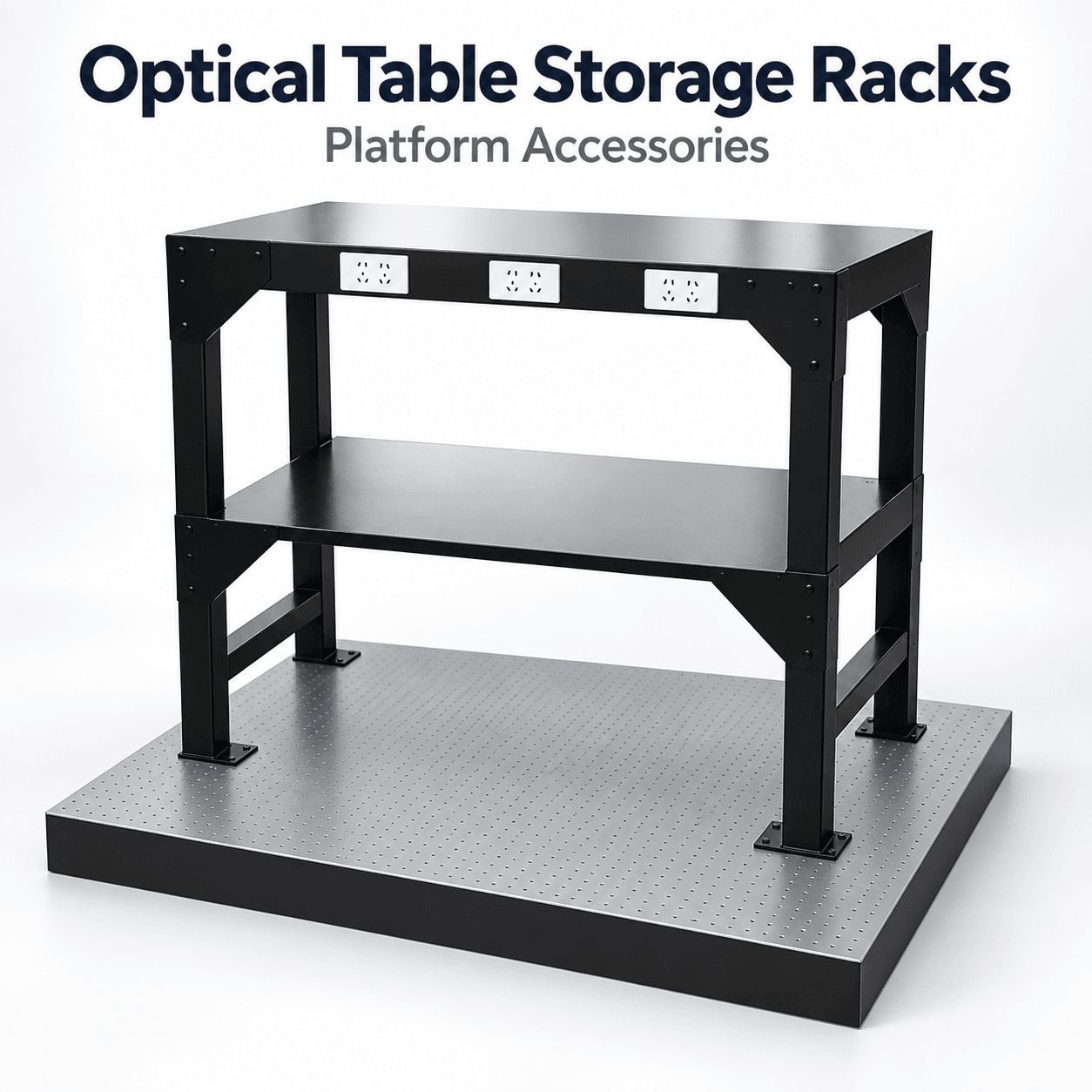

Source photos show a black open-frame storage rack above an optical table, with a flat top, middle shelf and four legs. Front-edge socket panels appear in the family image. Purchase options specify compatibility with 1.2–3.0 m optical tables or a custom size, but do not state the rack’s actual footprint, shelf load, mounting pattern or packing list. The cover calls the material stainless steel without a grade or certificate. Do not assume the silver table, outlet modules or power wiring are included; verify against the site’s table drawing. English artwork depicts an installation scenario only.
Compatibility choices
Six standard options are described for 1.2, 1.5, 1.8, 2.0, 2.4 and 3.0 m optical tables, with a seventh custom-size option. These values refer to the intended table length, not measured rack dimensions or compatible table width.
Rack structure and fit
Photos show a top work surface, intermediate shelf, four legs and corner feet mounted over a table. Fastener thread, hole pattern, foot setback, shelf clearance and rack weight are unspecified.
Material and loading
The supplier calls the structure stainless steel. Black appearance does not verify grade or finish; top and middle shelf load limits, vibration response and tip resistance are not provided. Obtain a load drawing for heavy or high-center-of-gravity equipment.
Electrical and supply scope
Three socket panels are visible, but voltage, frequency, current, grounding, cord, certification and inclusion by variant are not stated. The silver optical table is shown for context; confirm whether it is separately supplied.
Selection checklist
Provide table length, width, thickness and hole map
Confirm rack footprint, shelf height and load limits
Check mounting feet and equipment clearance
Specify outlet requirements and exact packing list
To be confirmed
Rack dimensions and mounting pattern by variant
Shelf load, steel grade and finish
Electrical ratings, certification, cord and inclusion
Table inclusion and custom-build lead time
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
Typical applications
- Laboratory instrument workspace planning
- Optical-table storage and equipment arrangement
- Drawing-based laboratory furniture RFQs
Product highlights
- 6 source configurations retained
- Original photographs retained for appearance reference
- Packing list and load requirements confirmed by RFQ
