XINDA-OM-AT-002
ZFM-D130 / ZFM-D200 Magnetic Metric/Imperial Beam-Height Rulers
Dual scales, two base magnets, and locating pins with source-mapped height fields for two models
- ZFM-D130: H1 130 mm, H2 127 mm, and H3 137.80 mm
- ZFM-D200: H1 200 mm, H2 203.2 mm, and H3 207.80 mm
- Source-confirmed metric/imperial scales, two bottom magnets, and locating pins
- Available models
- 2 standard models
- Lead time
- Confirmed after model and quantity review
- Purchase method
- RFQ by model
Reference price
$217.41 - $250.86
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.
ZFM-D130 and ZFM-D200 rulers combine metric/imperial graduations, a magnetic base and locating pins for height checks and alignment reference during optical assembly. The original drawing distinguishes maximum metric height H1, maximum imperial height H2 and overall height H3. Scale limits and overall ruler height are different dimensions.
Scale limits and overall height
For ZFM-D130, H1/H2/H3 are 130/127/137.80 mm. For ZFM-D200 they are 200/203.2/207.80 mm. The drawing gives H2 as the millimeter equivalent of the imperial scale’s maximum height, not a number in inches.
Base and locating features
The source shows two magnets and locating pins beneath the base. The drawing specifies 25 mm locating-pin spacing and a 4.80 mm pin diameter. Magnetic holding depends on the mounting surface; an aluminum breadboard should not be assumed to provide magnetic attachment. Confirm locating-hole fit, surface compatibility and the reading datum.
Material and accuracy
Metric and imperial graduations provide a visual reference. The source does not include a calibration certificate, reading-error specification or repeatability value. Base holding force and alloy grades are also unspecified. Scale subdivisions are not a verified measurement-accuracy rating.
Supplied items

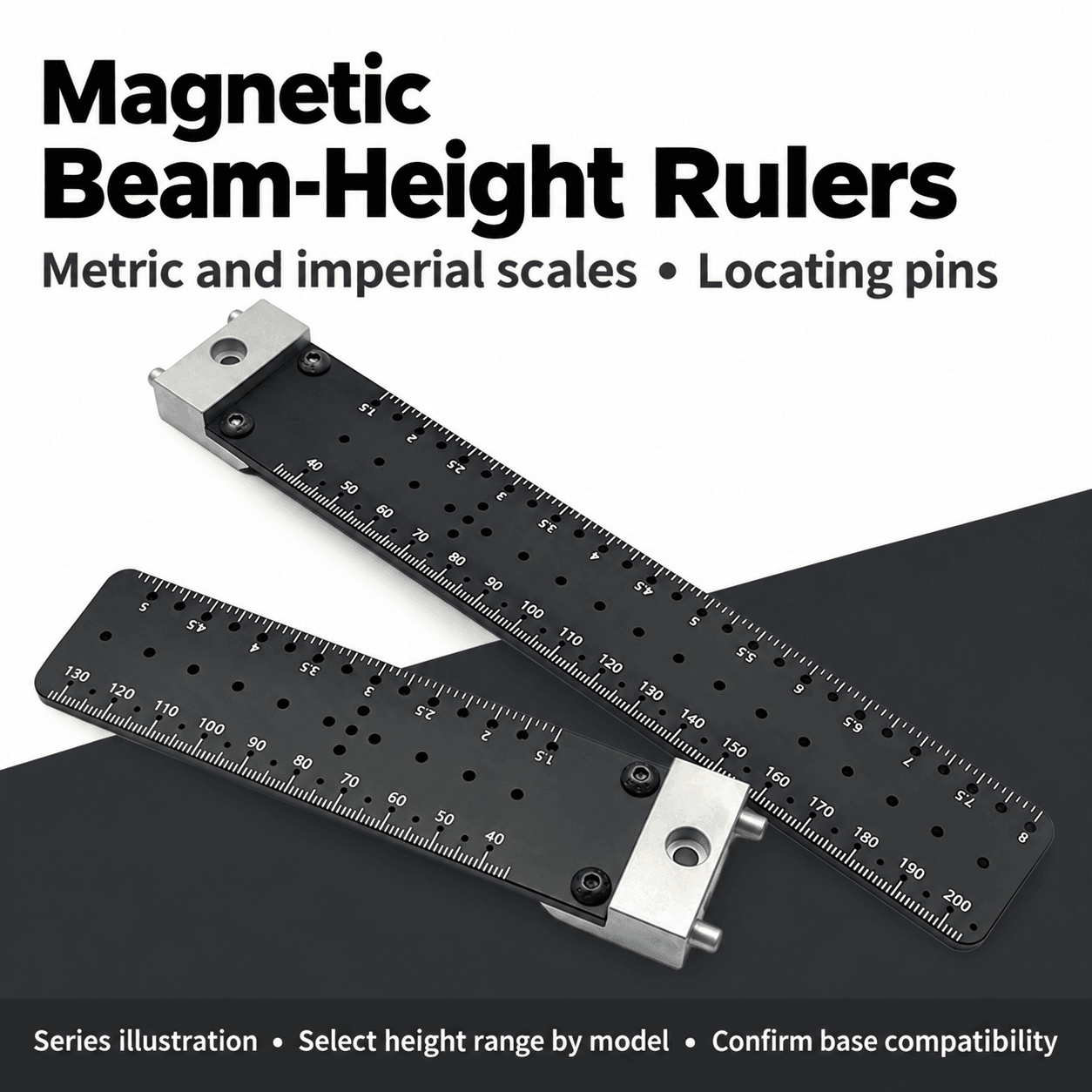

Order ZFM-D130 or ZFM-D200 by complete model and quantity, and confirm the base and locating-pin configuration. Two rulers pictured together illustrate the series and do not specify a two-ruler pack. Platforms, additional locating accessories and calibration services are not included automatically.
Selection checklist
Complete model and scale range
Magnetic surface and locating holes
Reading datum and overall height
Accuracy and calibration requirements
Quantity and supply configuration
To be confirmed
Reading error and calibration status
Magnetic base holding force
Locating-pin fit tolerances and material
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
Typical applications
- Beam-height reference and initial alignment on optical tables
- On-bench comparison of metric and imperial height readings
- Mechanical height transfer and recording during repeated setups
- Evaluation of locating-pin placement on perforated tables
Product highlights
- ZFM-D130: H1 130 mm, H2 127 mm, and H3 137.80 mm
- ZFM-D200: H1 200 mm, H2 203.2 mm, and H3 207.80 mm
- Source-confirmed metric/imperial scales, two bottom magnets, and locating pins
- Shared drawing labels a 3 mm ruler plate, 25 mm pin spacing, and 4.80 mm pin diameter
