ZGD-CT63 Switchable Magnetic Base

Check specifications and interfaces by original model

Individual original model selections
Original model images retained
Model-specific parameters and interfaces

Available models: 1 standard models
Lead time: Confirmed after model and quantity review
Purchase method: RFQ by model

Reference price

$72.47

Select a model to view availability.

Select models to request a quote

View 1 models

Not sure which model? Get selection help

Models and availability

1 models. Select one or more models for a combined RFQ.

Request the selected models from the action bar without returning to the top.

Select up to 50 models per request

Model	Lead time	Reference price	Selection
ZGD-CT63 RFQ	2–7 days	$72.47

ZGD-CT63
RFQ
Lead time
2–7 days
Reference price
$72.47

Showing 1 of 1 models

Product overview and selection guidance

Product-family scope, interfaces, selection limits, and supply notes.

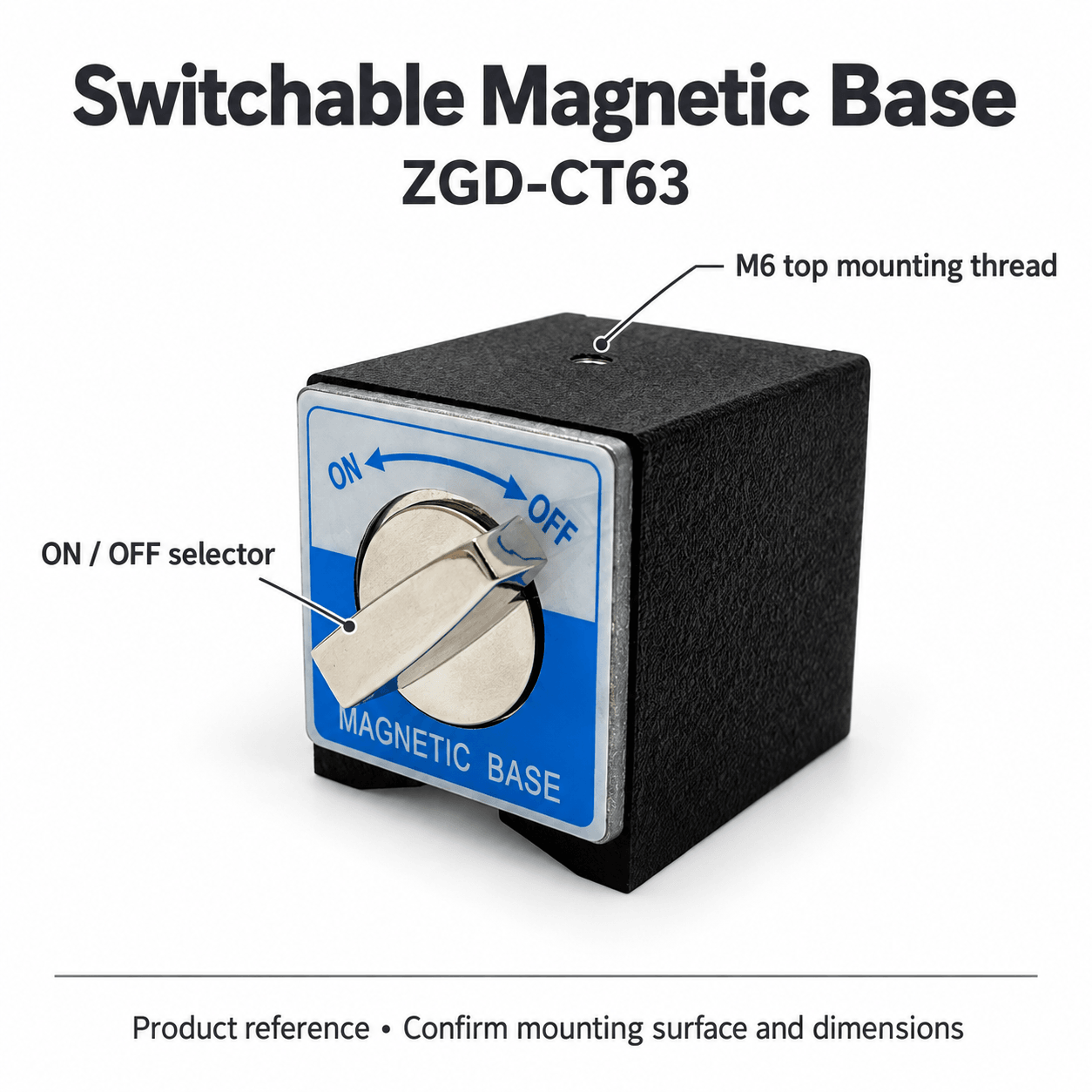

The ZGD-CT63 uses a front rotary selector to switch magnetic holding on and off. Its top M6 tapped hole connects to a post or post holder. Source images show bottom and rear contact regions and a holder installation example. Confirm a suitable magnetic mounting surface and contact conditions; do not assume a typical aluminum platform provides magnetic attachment.

Conflicting dimension labels

The promotional image states 63 × 55 × 50 mm. The individual ZGD-CT63 card instead labels 62 mm depth, 50 mm front width and 55 mm height. The 62/63 mm discrepancy remains unresolved. Do not infer dimensions from the model suffix; confirm the final envelope and tolerances.

Top mounting connection

The source explicitly identifies the top hole as M6 threaded for mounting a post or holder. Thread depth, pitch and matching hardware are not supplied. An M6 label alone does not establish a suitable screw length. The post and holder in the installation photograph are not included automatically.

Selector and contact surfaces

The front selector carries ON/OFF markings. The source describes magnetic attachment at the bottom and rear when switched on. Check the actual contact face, surface flatness, cleanliness and mounting orientation. No holding force, rated load or test conditions are supplied; the switchable magnetic design does not establish a verified load rating.

Ordering and assembly

Specify ZGD-CT63, quantity, mounting-surface material, post connection and available space. Photographs show a black block and metal selector face but do not identify material grades or finish. Resolve the dimension discrepancy, thread depth and actual attachment capability before assembly.

Selection checklist

Complete model and confirmed envelope

Magnetic mounting surface and contact conditions

Top M6 connection

Orientation and loading requirements

Quantity and included components

To be confirmed

62/63 mm depth discrepancy and tolerances

Material and finish

Thread pitch, depth and included hardware

Holding force, loading and test conditions

Procurement and technical information

Select a model so we can confirm pricing, availability, lead time, and required documents.

Procurement method

Formal RFQ by model

Lead time

Confirmed after model and quantity review

Technical documents

Request drawings and specifications with your RFQ

Typical applications

Laboratory assembly
Instrument component mounting
Adjustment or support component selection
