XINDA-OM-BC-010
ZGD U- and H-Style Slotted Optical Post Mounting Bases
Four source-defined geometries, 25.4 mm width, 10 mm height, and an M6 counterbored mounting hole
- Straight H/HL and rounded-end U/UL slotted-base formats
- All four geometries are source-listed at 25.4 mm wide and 10 mm high
- M6 counterbored mounting-hole label
- Available models
- 8 standard models
- Lead time
- Confirmed after model and quantity review
- Purchase method
- RFQ by model
Reference price
$13.94 - $150.52
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.

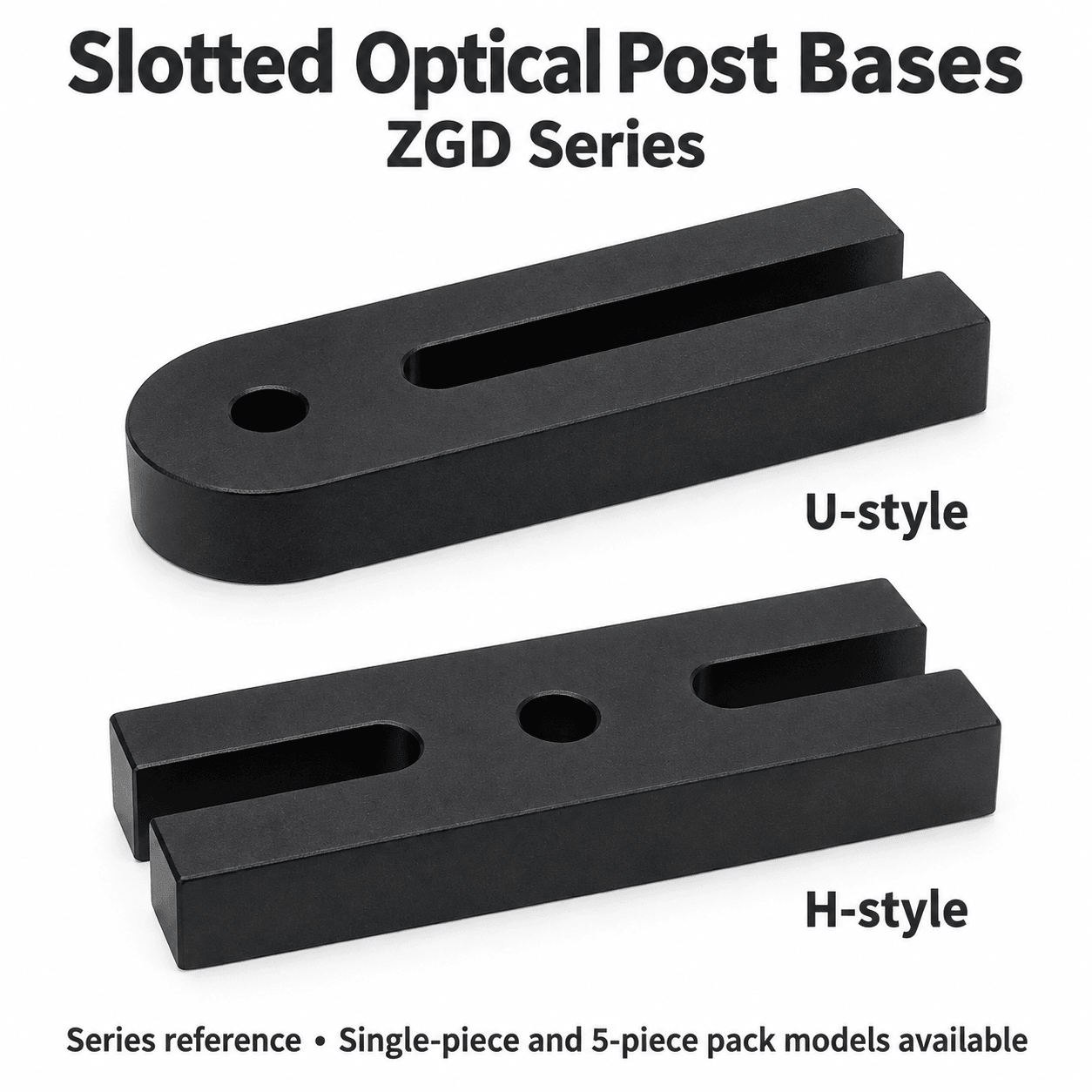

ZGD bases connect post holders or other components through the post mounting hole and attach to a platform using open-ended slots. U-style bases have one open slot and a rounded end; H-style bases have opposed open slots. The source dimension table and all eight individual cards establish four length configurations and their five-piece pack options.
Shape and dimensions
U-style ZGD-U has length L1 of 58.5 mm and ZGD-UL of 76.2 mm. H-style ZGD-H has length L of 75 mm and ZGD-HL of 115 mm. All table rows give width W as 25.4 mm and height H as 10 mm. U-style L2 and L3 are distances between different drawing endpoints, not usable sliding travel.
Mounting hole and open slots
Mounting hole A is described as a recessed M6 mounting hole, not an M6 tapped hole. The source describes securing the base with an M6 screw and washer. Confirm screw-head style, length, platform thread and slot clearance. The open slots allow entry from the edge; adjustment depends on platform hole position, washer geometry and contact area.
Pack quantity
ZGD-U-5, ZGD-UL-5, ZGD-H-5 and ZGD-HL-5 are explicitly identified as five-piece packs in both the dimension table and model photographs. Pack quantity does not change individual base dimensions. Stacked photographs do not depict a single thicker base. Confirm included screws and washers against the supply list for each model.
Material and selection
Photographs show a black surface, but the inspected sources do not identify material grade or finishing process. Specify the complete model, pack quantity, platform hole pattern and post-holder connection. Dimensional tolerances, recess depth, allowable torque, load capacity and positioning accuracy are not supplied; promotional descriptions do not establish these specifications.
Selection checklist
U or H style and length
Individual or five-piece pack model
Post mounting hole and screw-head style
Platform spacing, washer and contact area
Included accessories
To be confirmed
Material and finish
Dimensional tolerances and recess depth
Usable adjustment travel
Allowable torque, loading and positioning accuracy
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
Typical applications
- Adjustable mounting between post hardware and an optical table
- Open-slot installation in laboratory optical layouts
- Selection between bidirectional H slots and a single-ended U slot
- Single-piece evaluation or five-piece procurement
Product highlights
- Straight H/HL and rounded-end U/UL slotted-base formats
- All four geometries are source-listed at 25.4 mm wide and 10 mm high
- M6 counterbored mounting-hole label
- Matching five-piece pack rows retain the same mechanical dimensions
