XINDA-OM-BC-006
ZGH-DK Ø25 mm and Ø38 mm Pillar Post Spacers
Stainless-steel height spacers with a Ø6.7 mm center clearance hole and 35 thickness options from 0.1 mm to 20 mm
- Ø25 mm and Ø38 mm stainless-steel spacer formats
- Ø6.7 mm center clearance hole for fastener access
- Ø25 mm group from 0.1–10 mm; Ø38 mm group from 1–20 mm
- Center clearance hole
- 6.7 mm
- Material
- Stainless steel
- Available models
- 35 standard models
Reference price
$11.15 - $30.66
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.
ZGH-DK circular spacers add a selected thickness within an optical post connection. All 35 individual model cards label outside diameter and thickness: 21 thickness options at 25 mm diameter and 14 at 38 mm. The central hole is a screw clearance hole, not a threaded adapter connection.
Diameter and thickness options
The 25 mm cards list thicknesses of 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 7, 8, 9 and 10 mm. The 38 mm cards list 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 15 and 20 mm. Choose a complete model; the series range does not imply every intermediate thickness is available.
Clearance hole and connection
The source feature image specifies a 6.7 mm central clearance hole, and the product name describes use with an M6 screw. The hole is not tapped M6. Check screw length, engagement and contact area. Adding a spacer changes assembly height and requires the fastening connection to be checked again. Hole tolerance and entry-chamfer dimensions are not supplied.
Material and dimensional evidence

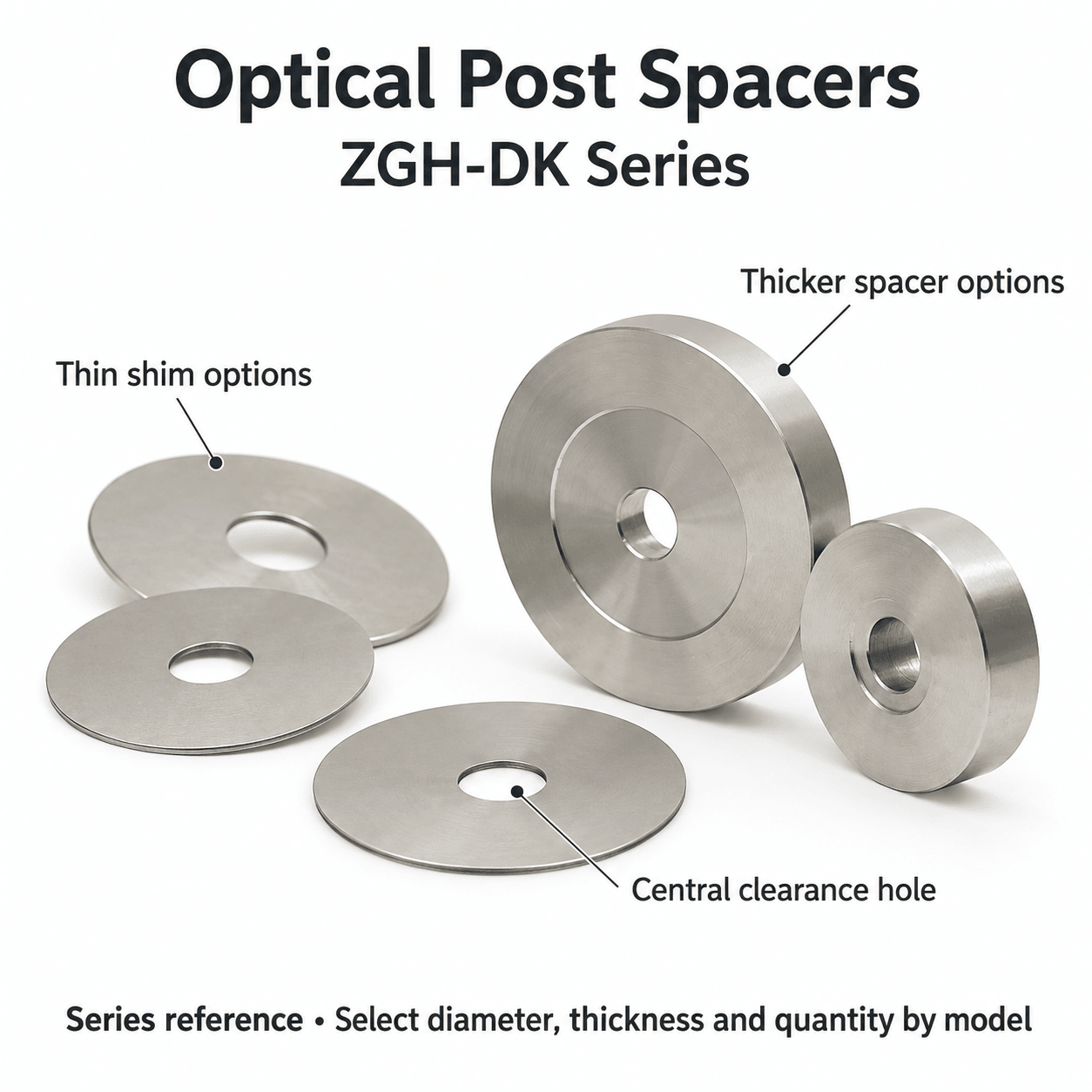

The source describes stainless steel with chamfered edges. It does not specify grade, finish, flatness, parallelism or thickness tolerance. Dimensions come from labeled product photographs, not inspection reports or toleranced engineering drawings. Thin shims and thicker spacers differ in appearance; the series image is a structural reference.
Ordering and supply
Specify the complete model, outside diameter, thickness, quantity and application. Multiple spacers shown together illustrate the range and do not define a complete or mixed pack. Posts, screws and platforms are not included automatically. Confirm supply terms and assembly stability for stacked spacers or custom dimensions.
Selection checklist
Complete model
25 or 38 mm outside diameter
Selected thickness and quantity
Screw length and assembly height
Contact area and supply scope
To be confirmed
Steel grade and finish
Flatness, parallelism and thickness tolerance
Hole tolerance and chamfer dimensions
Loading and stability of stacked assemblies
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
Typical applications
- Discrete height correction beneath optical pillar posts and bases
- Height matching across multiple optomechanical support points
- Base clearance and mounting-plane adjustment on breadboards
- Custom-thickness, diameter, or bore spacer RFQs
Product highlights
- Ø25 mm and Ø38 mm stainless-steel spacer formats
- Ø6.7 mm center clearance hole for fastener access
- Ø25 mm group from 0.1–10 mm; Ø38 mm group from 1–20 mm
- 35 source-listed thickness options for discrete height correction
Common specifications
- Center clearance hole
- 6.7 mm
- Material
- Stainless steel
