Coplanar Baffle Panels and Modular Joining Strips

This source lists 19 baffle panels by height and length, four flat joining strips and three right-angle joining strips, for 26 SKUs. The main image identifies aluminum-alloy panels. Application photographs show straight joints, corner arrangements and bent mounting flanges. Size labels omit units; no individual SKU images or formal engineering drawing are available. This source has no custom option, screwdriver or right-angle strip labeled 500 high.

Panels and joining strips

Panel labels are height 100/length 100; height 200/length 100, 200, 300, 400, 500 or 600; height 300/length 300, 400, 500, 600 or 900; height 400/length 300, 400, 500 or 600; and height 500/length 300, 400 or 500. Flat strips have height labels 200, 300, 400 and 500; right-angle strips only 200, 300 and 400. Numbers retain the source wording; millimeters and unlisted sizes are not inferred from other ranges.

Mounting arrangement

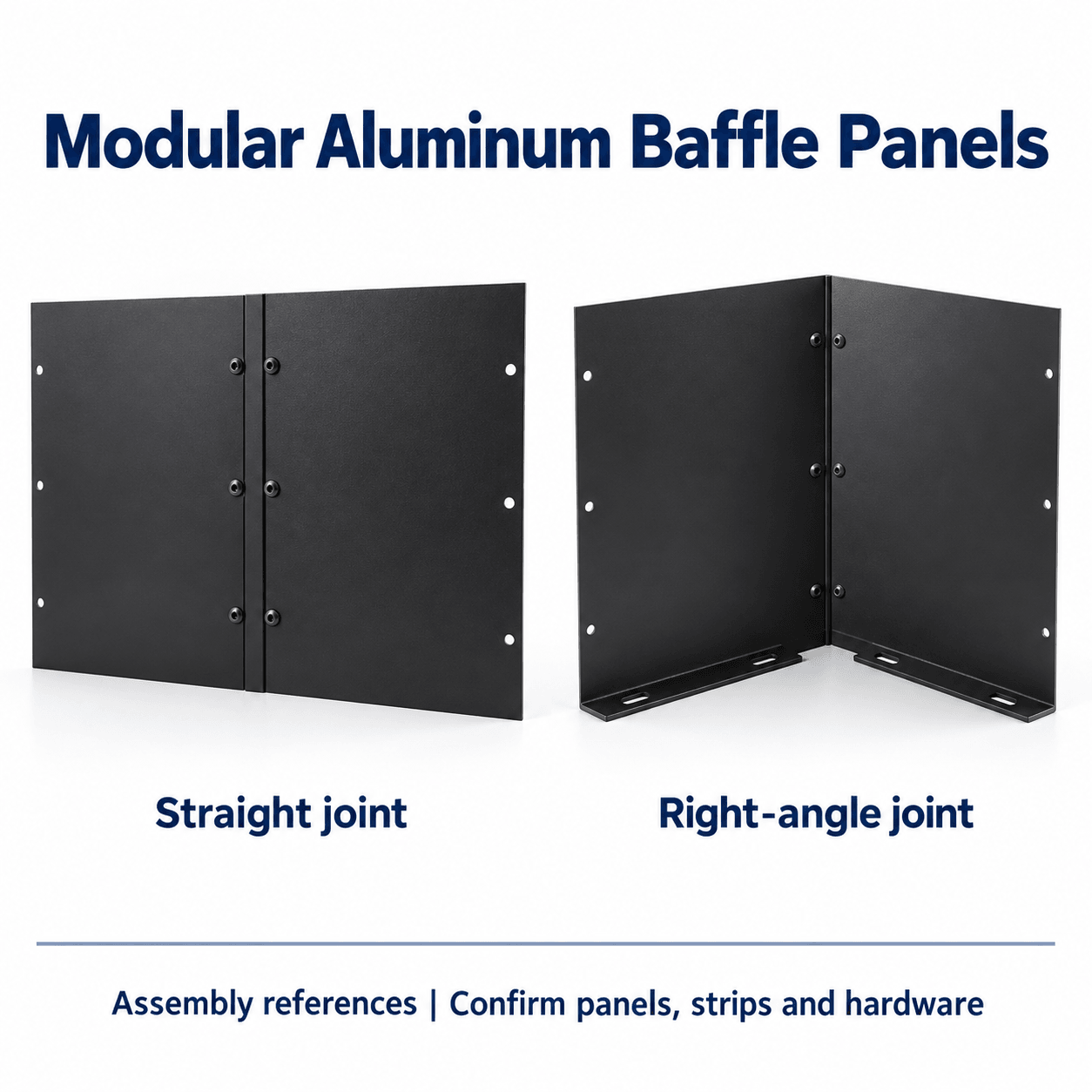

Photographs show bent panel flanges, base mounting slots, side joining holes and joint fasteners. Straight joints extend a baffle surface; right-angle joints create corners. No drawing establishes hole or slot dimensions, threads, spacing, flange width or angular tolerance. Confirm strip-to-panel fit. The example bench, multiple panels and fasteners do not establish a complete kit for a single SKU.

Material and joining arrangement

The main image describes high-strength aluminum-alloy panels, without alloy grade, thickness or numerical strength. These three source images do not specify sandblasting, anodizing or a front/back two-piece pack; those attributes are not copied from similar products. Confirm joining-strip material, finish, piece count, screw quantity and supplied contents.

Operating limits

A black appearance and protective-baffle product name do not establish material grade, coating, optical absorptance or a laser protection rating. Wavelengths, power limits, damage threshold, optical density and protective certification are unspecified. Confirm the structure for the required coverage and actual laser conditions, together with material, accessories, dimensional units and any custom requirements.

Selection checklist

Panel, flat strip or right-angle strip

Source height/length labels and actual units

Thickness, holes, slots and joint fit

Material, finish and accessory quantities

Required beam-path coverage and operating conditions

To be confirmed

Dimensional units, thickness, holes, slots and tolerances

Aluminum grade, joining-strip material and finish

Screw count, torque, loading and supply contents

Laser operating range, damage threshold and protective certification
