DXW Externally Threaded Brass Bushings

Check specifications and interfaces by original model

Individual original model selections
Original model images retained
Model-specific parameters and interfaces

Available models: 1 standard models
Lead time: Confirmed after model and quantity review
Purchase method: RFQ by model

Reference price

$11.15

Select a model to view availability.

Select models to request a quote

View 1 models

Not sure which model? Get selection help

Models and availability

1 models. Select one or more models for a combined RFQ.

Request the selected models from the action bar without returning to the top.

Select up to 50 models per request

Model	Lead time	Reference price	Selection
DXW-0625-M1010 RFQ	2–7 days	$11.15

DXW-0625-M1010
RFQ
Lead time
2–7 days
Reference price
$11.15

Showing 1 of 1 models

Product overview and selection guidance

Product-family scope, interfaces, selection limits, and supply notes.

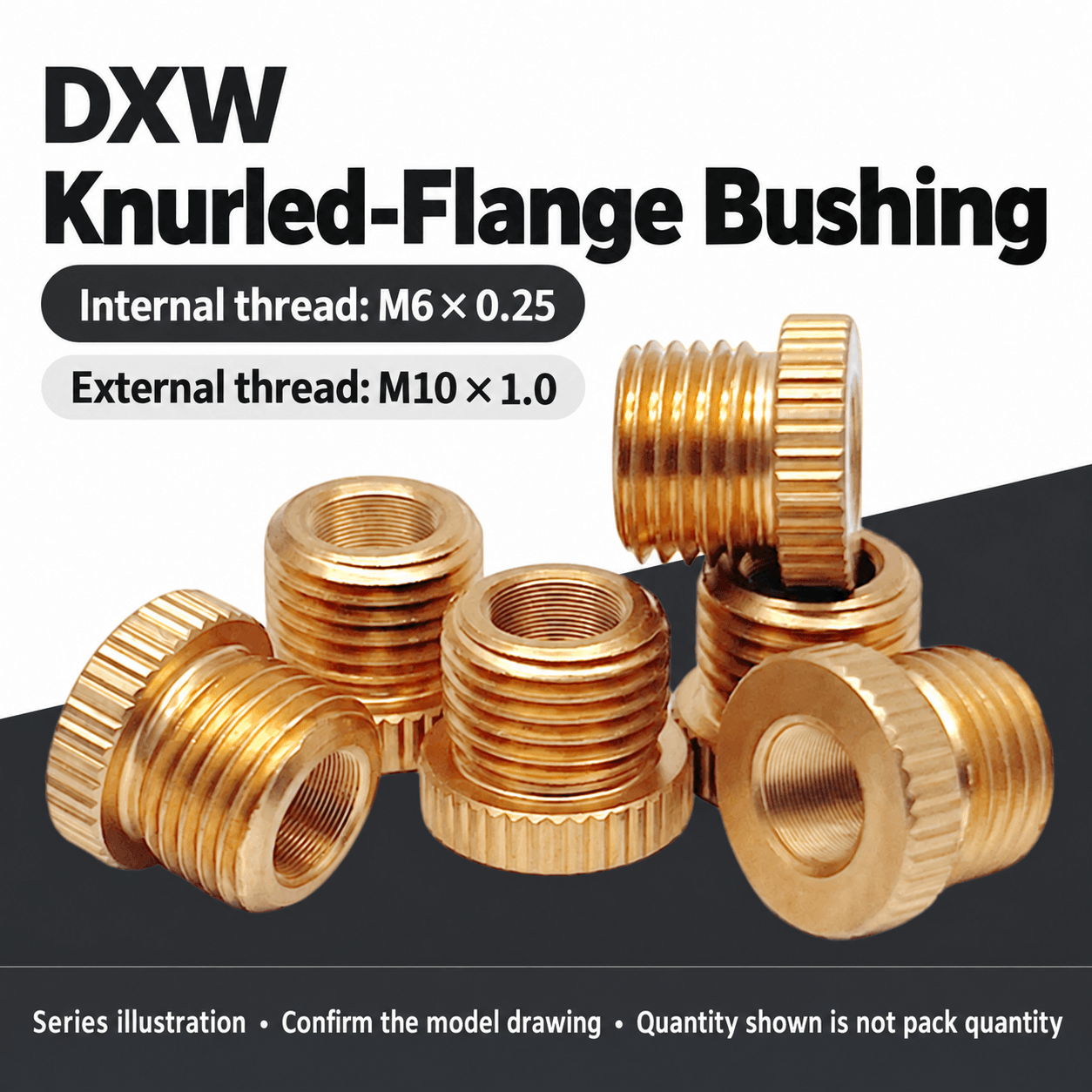

DXW-0625-M1010 is a copper-colored externally threaded bushing with a knurled flange. Its source drawing specifies an M6 × 0.25 internal thread, an M10 × 1.0 external thread, a 12 mm flange diameter, a 7 mm axial section length L1 and a 10 mm overall length L2. This listing has one complete model selection. Several components pictured together do not establish a multi-piece pack.

Thread interfaces

Match internal thread A, M6 × 0.25, to the adjustment screw and external thread B, M10 × 1.0, to the mounting bore. External-thread pitches from other DXW models do not apply to this model.

Drawing dimensions and installation

The source drawing gives C=12 mm, L1=7 mm and L2=10 mm. L1 denotes the illustrated axial section, not a verified engagement length. The flange has a knurled rim; knurl specifications, installation torque and dimensional tolerances are not provided.

Material and operating requirements

The source describes copper construction and the photographs show copper-colored metal. Confirm the alloy, finish and material documentation for the order. Thread pitch is not a system resolution or positioning-accuracy rating. Load capacity, backlash, lubrication and service life depend on the mating screw and mounting structure; these performance values are not verified in the supplied material.

Ordering information

Provide the complete model, quantity, mating screw and installation drawing, together with load direction, operating environment and inspection requirements. A group photograph does not specify a mixed pack. Mating screws, optical mounts and installation services are not included automatically. Confirm custom lengths or interfaces separately.

Selection checklist

Complete model and quantity

Internal thread and external mounting thread

Drawing dimensions and bore fit

Locking or installation method

Material, environment and inspection requirements

To be confirmed

Alloy and surface finish

Thread and dimensional tolerances

Load capacity, backlash and service life

Installation or locking torque

Procurement and technical information

Select a model so we can confirm pricing, availability, lead time, and required documents.

Procurement method

Formal RFQ by model

Lead time

Confirmed after model and quantity review

Technical documents

Request drawings and specifications with your RFQ
