L30T-XY5 Five-Axis Optical Mounts for 30 mm Cage Systems

This family positions optics within a 30 mm cage system. Source annotations explicitly identify XY translation and tilt adjustment, with an XY adjustment range of ±1 mm. The two online SKUs have different optic interfaces: L30T-XY5T uses a 1 inch set-screw opening, while L30T-XY5TS uses an SM1 threaded opening with retaining-ring mounting. Select by optic edge geometry and thickness, mounting depth, rod-hole layout, M4 post connection and adjustment-knob clearance. The five-axis description does not define every axis or provide unspecified angular travel or positioning accuracy. English artwork shows the family structure and does not replace confirmation of the selected interface and engineering dimensions. Confirm supplied rings, optics and installation accessories separately.

Two optic interfaces

The L30T-XY5T photograph explicitly identifies a 1 inch set-screw optic opening. The functional image associates this configuration with a 4 mm mounting depth and M3 optic-retention set screw. L30T-XY5TS explicitly has an SM1 threaded opening, associated with retaining-ring mounting and a 5.5 mm depth. The complete SM1 thread specification is absent and is not borrowed from another family. Mounting depth is not automatically maximum optic thickness; check edges, contact points and ring clearance.

Translation and tilt adjustment

The main image describes five-axis adjustment and explicitly mentions tilt and XY translation. Functional annotations identify M6 fine-thread adjusters for these functions and give an XY adjustment range of ±1 mm. The five-axis description does not define each axis and is not extended into an unspecified Z travel or angular degree of freedom. Adjustment pitch, angular range, resolution, backlash and repeatability are absent.

Cage and post installation

A functional image identifies Ø6 mm rod holes for a 30 mm cage system and an M4 threaded hole for securing the mount. A demonstration shows an M4 connection to a post. The 30 mm value describes the source-listed cage system, not the mount overall size. Check rod and knob clearance, post threading and mounting references. Demonstration rods, posts and holders are not assumed included.

Structure and supplied items

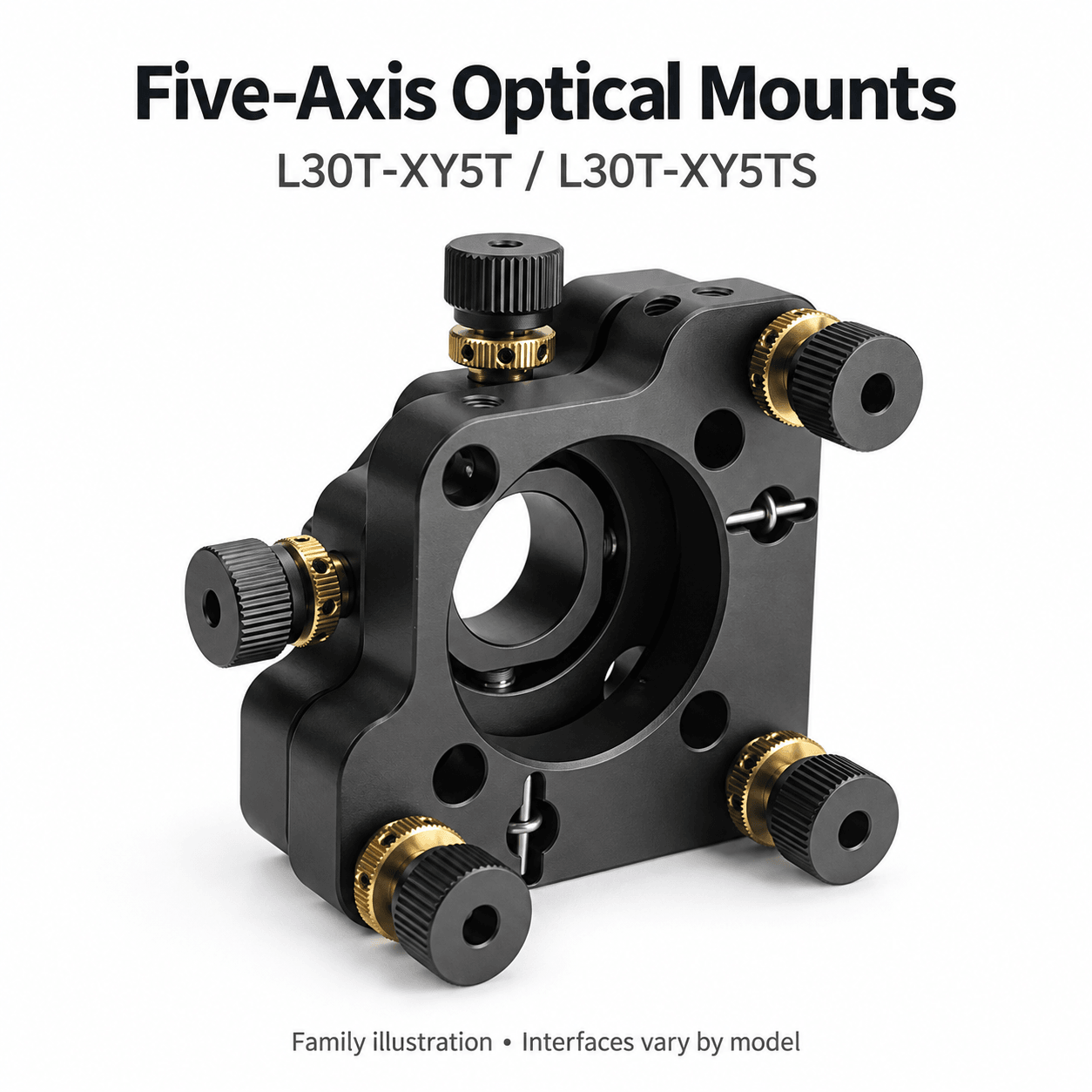

Photographs show a black layered adjustment structure with multiple knobs, but no material grade, coating process, dimensional drawing, load or clamping-force specification is supplied. Select the interface using its dedicated model image; set-screw retention and threaded retaining-ring mounting are distinct configurations. Confirm optics, rings, tools, mounting accessories and actual delivery. English artwork is a family reference only.

Selection checklist

Choose set-screw or SM1 mounting

Check depth, optic thickness and ring clearance

Check cage rods, M4 post and knob clearance

Confirm motion definitions, accuracy and accessories

To be confirmed

Complete SM1 thread and optic-thickness range

Individual axes, angular travel, pitch and accuracy

Material, finish, overall dimensions, tolerances and load

Optics, rings, tools, mounting parts and delivery
