L60T 60 mm Cage Right-Angle Mirror Mounts

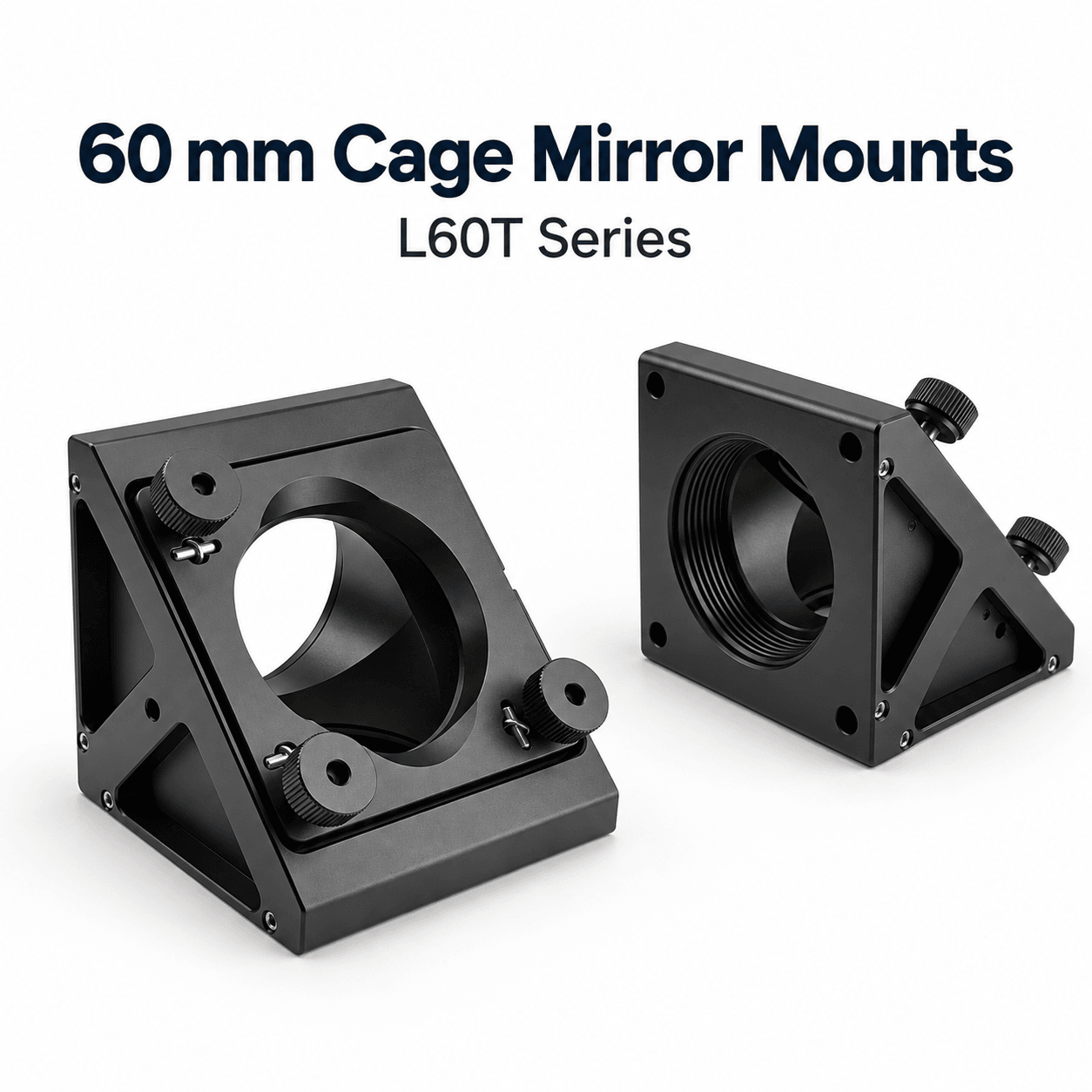

These L60T mounts are pictured for a 45-degree path turn in a 60 mm cage system. An open-web triangular base supports a three-knob adjustable front plate. Five dedicated model images show a 2-inch set-screw optic opening; two show an SM2 threaded port for a matching tube. Do not treat the plain opening and thread as the same interface. Side, rear and cage-rod mounting holes also vary by model and are identified in each diagram. Tubes, rods and optics shown in use scenes are not confirmed as supplied. English artwork illustrates the family.

Optic interface

Five plain-bore diagrams label a “Φ2-inch set-screw opening”; two variants label an SM2 internal thread. Family detail describes SM2 as approximately 2.035 inch-40 and the plain version for a 2-inch optic, mentioning 8.7 mm depth. It does not provide per-model tolerance or guaranteed accepted optic thickness.

Cage and post holes

Dedicated images identify side, rear and cage-rod holes in combinations of M3, M4, M6, 4-40, 8-32, 1/4-20 and 6 mm through-holes. Similar numbers refer to different positions and uses; read the exact model diagram.

Mirror adjustment

Three hand knobs and retaining screws are pictured at the front plate. Angular range, adjuster pitch, backlash, holding force and load are not specified.

What ships

The family application photo includes a tube and cage rods. It illustrates use, not a confirmed single-SKU packing list; verify the optic, tube, rods and hardware separately.

Selection checklist

Choose the 2-inch set-screw opening or SM2 thread

Match side, rear and cage-rod holes in the exact SKU diagram

Check optic thickness and tube/rod compatibility

Request adjustment data and supplied-parts list

To be confirmed

Optic thickness, tolerances and screw contact force

Angular travel, resolution, backlash and load

Inclusion of tube, optic, rods and fasteners

Hole depths and complete hole spacing
