XINDA-OM-BC-004
ZGD-1.0D Stainless Steel Optical Post Base
For 1.0-inch posts, with an M6 counterbored hole
- For 1.0-inch optical posts
- Source-listed 304 stainless steel
- M6 counterbored mounting hole
- Available models
- 1 standard models
- Lead time
- Confirmed after model and quantity review
- Purchase method
- RFQ by model
Reference price
$20.07
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.

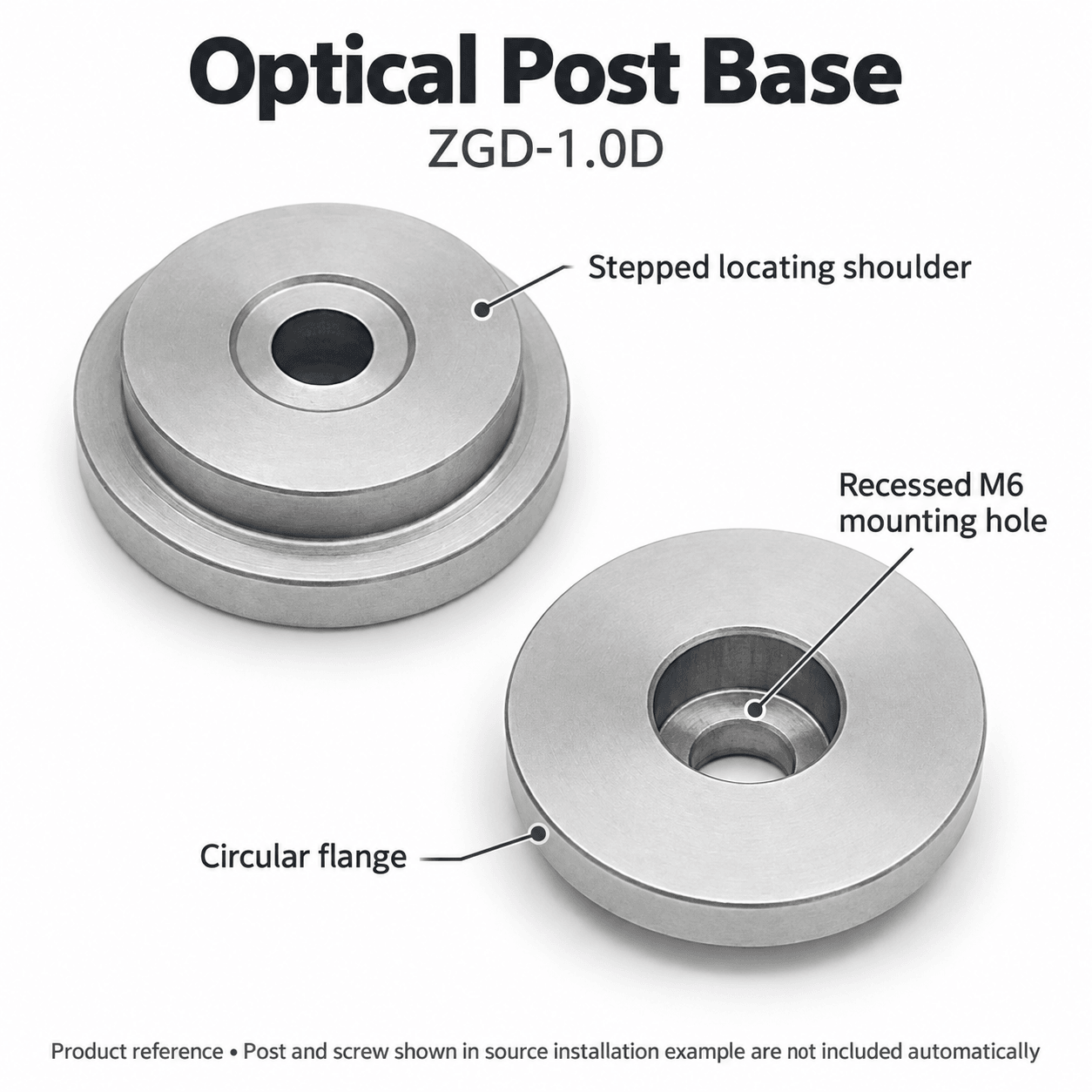

The ZGD-1.0D is a circular stepped base for an optical post. A recessed central mounting hole accepts an M6 screw that connects the base to the post. Source photographs show both faces and an installation example. The post and screw in that example are not automatically included with this base SKU.
Locating shoulder and dimensions
The labeled source photograph gives a 25 mm shoulder diameter, a 32 mm flange diameter and a 10 mm side height. This is a photograph with dimension callouts, not a toleranced engineering drawing. The promotional image mentions one-inch posts, but 25 mm and 25.4 mm are different dimensions. Confirm how the shoulder fits the actual post end.
M6 mounting connection
The source identifies a recessed M6 mounting hole. Its installation example shows a screw passing through the base and threading into the post. Do not treat the base hole as an M6 tapped hole. Recess diameter and depth, through-hole diameter and screw length are not specified. Check the post connection and screw-head style before ordering.
Material and installation
The product name describes stainless steel, and the photographs show a silver machined surface. Steel grade, finish, dimensional tolerances and rated load are not supplied. The base locates and connects to the end of a post; confirm platform attachment and stability for the complete assembly.
Ordering and supply
Specify ZGD-1.0D, quantity, post diameter, bottom thread and platform connection requirements. The installation example explains the connection and does not define a complete post kit. The source invites inquiries about custom sizes; dimensions and supply terms require separate confirmation.
Selection checklist
Complete model and quantity
25 mm shoulder and post-end fit
M6 screw-head style, length and post thread
Platform attachment
Included hardware
To be confirmed
Stainless-steel grade and finish
Recess and clearance-hole sizes and tolerances
Actual fit between a one-inch post and the 25 mm shoulder
Included screw and rated loading
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
Typical applications
- Optical post base fastening
- Optical table support mounting
- Laboratory support assembly
Product highlights
- For 1.0-inch optical posts
- Source-listed 304 stainless steel
- M6 counterbored mounting hole
