XINDA-OM-PS-004
ZGH-25 Ø25 mm Stainless Steel Optical Extension Posts
M4 and M6 end interfaces, a 5 mm transverse torque hole, and source-listed lengths from 12.5 to 500 mm
- Precision-ground stainless-steel post with a source-listed 25 mm diameter
- M4 tapped hole at one end and M6 tapped hole at the other
- 5 mm transverse hole for assembly leverage
- Available models
- 21 standard models
- Lead time
- Confirmed after model and quantity review
- Purchase method
- RFQ by model
Reference price
$13.94 - $245.29
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.

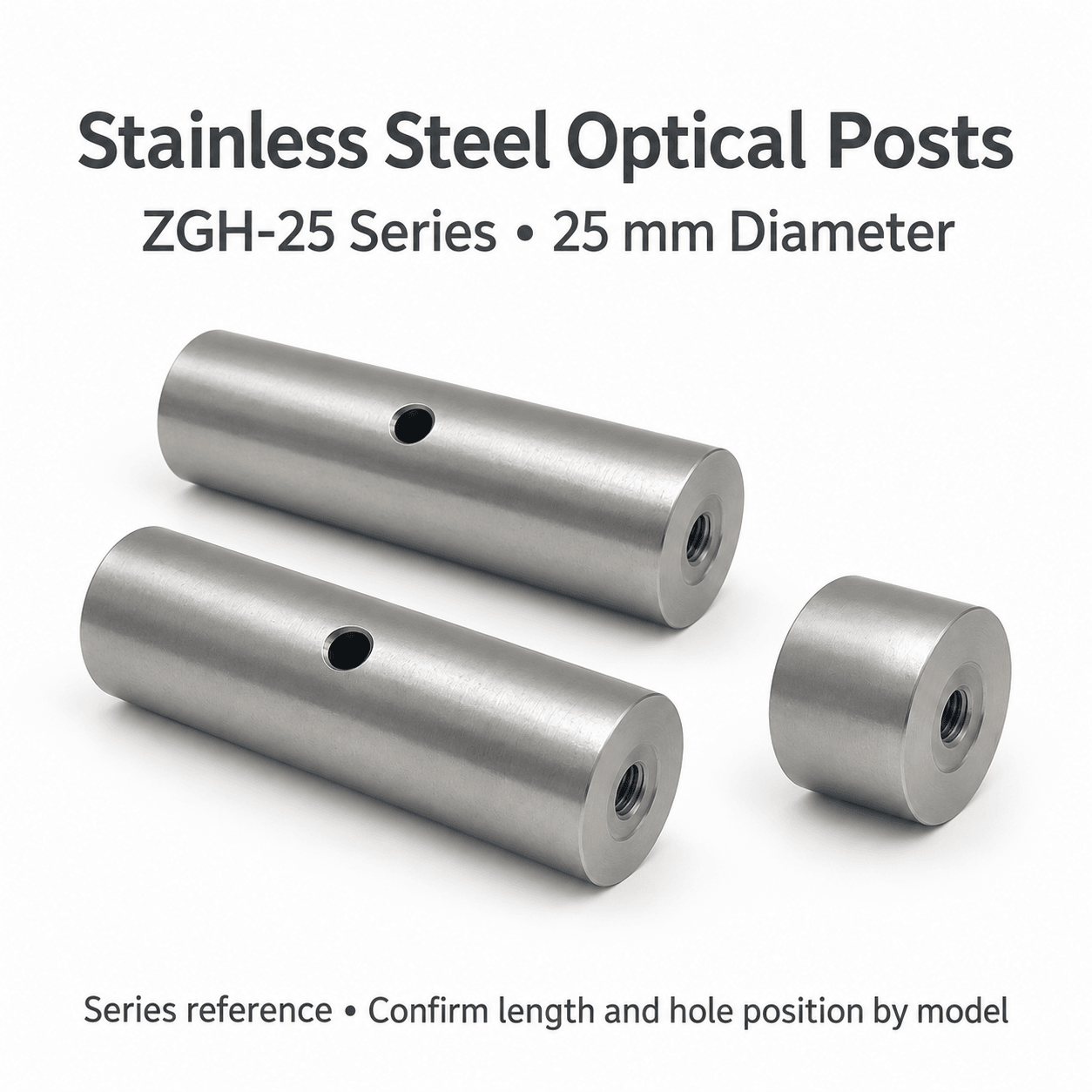

ZGH-25 cylindrical stainless steel posts have a 25 mm diameter and M4/M6 tapped ends. The series description offers one removable stud of each size. An engineering table and 19 individual cards support 21 sales options. Select whole-millimeter and inch-based lengths by complete model; 25 mm diameter does not establish compatibility with 25.4 mm holders.
Length and tool-hole position
Body length L1 ranges from 12.5 to 500 mm, with additional 12.7, 25.4, 38.1, 50.8, 76.2, 101.6, 152.4, 203.2 and 304.8 mm options. The drawing defines L2 as the distance from an end face to the transverse tool-hole center, not hole length or adjustment travel. The shortest 12.5 and 12.7 mm rows leave L2 blank and photographs show no transverse hole; do not transfer the longer-post layout to them.
Evidence gaps
The 250 mm card explicitly labels length, but its row is absent from the engineering table and L2 is not independently confirmed. The 400/500 mm options have L1 and L2 table entries but no individual photographs. Sales label ZGH-25-1 differs from ZGH-25-1.0 on the table and card. The card confirms 25.4 mm length; confirm the supplied model designation.
Interfaces and mounting
The drawing and series text identify M4/M6 tapped ends and a 5 mm transverse through-hole for longer posts. Do not assign that hole to the shortest options. The source offers one removable M4 stud and one M6 stud; confirm the order packing list. Check holder fit, thread engagement and overhang. Thread pitch, hole depth and tightening torque are not supplied.
Material and performance
The source advertises precision-ground stainless steel without grade, roughness, tolerances, straightness or load test data. Series presentation does not define a kit. Holders, bases and optical components are not included automatically.
Selection checklist
Complete model and body length
25 mm holder compatibility
Tool hole and L2 position
M4/M6 interfaces
Quantity and supplied studs
To be confirmed
Material grade, tolerances and roughness
Thread pitch, hole depth and torque
250 mm model L2
Loading and supplied model designation
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
Typical applications
- Fixed-height support for optical mounts and platform hardware
- Beam-height extension and stacked post assemblies
- Laboratory prototypes, inspection fixtures, and teaching setups
- Custom-length support-post RFQs
Product highlights
- Precision-ground stainless-steel post with a source-listed 25 mm diameter
- M4 tapped hole at one end and M6 tapped hole at the other
- 5 mm transverse hole for assembly leverage
- Twenty source-table rows across metric and inch-designated model codes
