XINDA-OM-BC-003
ZGW Through-Bore Holders for 12 mm and 12.7 mm Optical Posts
Aluminum post holders with fifteen source-mapped heights from 25.4 to 150 mm
- Separate bore options for 12 mm and 12.7 mm optical posts
- Through-bore body with an external knurled locking knob
- Source drawing labels a 24.80 mm body and 32 mm flange diameter
- Available models
- 15 standard models
- Lead time
- Confirmed after model and quantity review
- Purchase method
- RFQ by model
Reference price
$50.17 - $107.03
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.
ZGW holders accept an optical post through the mounting bore and secure its position with a knurled side knob. The source dimension table lists 15 complete models: six for 12 mm posts and nine for 12.7 mm posts. Match these bore sizes separately. A common outside diameter does not make metric and half-inch posts interchangeable.
Bore size and model
A denotes the post mounting bore. ZGW-12 models are listed with a 12 mm bore and ZGW-05 models with a 12.7 mm bore. Height H is recorded by complete model, spanning 25.4–150 mm with additional 40 mm and 90 mm selections. Values are transcribed from the table, not decoded from suffixes.
Height and base geometry
The drawing measures H from the top surface of the base to the holder’s top and labels base thickness separately as 5 mm. H is therefore not presented as overall height including the base. The drawing gives a 24.80 mm body diameter, a 32 mm base diameter and a 14 mm knob diameter. Confirm the bottom mounting connection, thread depth and bore-fit tolerances separately.
Clamping and material
The source describes an aluminum-alloy body and a side knob for securing the post. It does not specify alloy grade, finishing process, knob thread or allowable tightening torque. Check insertion depth, contact position, equipment center of gravity and loading. A hand-operated knurled knob is not a verified load-capacity or repeatability rating.
Supply and installation details

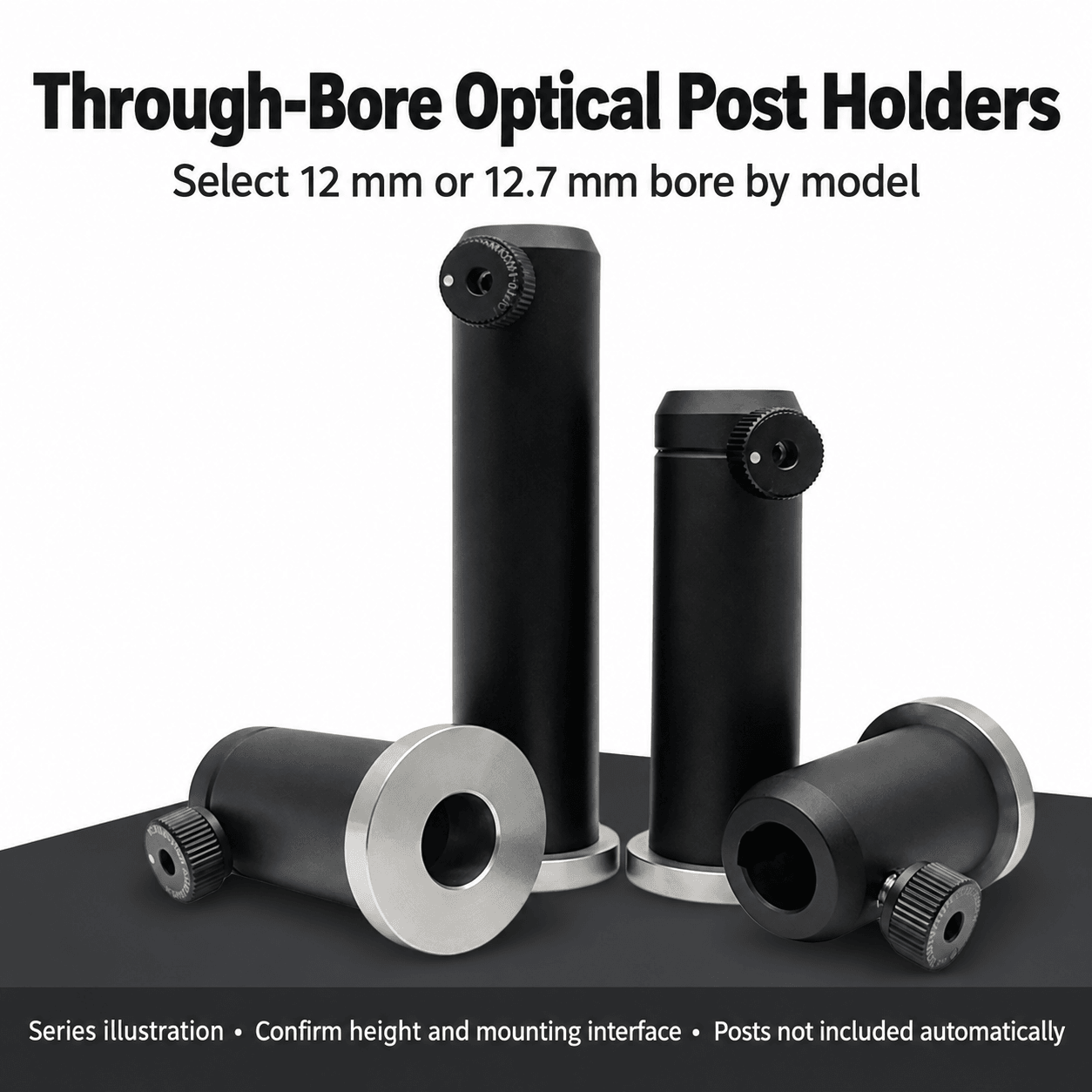

Provide the complete model, quantity, post diameter and length, platform interface and loading requirements. Posts, optical mounts, other bases, platforms and installation services are not included automatically. Different holder heights pictured together illustrate the series and do not define a mixed pack.
Selection checklist
Complete model and 12/12.7 mm post
Height H versus base thickness
Post insertion and side clamping
Platform interface, center of gravity and load
Quantity and included accessories
To be confirmed
Bottom mounting interface and thread depth
Bore fit and dimensional tolerances
Alloy grade, finish and knob thread
Tightening torque, load capacity and repeatability
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
Typical applications
- Coarse optical-post height adjustment and locking
- Post-mounted support for mounts, apertures, and sensors
- Separate metric and half-inch post-system builds
- Laboratory beam paths, inspection fixtures, and prototypes
Product highlights
- Separate bore options for 12 mm and 12.7 mm optical posts
- Through-bore body with an external knurled locking knob
- Source drawing labels a 24.80 mm body and 32 mm flange diameter
- Fifteen model-height records from 25.4 to 150 mm
