XINDA-OM-BC-016
ZGZ 45° and 90° Optical Post Angle Clamps
Fixed-angle and diameter-conversion clamps for Ø12, Ø12.7, Ø20, Ø25, and Ø25.4 mm post combinations
- Source-confirmed fixed 45° and right-angle architectures
- Bore options for common Ø12 mm and Ø12.7 mm optical posts
- Same-diameter and conversion combinations up to Ø25.4 mm posts
- Available models
- 11 standard models
- Lead time
- Confirmed after model and quantity review
- Purchase method
- RFQ by model
Reference price
$25.09 - $83.62
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.

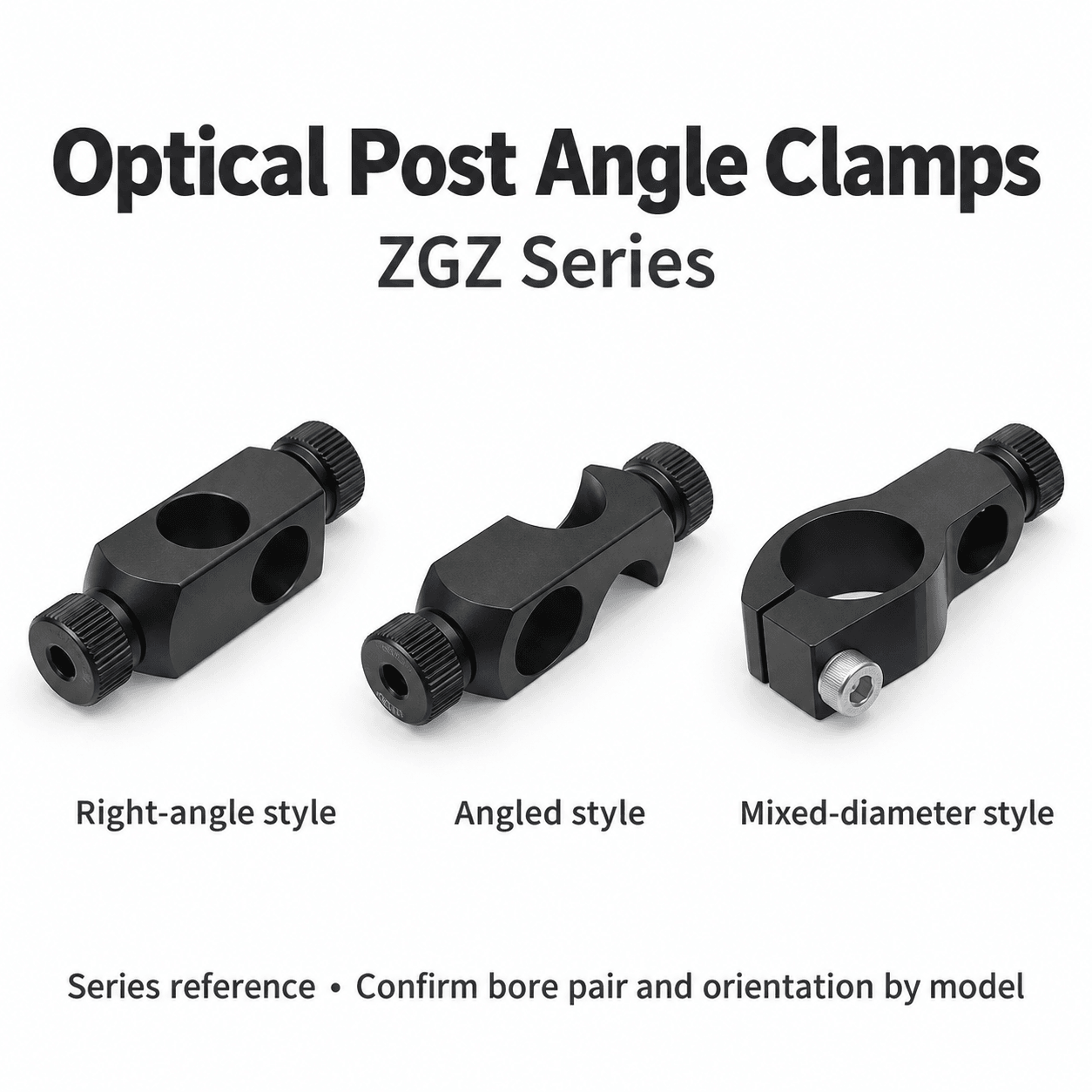

ZGZ adapters connect two optical posts in right-angle, left- or right-hand 45° and mixed-diameter configurations. All 11 individual cards identify the bore pair and installation angle; compatibility is not inferred from model characters. Match 12 mm and 12.7 mm posts separately, as well as 25 mm and 25.4 mm posts.
Equal-diameter models
ZGZ-0.5Z is the 12.7/12.7 mm right-angle option and ZGZ-12Z the 12/12 mm option. The 0.545Z/0.545Y cards show left-/right-hand 45° connections for 12.7 mm posts; 1245Z/1245Y provide the corresponding 12 mm versions. Handedness follows the source installation views. Check the required orientation in the actual assembly.
Mixed-diameter connections
Individual cards identify 25Z12 as 25/12 mm, 0.51.0Z as 25.4/12.7 mm, 20Z12 as 20/12 mm, 0.520Z as 20/12.7 mm and 0525Z as 25/12.7 mm. Each is shown as a 90° connection. The larger bore uses a split clamp and the smaller bore a knob-operated lock; do not assume every interface uses the same mechanism.
Installation and angle evidence
Insert the posts and secure each connection, checking contact position, overhang and equipment center of gravity. Angles are labels on model photographs and installation examples, not angular tolerances or calibration accuracy. Bore tolerances, knob threads, allowable torque, envelope dimensions and load capacity are not supplied.
Material and supply
Photographs show black bodies and knurled knobs but do not identify material grade or finish. Specify the complete model, both post diameters, orientation, quantity and space constraints. Posts, holders, bases and platforms are installation context and are not included automatically. Series images do not define a mixed kit.
Selection checklist
Complete model and bore pair
90° or left-/right-hand 45°
Actual mounting orientation
Post overhang and locking mechanism
Quantity and included components
To be confirmed
Envelope dimensions and bore tolerances
Angular tolerance and calibration accuracy
Material, knob thread and tightening torque
Loading and repeatability
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
Typical applications
- Building perpendicular branches in optomechanical support frames
- Holding a post-mounted component at a fixed 45° direction
- Connecting optical posts and pillar posts of different diameters
- Offset or cantilevered setups with limited breadboard access
Product highlights
- Source-confirmed fixed 45° and right-angle architectures
- Bore options for common Ø12 mm and Ø12.7 mm optical posts
- Same-diameter and conversion combinations up to Ø25.4 mm posts
- 11 source-listed models with independent post-locking knobs
