XINDA-OM-MT-020

ZJR Top-Adjust Two-Axis Flexure Optical Mounts

Flexure adjustment mounts in source optic-size and material variants

  • Two-axis flexure adjustment structure
  • Top-access adjustment layout
  • Source-specific material and optic-size selections
Available models
11 standard models
Lead time
Confirmed after model and quantity review
Purchase method
RFQ by model

Reference price

$278.74 - $613.22

Select a model to view availability.

View 11 models
Not sure which model? Get selection help

Product overview and selection guidance

Product-family scope, interfaces, selection limits, and supply notes.

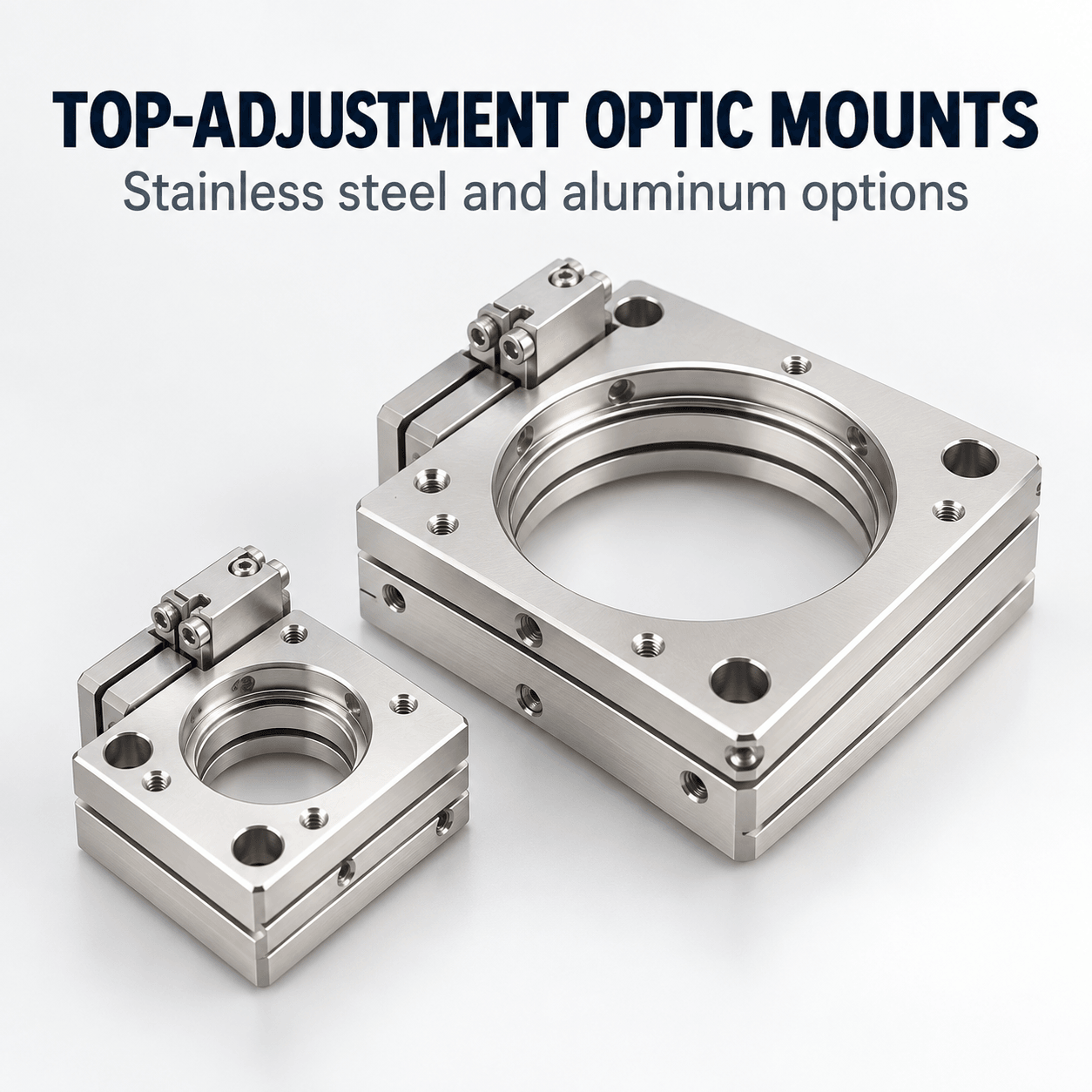

ZJR flexure mounts use a fine-pitch screw above the frame to adjust optic tilt, with a neighboring locking screw to hold the setting. The family images present stainless-steel and aluminum-alloy options. Ten model photographs individually label material, optic-seat diameter and maximum seat depth; an additional online option, ZJR-0.5, has no dedicated photograph and therefore no verified model-level dimensions. The documented seats span 12.7, 20, 25.4, 38.1 and 50.8 mm, with 4 or 5 mm maximum depth depending on model. Images show a soft-tip optic retaining screw, M4×0.25 top adjuster and size-dependent mounting holes. Choose by the dedicated model image and confirm clear aperture, angular travel and included hardware before placing an order. English artwork is a family illustration only.

Material options and source coverage

The five BS model images label stainless steel, while the five S model images label aluminum alloy. Each material series covers seat diameters of 12.7, 20, 25.4, 38.1 and 50.8 mm. ZJR-0.5 appears as an online selection without a dedicated image; its material, diameter and depth cannot be inferred from the name. Material grade and finish are not specified.

Optic seat and retention

Dedicated photographs label a maximum 4 mm seat depth for the 12.7 mm options and 5 mm for the 20–50.8 mm options, with a soft-tip retaining screw. Seat diameter and depth do not define clear aperture or guarantee fit for every optic edge profile. Check optic thickness, chamfer and allowable contact pressure.

Top adjustment and mounting pattern

Family and model images label an M4×0.25 fine-pitch top adjuster and a side locking screw. The 12.7 mm images also identify M2 and M3 threaded holes; larger images show M3 threaded or countersunk holes and an M4 mounting hole. The 20 mm models additionally label a Ø3.4 mm through-hole. Patterns vary by size, and demonstration posts and fixing hardware are not assumed included.

Operating limits and missing data

A photograph demonstrates mounting on a post and adjustment with a hex key but gives no travel, angular range, backlash, load or environmental rating. Request a model drawing and packing list before assembly, especially for ZJR-0.5, which lacks a dedicated source image.

Selection checklist

Match material and documented seat diameter/depth

Check optic edge, clear aperture and soft-tip contact

Confirm post mounting pattern for the chosen size

Obtain ZJR-0.5 specifications and packing list

To be confirmed

ZJR-0.5 seat, material, depth and mounting pattern

Clear aperture and actual optic contact conditions

Adjustment travel, angular range, backlash and load

Material grade, tolerances and included accessories

Procurement and technical information

Select a model so we can confirm pricing, availability, lead time, and required documents.

Procurement method

Formal RFQ by model

Lead time

Confirmed after model and quantity review

Technical documents

Request drawings and specifications with your RFQ
