XINDA-OM-AP-003
ZSB-S Universal Optical Stage Adapter Plates
63.5, 100, and 125 mm square formats with model-specific M2, M3, M4, and M6 interfaces
- Three source-mapped models: ZSB-S63A, ZSB-S100, and ZSB-S125
- Documented 63.5 × 63.5 × 10 mm and 100 × 100 × 10 mm formats
- Model-specific combinations of holes, counterbores, and slots
- Available models
- 3 standard models
- Lead time
- Confirmed after model and quantity review
- Purchase method
- RFQ by model
Reference price
$47.39 - $61.32
Select a model to view availability.
Not sure which model? Get selection helpProduct overview and selection guidance
Product-family scope, interfaces, selection limits, and supply notes.

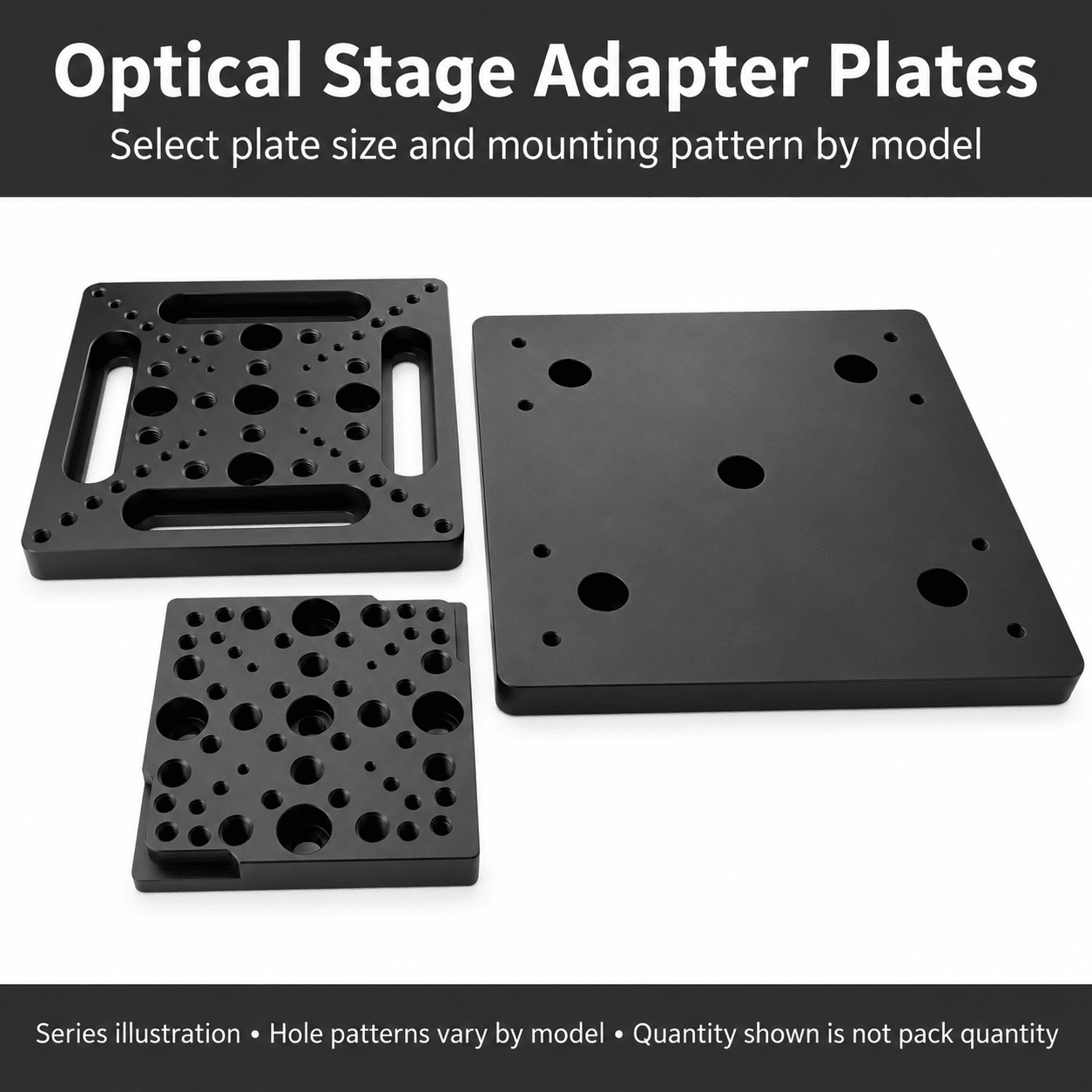

ZSB-S square adapter plates connect optical stages, supports or other mounting components. Each of the three complete models has its own source image with plate dimensions and mounting features. Hole types and counts vary by model. A general-purpose description does not guarantee direct compatibility with every stage.
Plate dimensions and hole types
ZSB-S100 is labeled 100 × 100 × 10 mm and ZSB-S63A 63.5 × 63.5 × 10 mm. ZSB-S125 is labeled 125 × 125 mm; its thickness is not specified in its model image. Check M2/M3/M4/M6 threaded features, M6 recessed mounting holes and recessed slots separately. Nominal thread size or hole diameter does not establish hole spacing.
Source hole-count discrepancy
The dedicated ZSB-S63A image labels 12 M6 through features, while the series photograph labels eight. The SKU notes retain the dedicated model-image annotation and record the conflict; confirm the count and hole-position drawing before ordering. The source also mixes through-hole and threaded-hole wording, which requires a formal drawing to resolve.
Mechanical integration
Provide the stage-top and underlying-platform drawings. Check hole spacing, screw-head clearance, usable engagement, assembly height and adjustment travel. The adapter plate does not add a motion axis or positioning-accuracy rating. The inspected images do not specify material, finish, flatness, rated load or dimensional tolerances.
Supplied items
Order by complete model and quantity, and confirm screws or other included accessories. Front-and-back views and several models shown together do not define a two-piece pack. Stages, posts, optical mounts and installation services are not included automatically.
Selection checklist
Complete model and plate dimensions
Upper and lower interfaces and hole drawing
Threaded features, recessed holes and slots
Screw engagement and motion clearance
Quantity and included hardware
To be confirmed
Conflicting M6 feature counts for ZSB-S63A
Thread definition of source through features
ZSB-S125 thickness and all hole spacing
Material, tolerances, flatness and load capacity
Procurement and technical information
Select a model so we can confirm pricing, availability, lead time, and required documents.
Procurement method
Formal RFQ by model
Lead time
Confirmed after model and quantity review
Technical documents
Request drawings and specifications with your RFQ
Typical applications
- Adapting stages, mounts, and optical-table hole patterns
- Dense mounting surfaces for compact optomechanical assemblies
- Post-supported, direct-thread, and hold-down configurations
- Custom plate-size and hole-pattern RFQs
Product highlights
- Three source-mapped models: ZSB-S63A, ZSB-S100, and ZSB-S125
- Documented 63.5 × 63.5 × 10 mm and 100 × 100 × 10 mm formats
- Model-specific combinations of holes, counterbores, and slots
- Source-shown post support, direct screw mounting, and hold-down plate layouts
